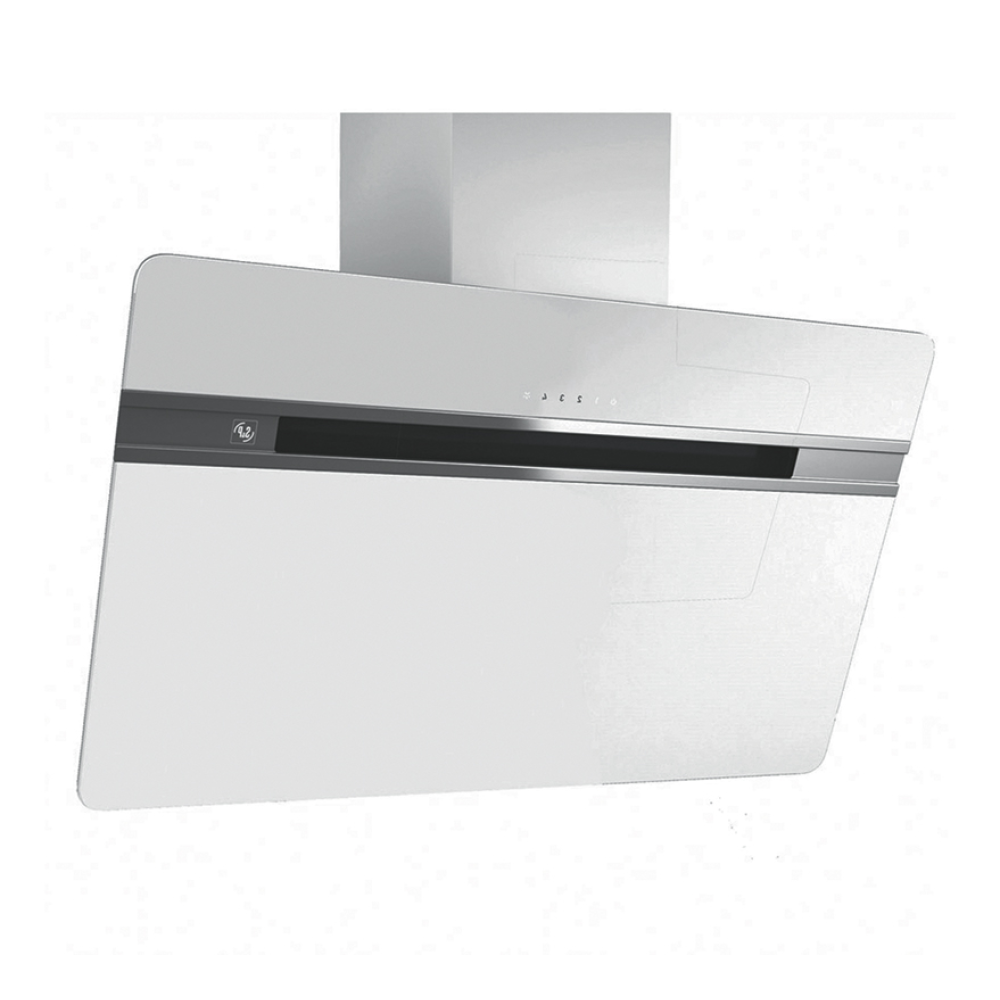

Product description
- choice of three fan speeds
- 15 minutes turbo time in turbo mode for increased exhaust
- lighting: LED 2 × 2.5 W
- professional aluminium grease filter
- back flap on the discharge
- top outlet for connection
- air recirculation through carbon filters (accessories)
- colour design: white
- design: glass
- telescopic chimney
- reduction for discharge pipe DN 150/120
- available sizes (width in mm): 600 and 900
Parameters
| Další | |
|---|---|
| Max. air flow | 757 m³/h |
| Základní údaje | |
| Application | Small kitchens |
| Version | chimney/wall |
| Min. width | 600 mm |
| Max. width | 900 mm |
| Připojení | |
| Connecting pipe diameter | 120/150 |
| Elektrické parametry | |
| Power supply | 230 V |
| Maximum current | 1,15 A |
| Energy efficiency | D |
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
