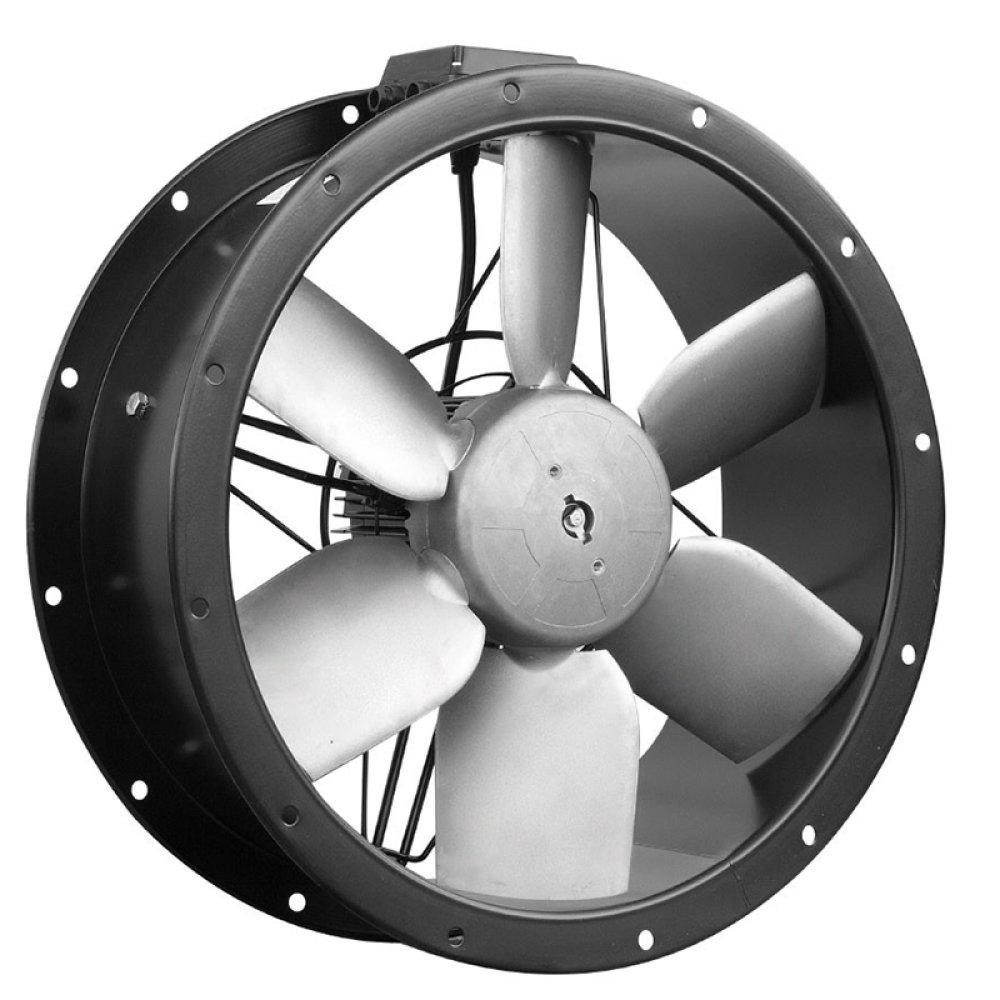

Cabinet
It is made of steel sheet, coated with black lacquer, mounting brackets and screws are electroplated.
Running wheel
is made of aluminium alloy (6-400) or aluminium plate pressed directly on the motor (4-400). The rotation of the blades is set by the manufacturer. The impeller is statically and dynamically balanced according to ISO 1940.
Motor
is asynchronous with short armature, external rotor and start-up capacitor (4-400) or with resistive armature and stator with cooling fins (6-400). TCBB fan motors are 1-phase for 230 V, TCBT are 3-phase for 230/400 V. Permanent operating temperature -40 to +40 °C. Grease-filled ball bearings for lifetime. IP54 protection.
Speed control
is carried out by electronic and transformer regulators by changing voltage or frequency converters.
Rotation direction
can be changed for single-phase and three-phase motors. With a standard impeller, the flow rate drops by approx. 30% when the direction of rotation is reversed. It is possible to order an impeller for the opposite direction of rotation. Air flow is standard from the impeller to the motor.
Clamps
is made of black plastic as standard. In the single-phase version it also contains a start-up capacitor. The terminal block is located on the cabinet.
Mounting
Fan in each motor axis position. The cabinet must not transmit mechanical stresses from the piping. A flexible connection to the piping must be used.
Noise

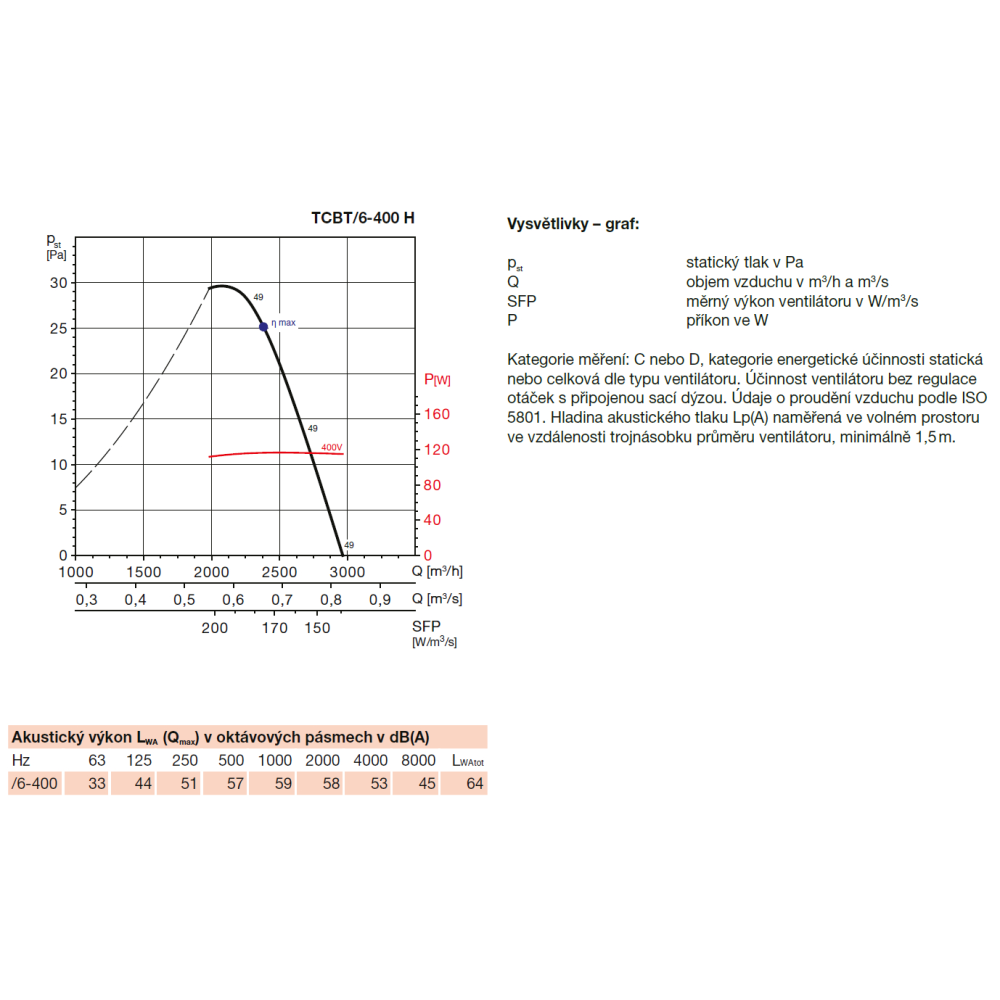

indicated in the performance characteristics correspond to the free-field sound pressure values at a distance of three times the impeller diameter (minimum 1,5 m).
Instructions
The COMPACT series fans are high-performance fans with a convenient short housing for installation in the ductwork.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
