FRM radial fans with direct drive

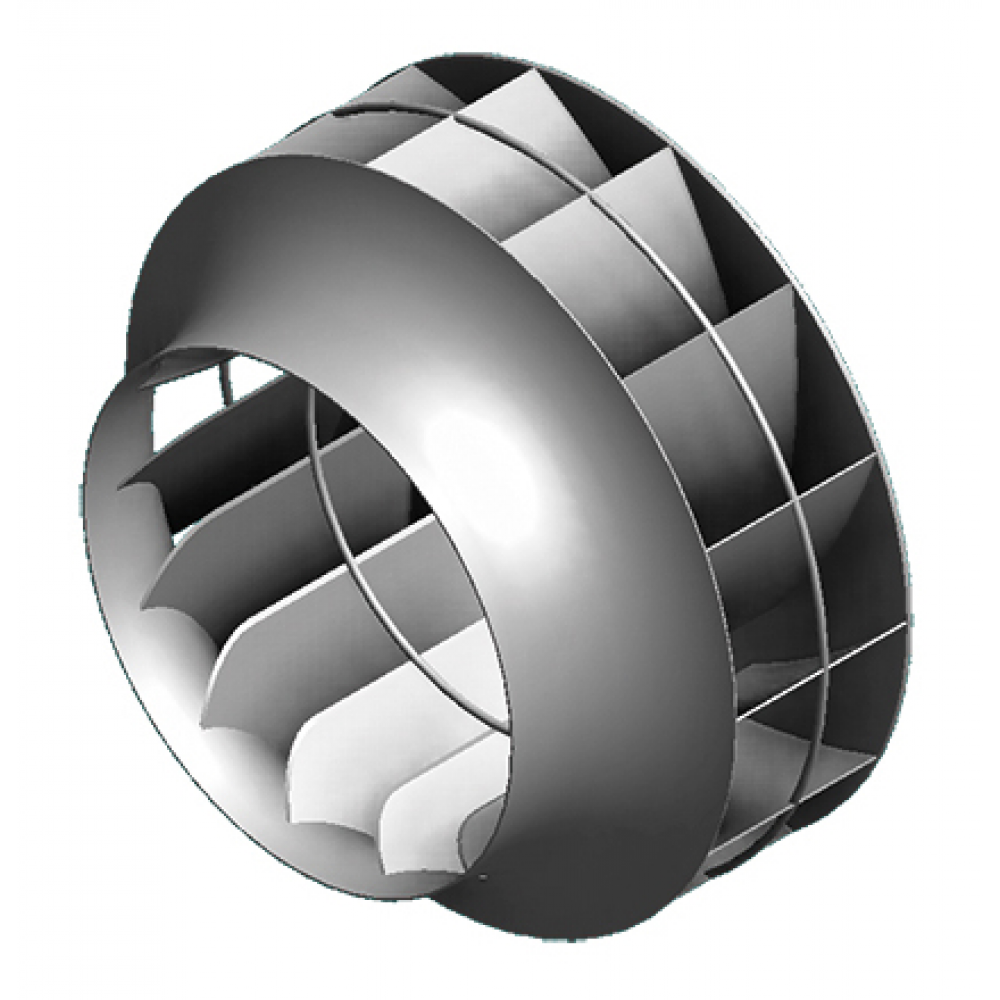

impeller with backward curved blades

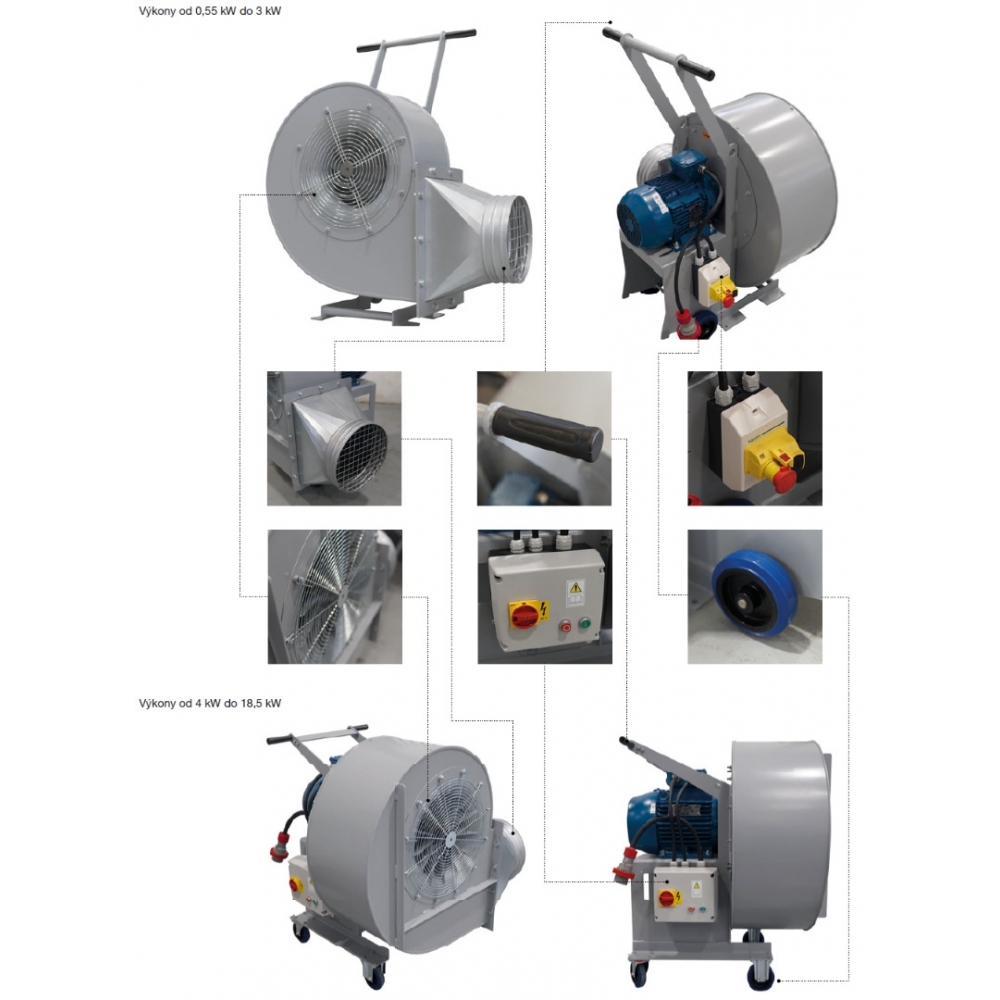

trigger panel
FRM fans

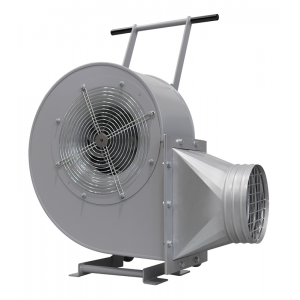

radial fans with backward curved blades in straight version
Read more
price on request
Availability: on request [4.5.2024, 00:00] Update

Add to project
Share
Goods cannot be ordered online.
Contact our sales specialists
or visit our branches.

Add to project
Share
Product code:
Product description

Radial fans with backward curved blades in straight design. Made of carbon steel protected against corrosion with cataphoresis primer and polyurethane RAL 7045 finish.

Standard design
Design 4: Straight. Impeller directly mounted on the motor shaft. The B3 motor is supported by a stool. Max. conveyed air temperature is 100°C.
All fans are supplied in RD270 orientation only, with handles and wheels for repositioning, with transition to circular duct on discharge and grille on discharge.

Motors
Motors 2 pole, high efficiency, three phase 230/400 V/50 Hz up to and including motor size 112 and 400/690 V/50 Hz for larger sizes. Protection class IP55, insulation class F.

Constructions

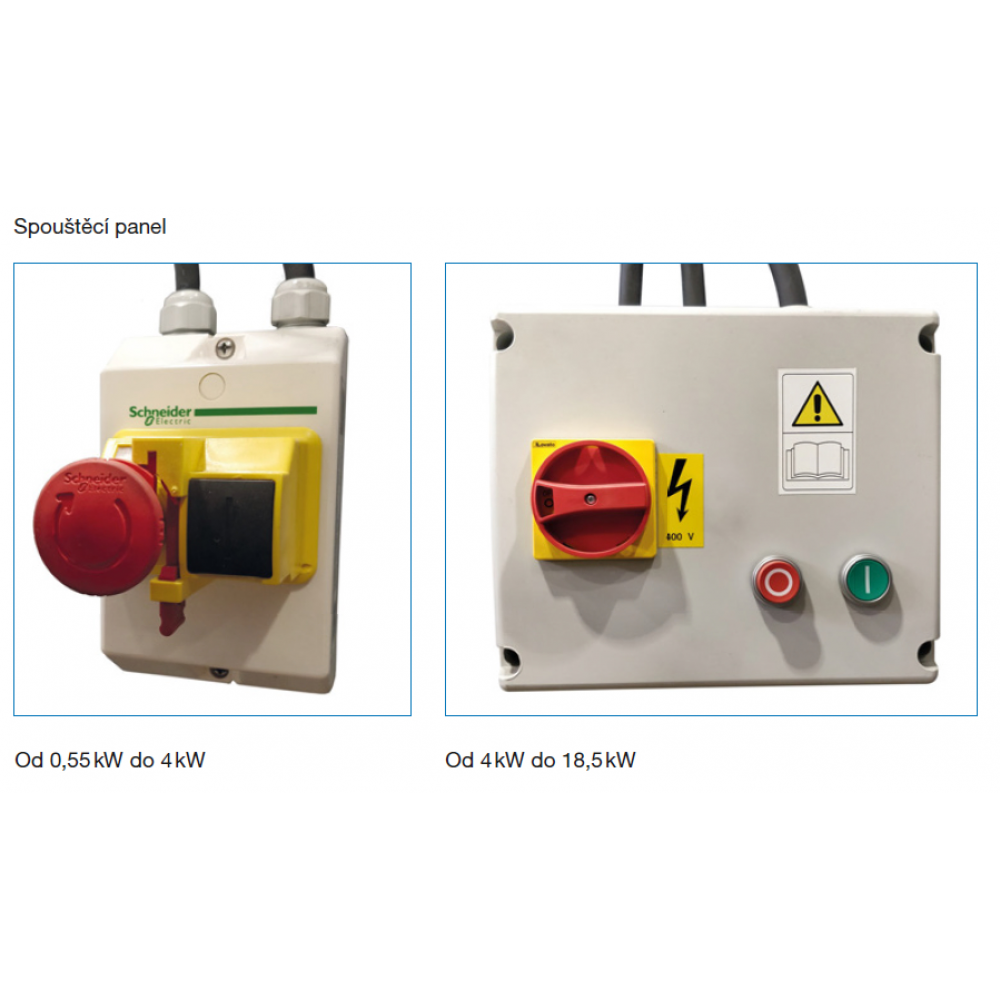

The fan is supplied with or without a start panel. The panels are designed for 400 V connection.
For outputs of 0.55 to 4 kW, starting is done by direct connection, for outputs of 5.5 to 18.5 kW by star-delta connection.

Full description
Downloads
Technical sheets, manuals and declarations
Informative leaflet .pdf (2.90 MB)
Instructions .pdf (4.40 MB)
Overview leaflet - Ferrari industrial fans .pdf (1.12 MB)
