Product description
Casing
is made from durable, reinforced plastic. The external, subtle composite façade grille is matt white. The part of the unit containing the heat exchanger allows for installation in walls with a thickness of 250–500 mm. The interior of the unit is fitted with a designer front cover featuring sound-absorbing insulation and a control damper.
Fans
The unit is fitted with a reversible axial fan with a 12 V DC motor powered by the controller and is designed for continuous operation.
Motor
Motor protection rating IP22, operating temperature -20 to +60 °C.
Regeneration
Regenerative heat exchanger made of ceramic material. Average thermal efficiency is up to 81.6 per cent (maximum up to 93 per cent). For easy maintenance and servicing, the heat exchanger is accessible after removing the inner part of the unit and the fan assembly.
Filters
A G3-class filter (ISO coarse 45 per cent) is fitted on the external side of the ceramic heat exchanger and on the internal grille.
Replacement filters:
• AFR-PULSE 160 KIT G3
Control
The PULSE CONTROL PRO controller with an integrated humidity sensor is not supplied as standard with the unit. The controller must be ordered separately, or alternatively the PULSE 160 SET (unit + controller). The unit will not operate without the controller. A single controller can operate up to 6 PULSE 160 units. The controller is powered by a 230/12 V power supply unit. The controller can be used to switch between 4 fan speeds or to set the following operating modes:
- Eco – dual-unit operation, where the units alternate the direction of airflow every 50–70 seconds depending on the fan speed; heat recovery is ensured
- Full-blast – operation in a single airflow direction only, allowing for thorough ventilation of the room; heat recovery is not possible
- Automatic mode – fan speed is adjusted automatically by a humidity sensor; this control ensures optimum air quality in the room
- Sleep mode – the unit stops operating for 1 hour to allow people in the room to fall asleep; after this time, the system will resume the previously activated mode
Installation
The unit may only be installed with the heat exchanger body in a horizontal position, with a minimum slope of 1 per cent towards the outside of the wall. The long connection extension (500 mm), which contains a ceramic heat exchanger, fan and filters, can be adjusted to suit the wall thickness. The unit’s unique design ensures easy maintenance and cleaning.
Accessories
• PULSE 160-T500 – 500 mm installation duct
• PULSE 160-T700 – 700 mm installation duct
• PULSE 160-W – concealed façade element (white)
• PULSE 160-WA – concealed façade element (anthracite)
Information
The unit is suitable for new builds or refurbishments. Thanks to its alternating operation and the accumulation of energy from exhaust air within the ceramic heat exchanger, there is no excessive heat loss caused by the supply of fresh, cold air. The unit can be fitted with components for installation within window reveals.
Note
The PULSE 160 ventilation unit is the ideal solution for replacing non-functional, previously installed 160 mm diameter fans in existing installations (without the need for additional building alterations, electrical wiring or condensate drainage).
The PULSE 160 heat recovery unit is part of the ‘New Green Savings’ programme under code SVT31575.

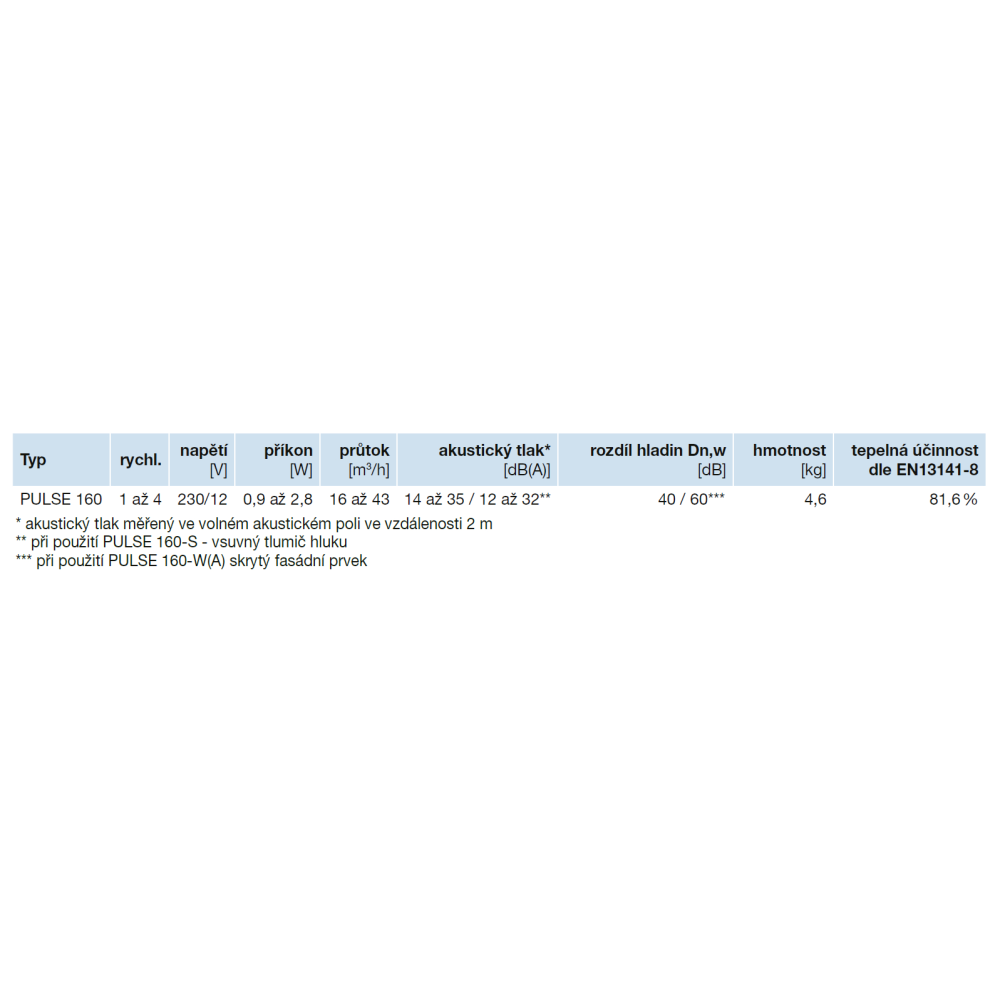

Parameters
| Základní údaje | |
|---|---|
| Motor type | EC |
| Version | Wall |
| Exchanger | Alternating regenerative |
| Připojení | |
| Diameter of the connection throats | 160 mm |
| Elektrické parametry | |
| Power supply | 230 V |
| Ingress Protection | IP22 |
| Maximum power consumption | 3 W |
| Další | |
| Weight | 4,60 kg |
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
