easy attachment to circular or square pipe
Antibacterial sanitation module for air ducts, heat recovery units and filter cartridges to minimize contamination of interior walls.
Read more
B2B clients will see their prices after logging in
18 262,00 CZK excl. VAT
22 097,02 CZK incl. VAT
Availability: on request [9.5.2026, 16:10] Update

Add to project
Share
Goods cannot be ordered online.
Contact our sales specialists
or visit our branches.

Add to project
Share
Product code: BR350100010
Product description
Product description

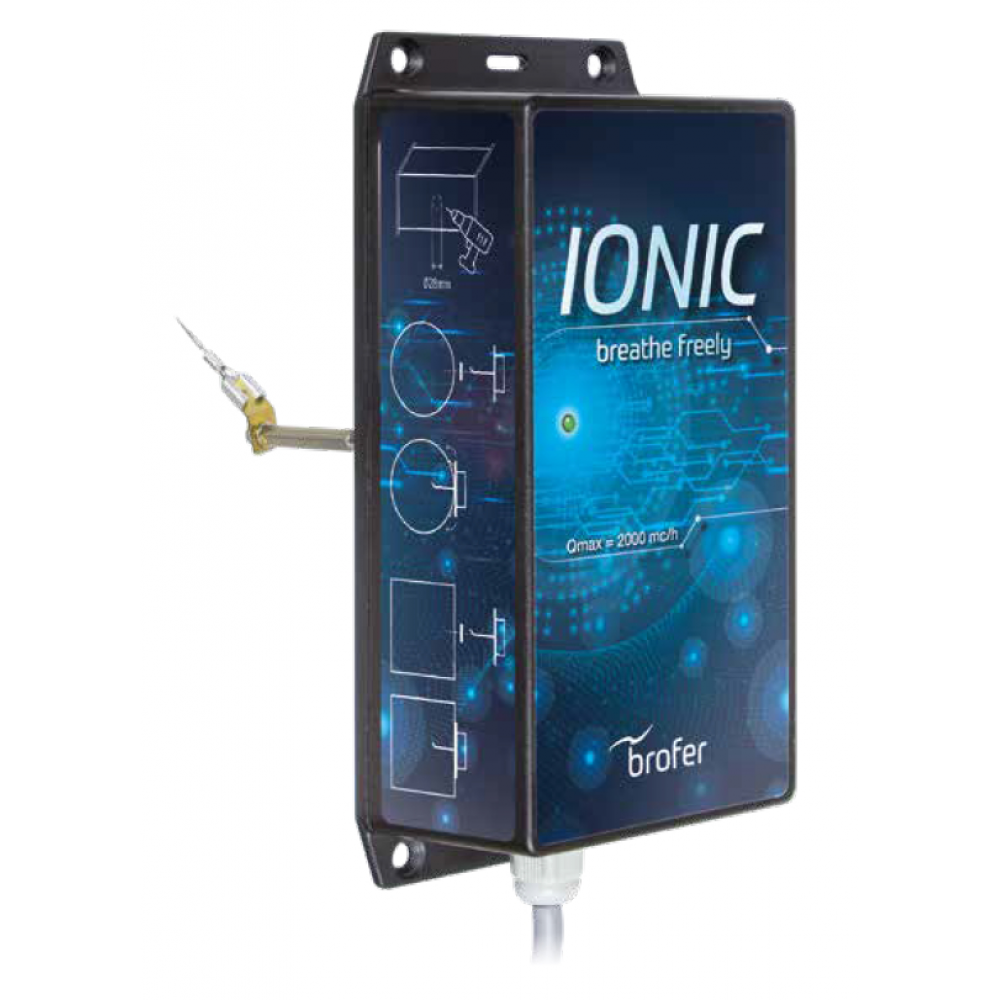

IONIC antibacterial sanitation module for air ducts, heat recovery units and filter cartridges to minimize contamination of internal walls in air handling systems. IONIC emits negative ions and eliminates viruses and bacteria present in the air handling system.

- low operation and maintenance costs
- suitable for new and existing HVAC systems
- near zero pressure drop

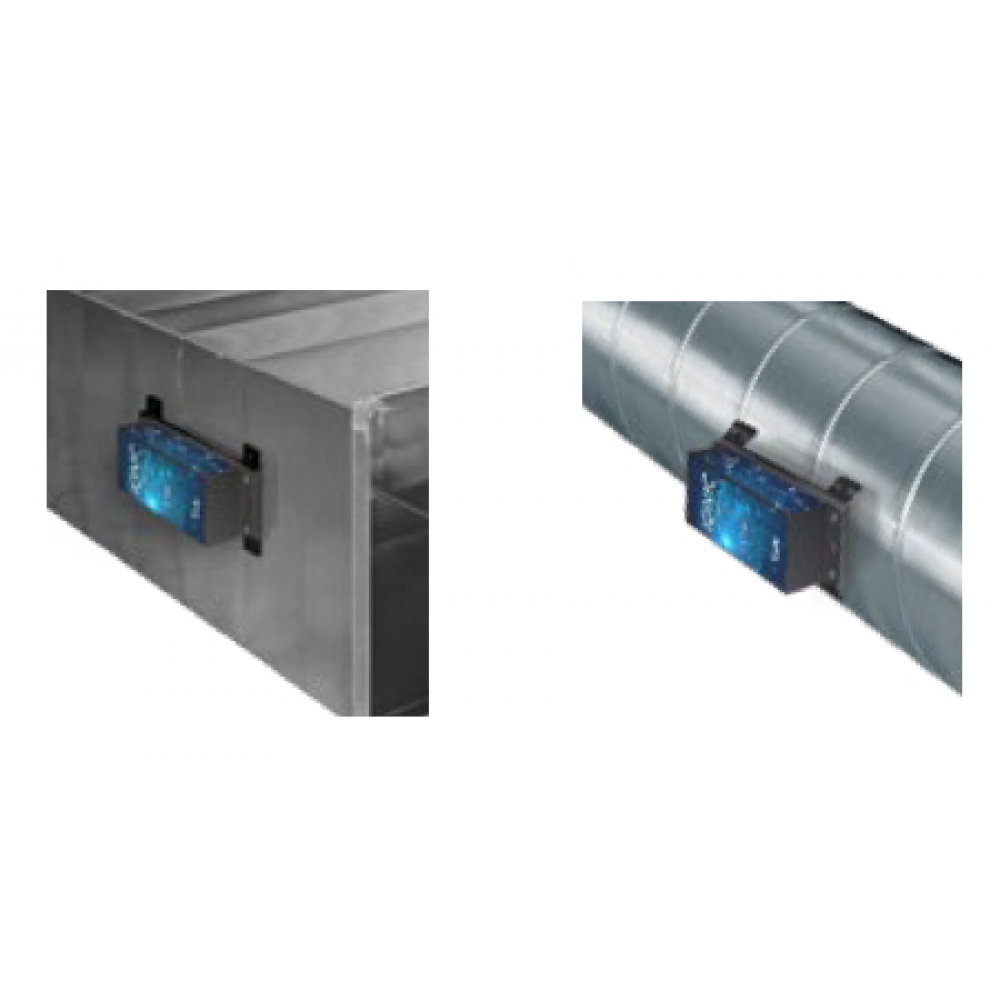

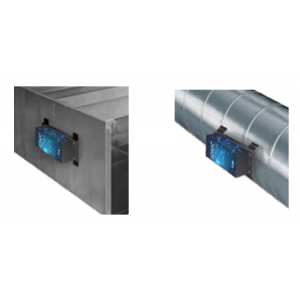

- suitable for installation on circular or square ductwork
- telescopic tip
- no ozone is generated during operation
- safe operation even without airflow
- digital output for fault indication
- digital input for on/off enable
- power cable length 0,9 m

Full description
Safety regulations

Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:

• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.

Downloads
Technical sheets, manuals and declarations
Catalogue sheet .pdf (210.30 kB)
Instructions .pdf (853.84 kB)
