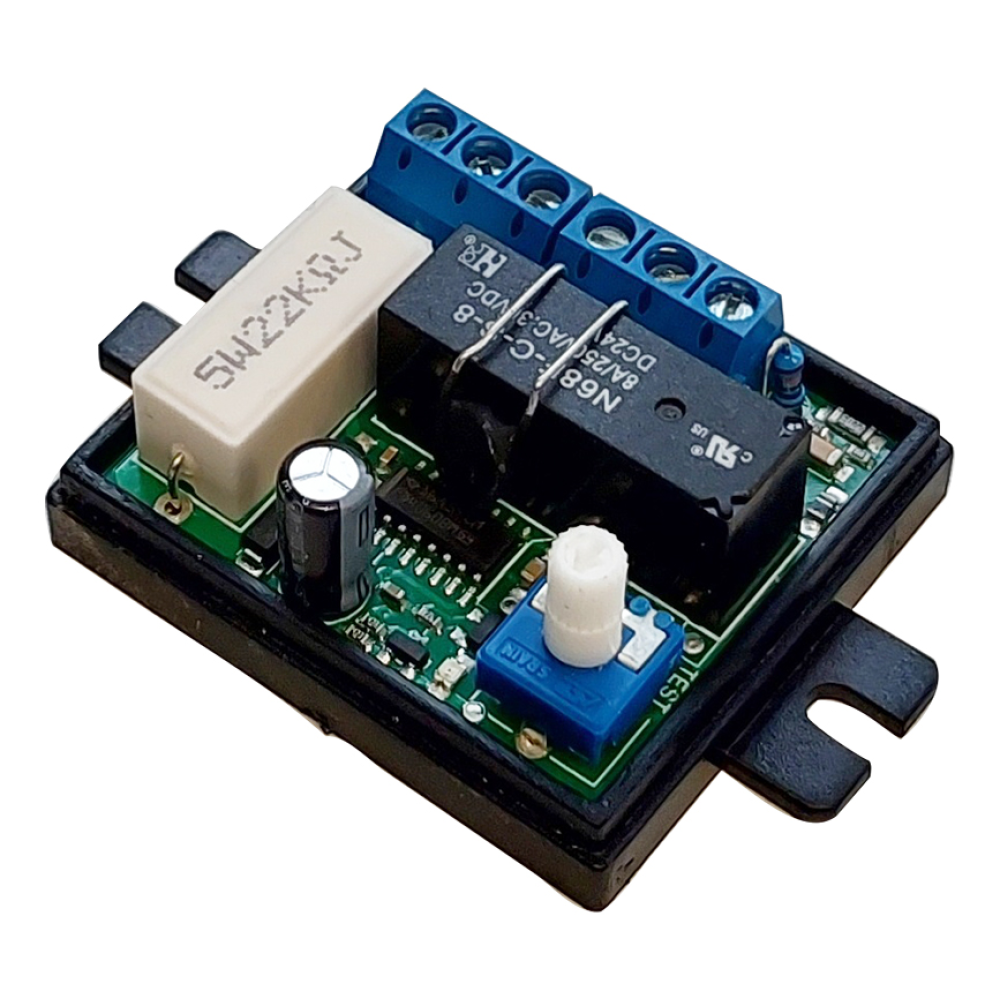

DT 3 UNI adjustable time switch

- universal time switch
- switching of single and double-speed fans
- adjustable 2-20 minutes
- rated voltage 230 V/50 Hz
- maximum current capacity of the DT 3 UNI switching output is 1 A at 230 VAC
- it is built in a plastic housing, which can be placed under the switch or with two screws on the wall
- LED indicates the switched state
- dimensions 47 x 42 x 22 mm (W x H x D)

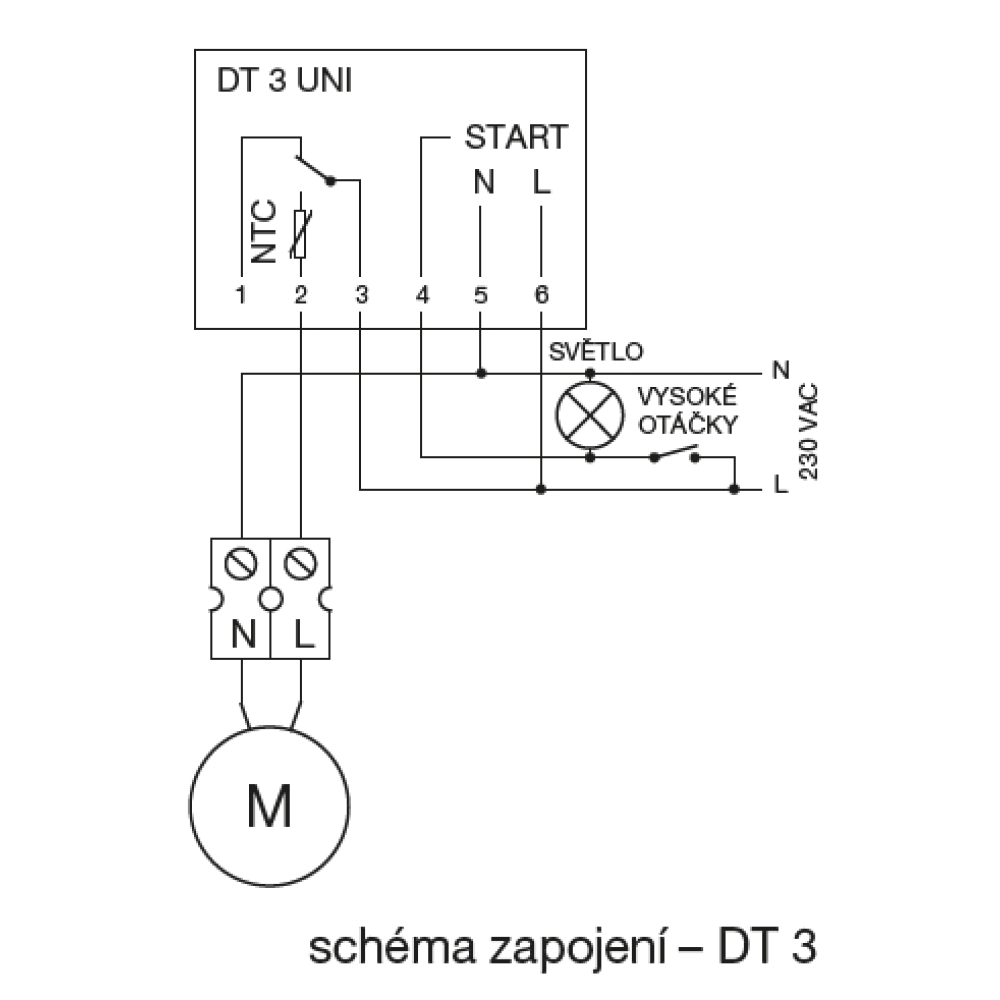

Connection DT 3 - time switch for single-speed fans
Use:
- for delayed switching off of fans on sanitary facilities
- for delayed switching off of fans that work together with electric heaters
- for delayed switching on of heating rods of electric heaters, etc.

.

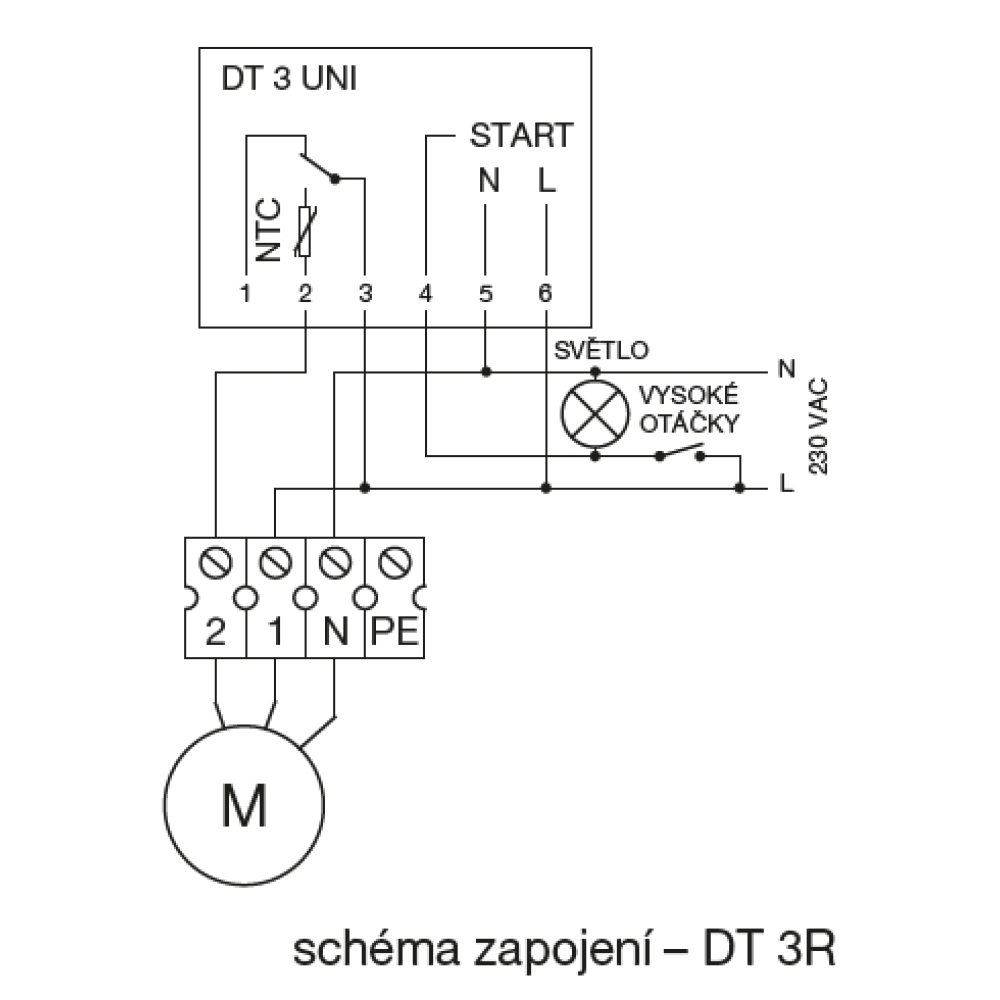

Connection DT 3R - switch for permanent and increased (shock) ventilation for SILENT ECO-U GL, ECO-A GL fans

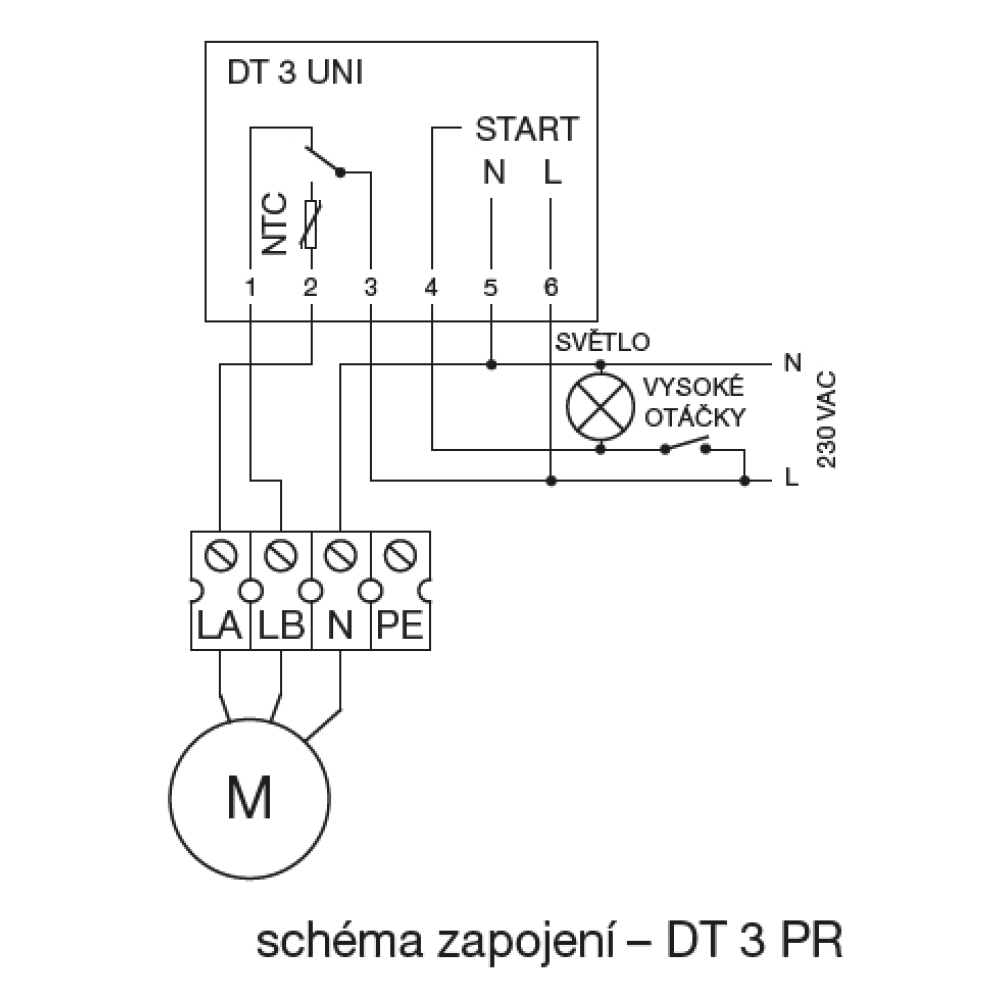

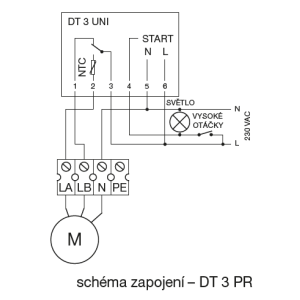

Connection DT 3 PR - switch for permanent and increased (surge) ventilation for fans that have a motor with double / triple winding (e.g. EBB / TD 3V)
Use:
- in basic mode the fan operates at low speed and provides basic permanent ventilation, for the duration of the switching (e.g. When the light switch is turned off, the fan continues to run at high speed for a set period of time (2-20 minutes), after the time has elapsed, it automatically switches back to permanent ventilation
