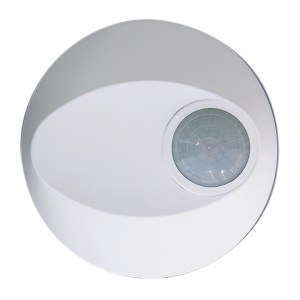

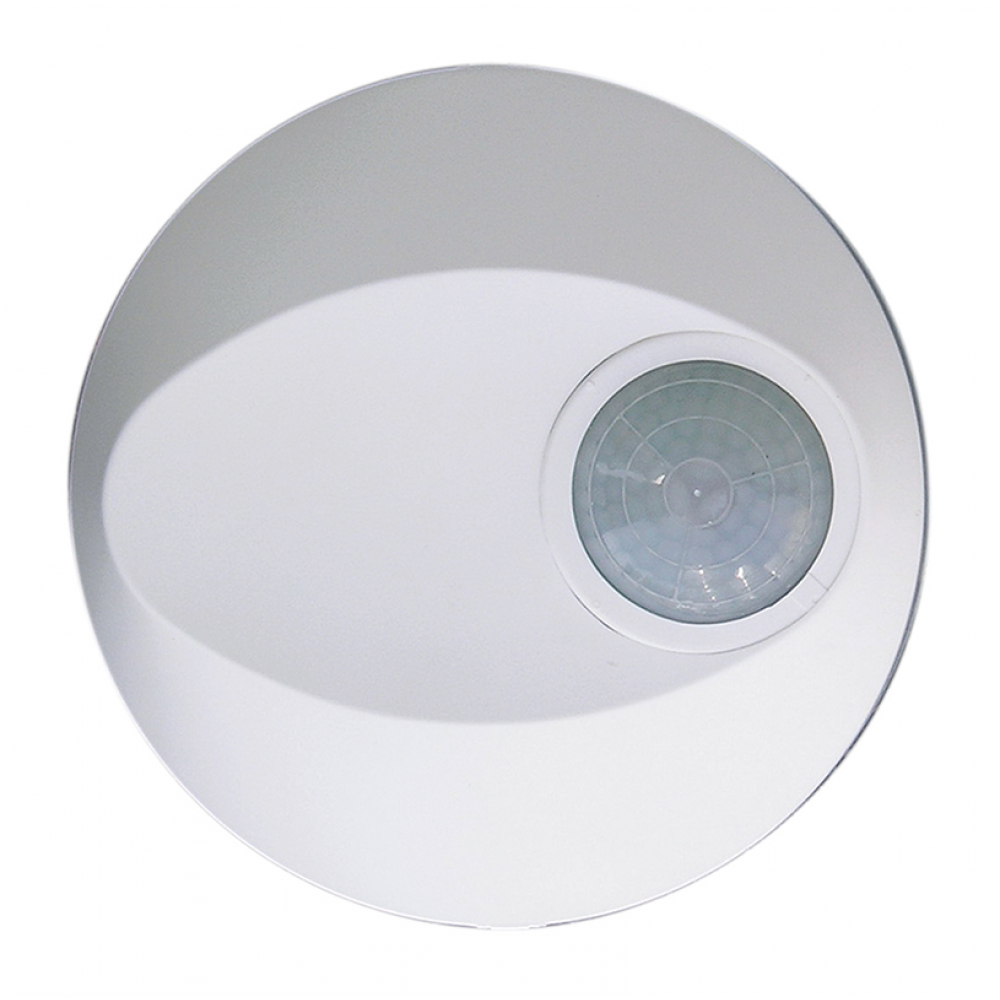

CPTA-S ceiling mounted motion detector

The CPTA motion detectors can be installed on the ceiling (CPTA-S) or in view (CPTA-E). The angle of coverage of the area is 360º. The detector is suitable for automatic control of ventilation in air-conditioning systems.

- PIR sensing principle

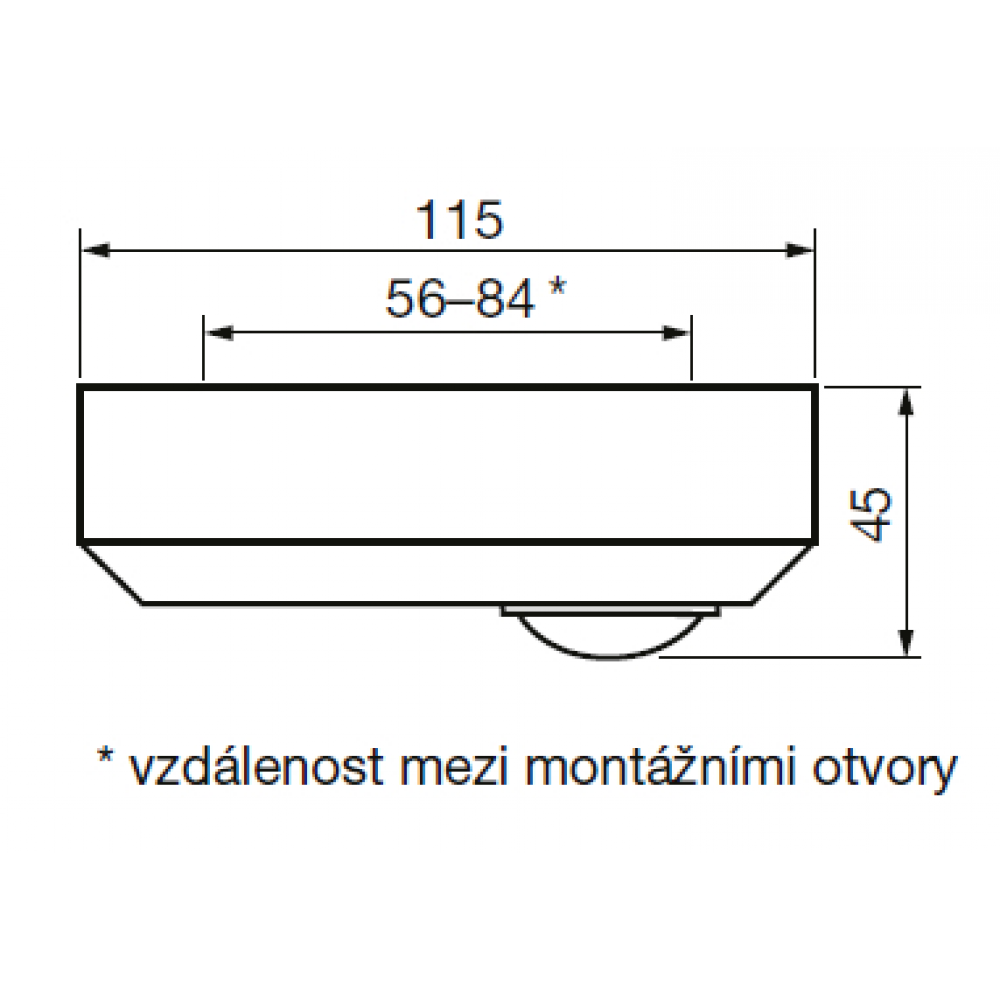

- installation height 2,5-3,5 m
- reaction time 5 s - 30 min, ventilation 10 s - 60 min
- luminance threshold from 10 to 2000 lux

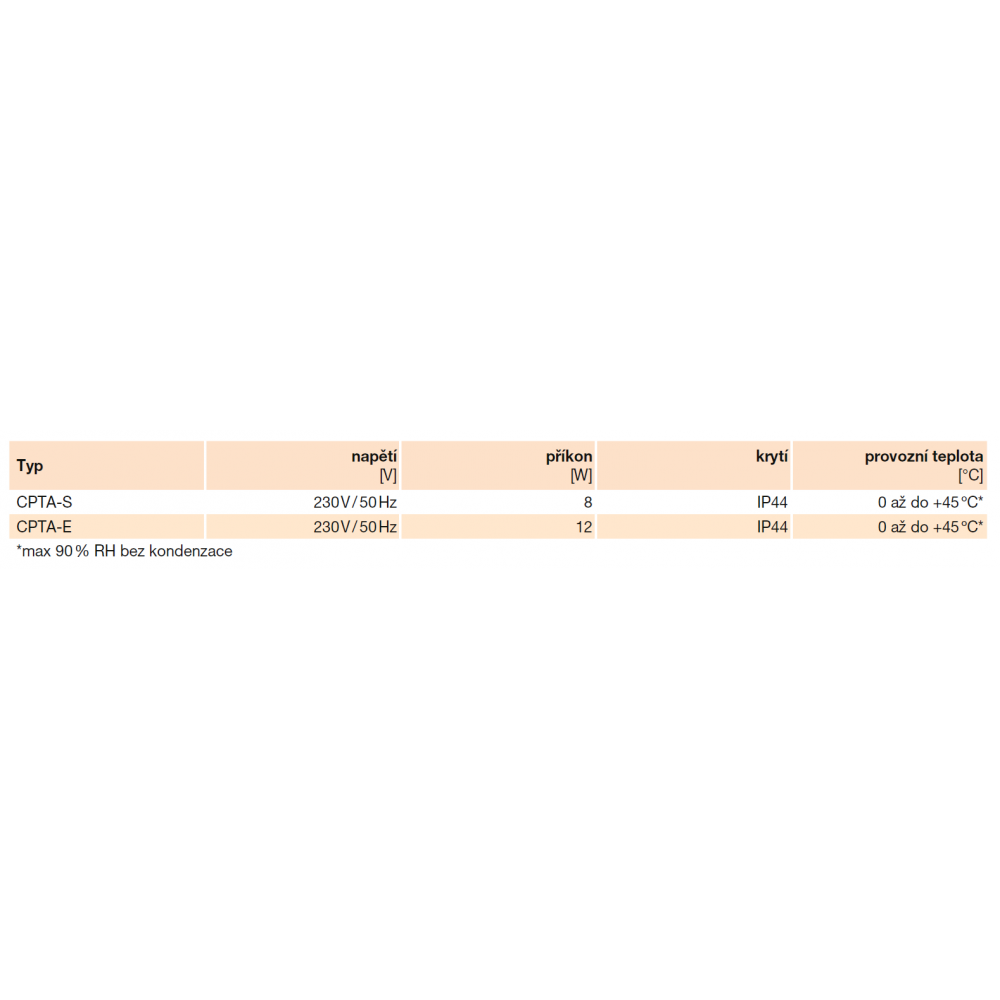

- insulation class II
- lighting switching current max. 10 A at 230 V
- switching current for ventilation when supplying up to 250 V AC or 30 V DC - 5 A (resistive load) and 1 A (inductive load), independent of the lighting output
