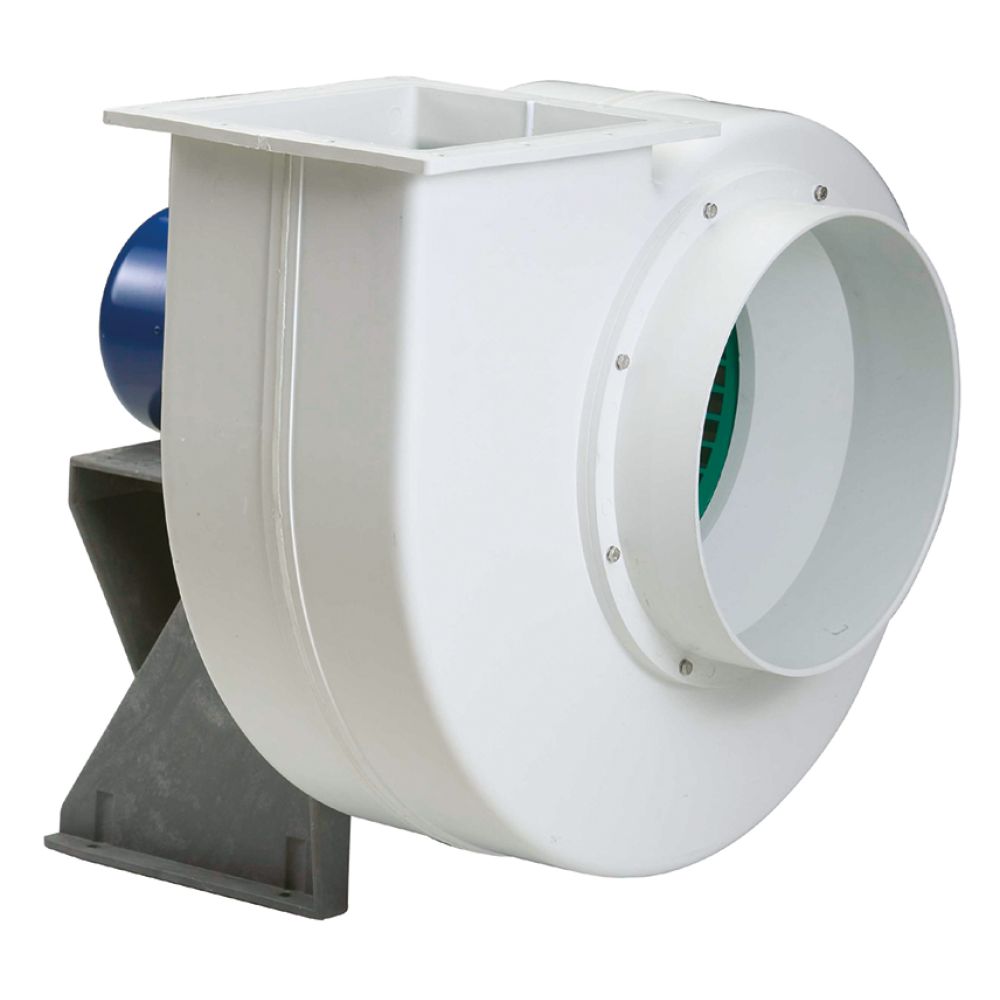

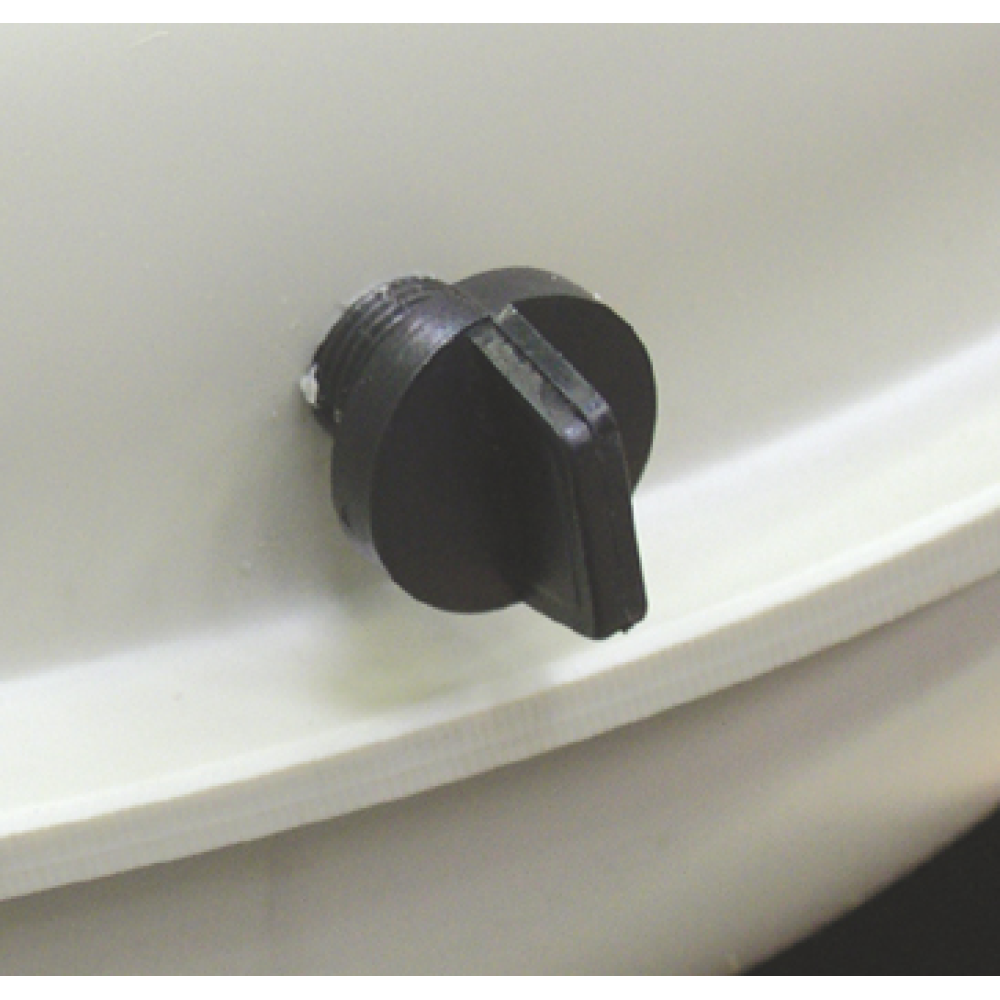

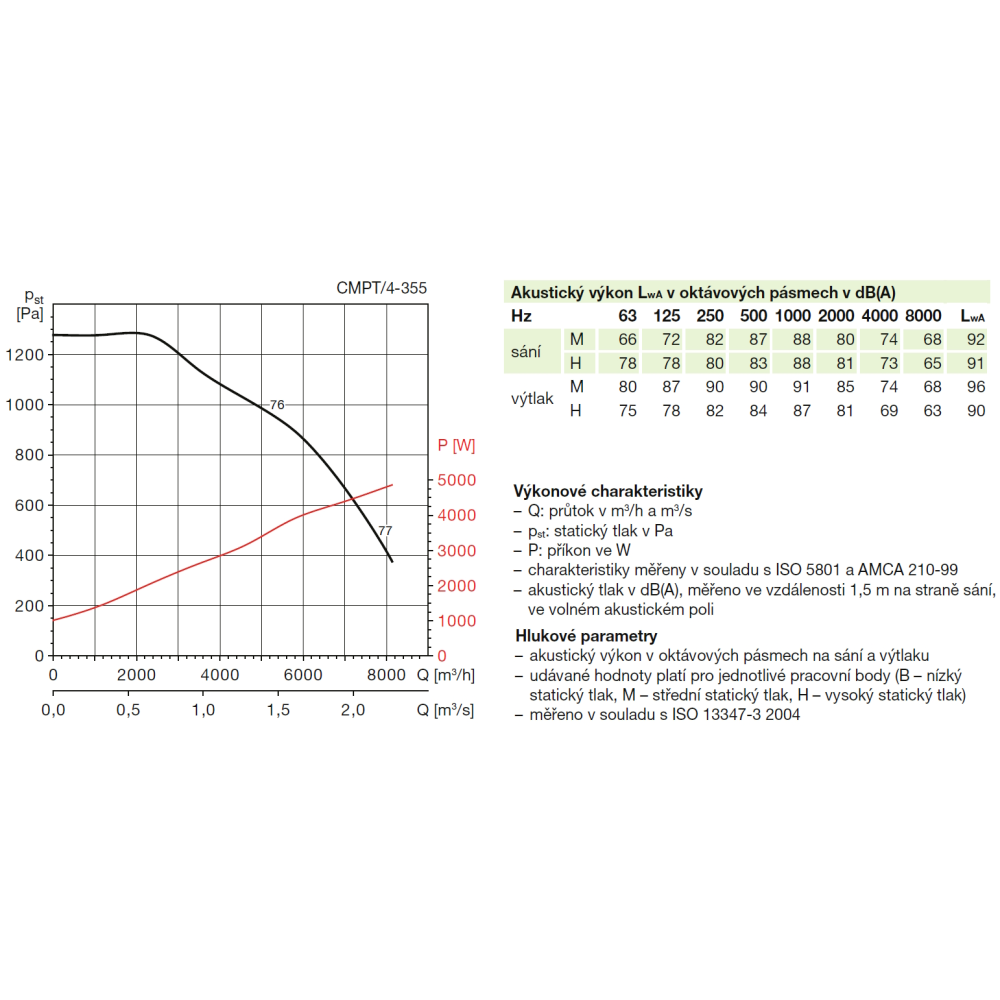

Casing

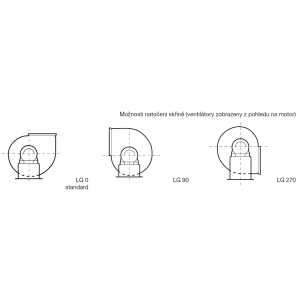

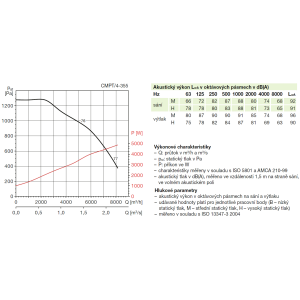

The spiral casing of the radial fan is made of polypropylene; the maximum temperature of the air being conveyed is 60 ˚C. The fan is supplied with a housing orientation of LG 0, and the angle of the discharge spigot axis can be adjusted during installation. A PVC version is available on special order.
Impeller

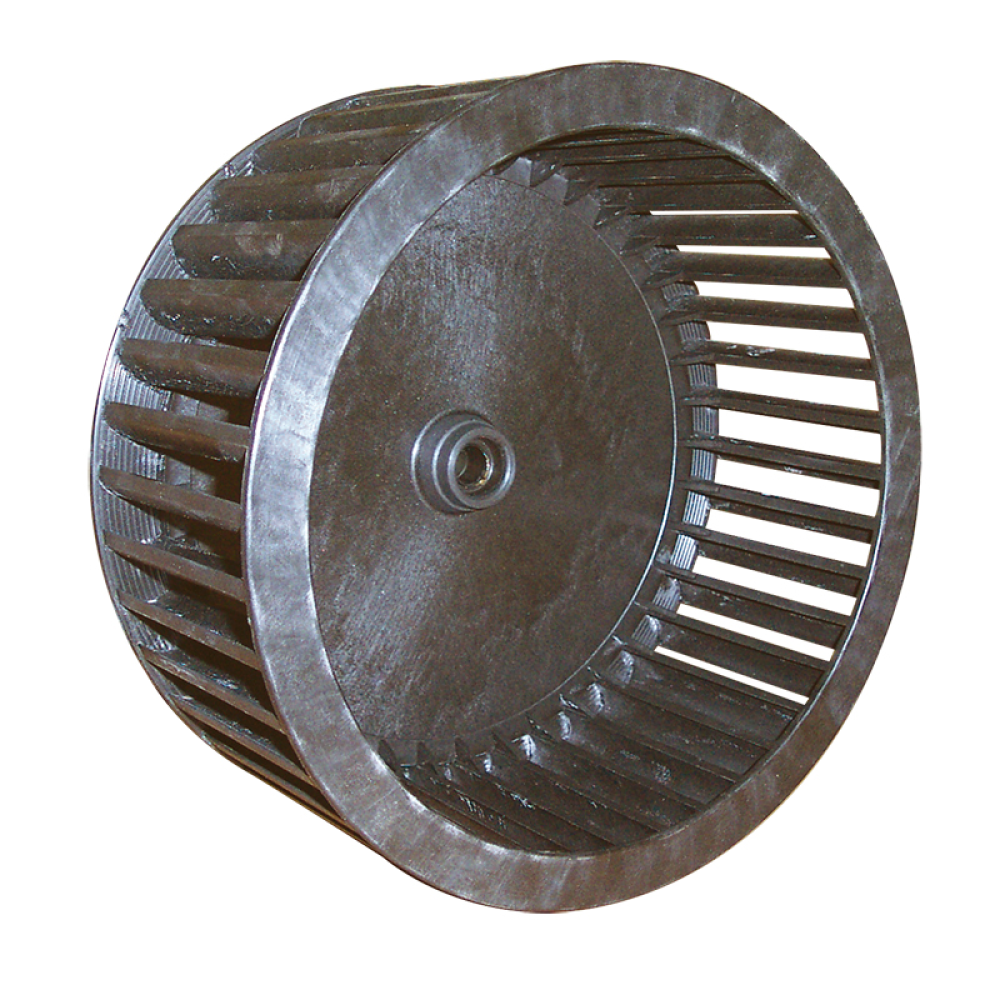

It is a radial impeller with forward-curved blades, made of polypropylene.
Motor

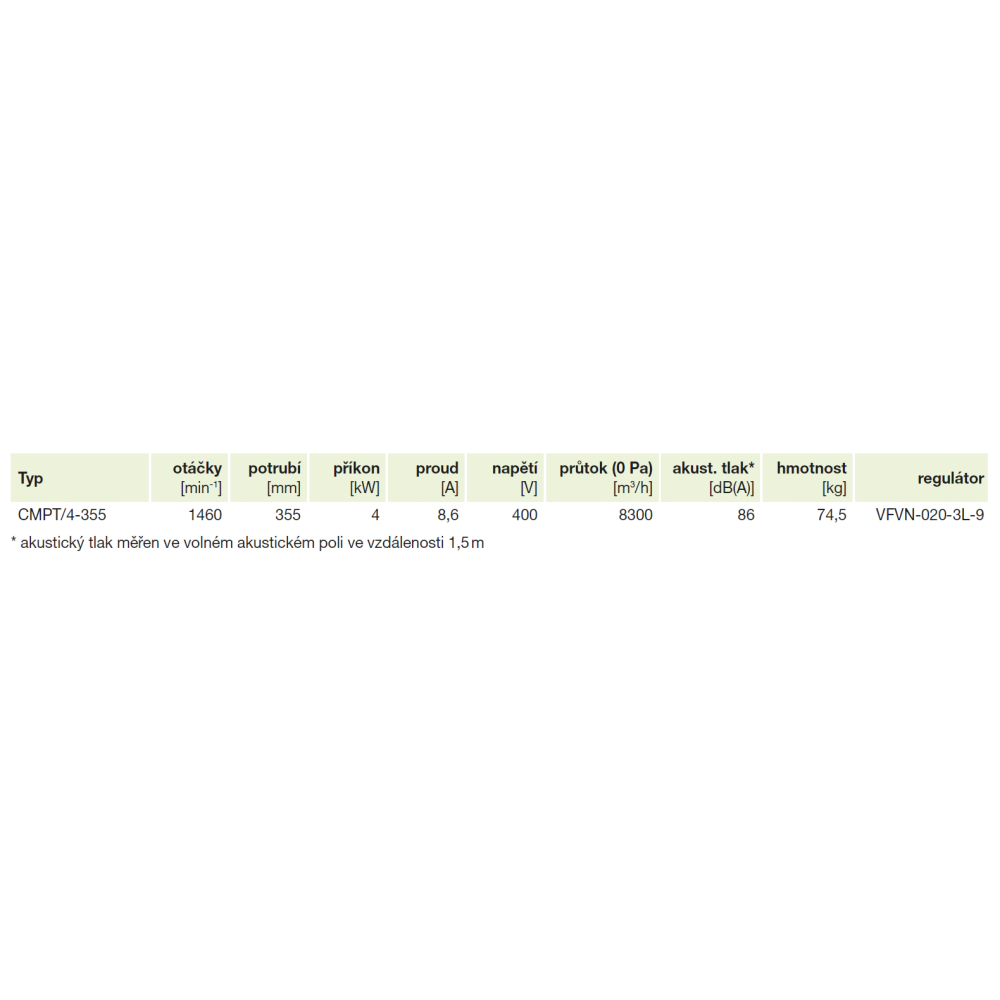

induction motor with squirrel-cage rotor, insulation class F, ball bearings greased for the entire service life. The motors are three-phase, rated for 400 V. The motor is located outside the air flow. Protection rating IP55.

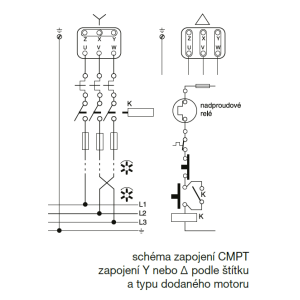

Terminal block
located on the motor.

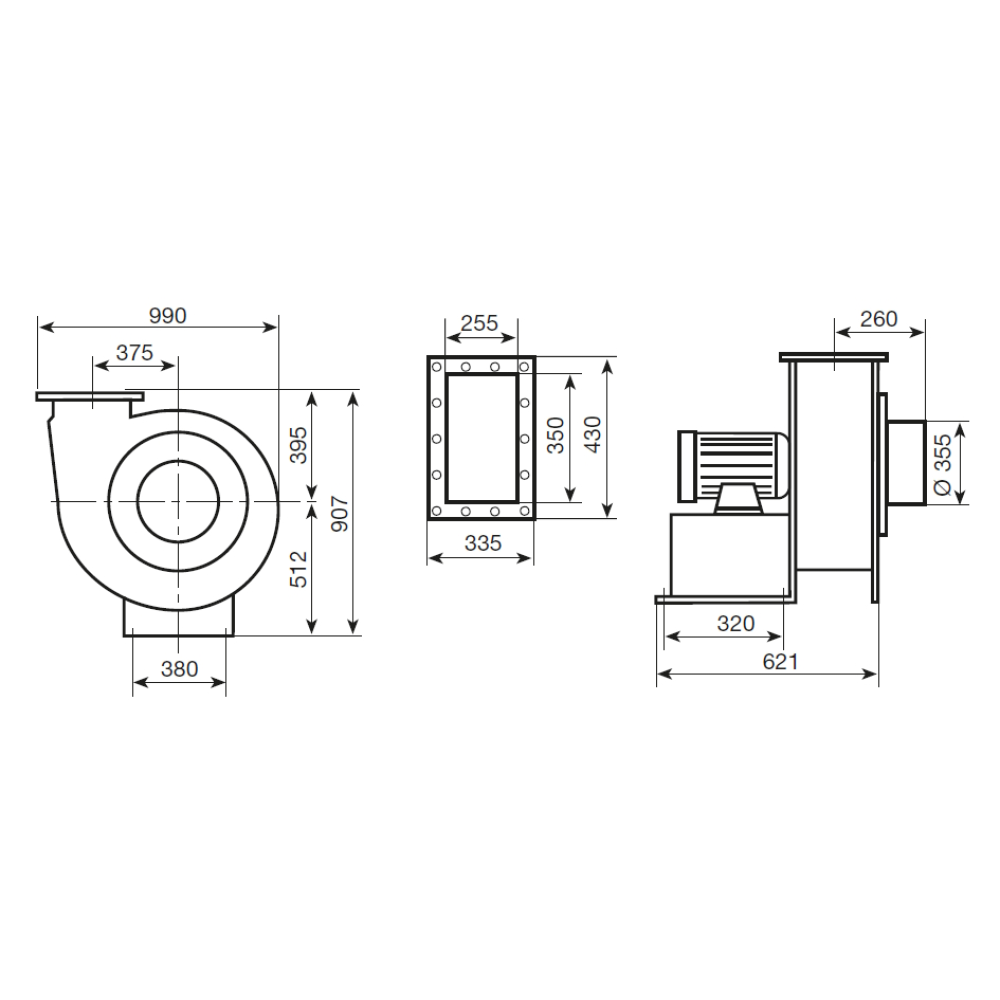

Installation

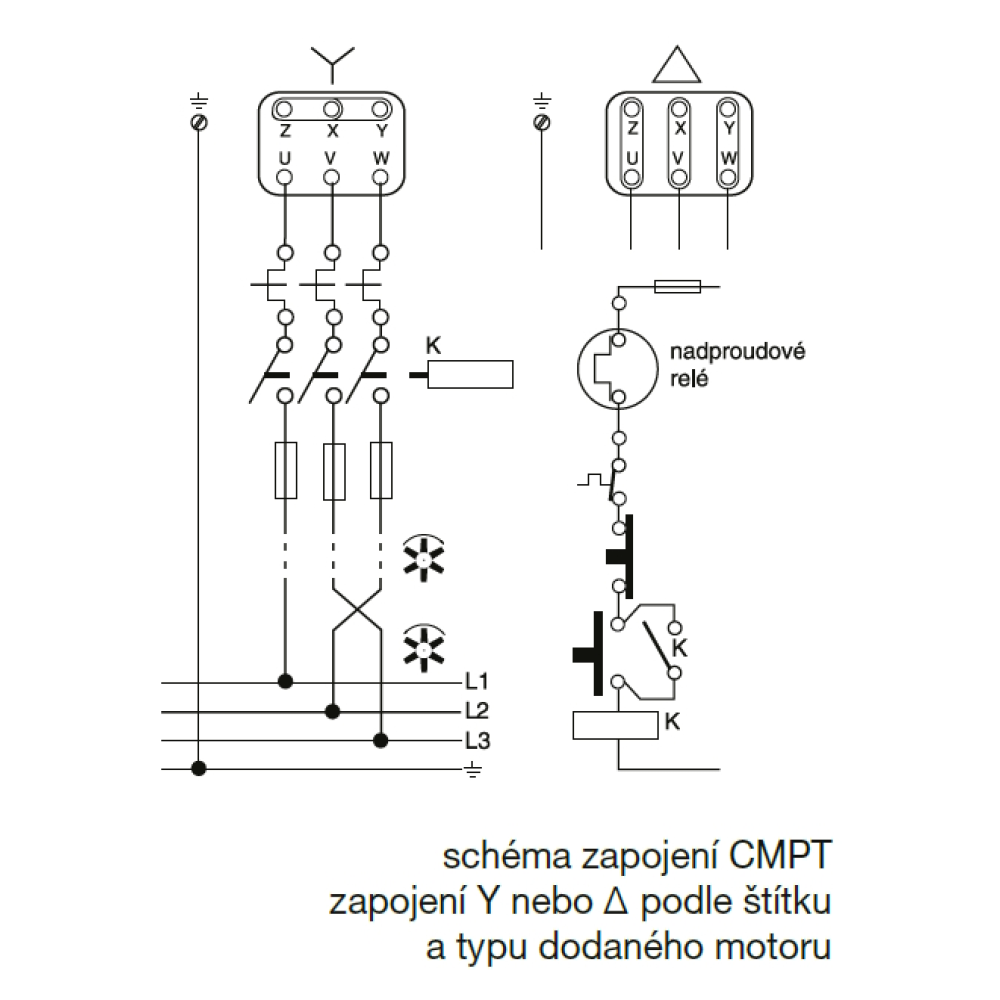

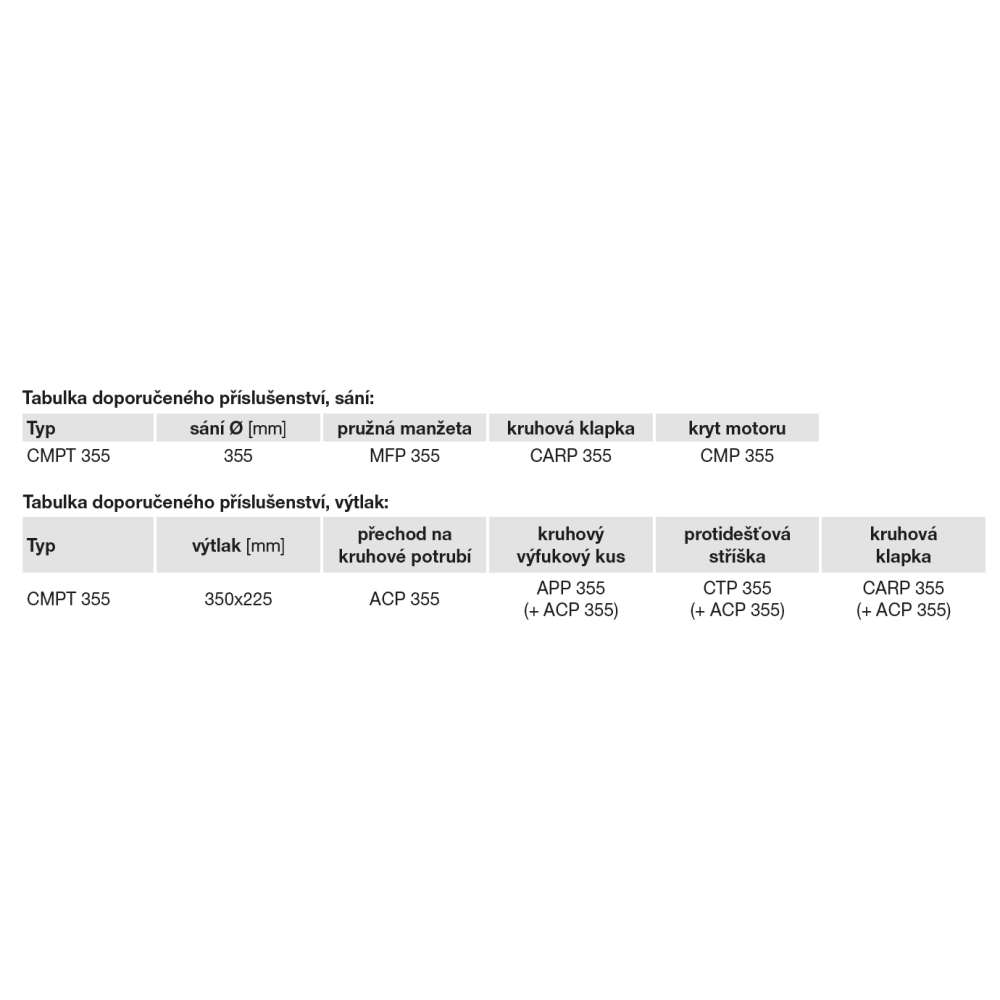

is carried out on the mounting base, which forms part of the fan. The fan is started up after connection to the ductwork network for which it is intended, with the inlet or outlet closed where necessary to prevent the fan from being overloaded. After start-up, the correct direction of rotation of the impeller must be checked and the current measured; this must not exceed the fan’s rated current. If the current readings are higher, the ductwork configuration must be checked. An overcurrent relay or other suitable motor protection must be fitted in the fan’s power supply. In the event of a motor overload, the thermal protection will open the contactor’s control circuit and disconnect the fan motor. If this motor thermal protection is triggered, it usually indicates an abnormal operating condition. In such cases, the balancing of the ductwork must be checked, along with the electrical parameters of the motor and the electrical installation. If the fans are operated without this protection, the right to make a claim for a damaged motor will lapse. The housing must not bear any mechanical stress from the ductwork. A flexible connection to the ductwork must be used.
Instructions
Due to their design, these fans are suitable for long air ducts in various process and ventilation applications, in the chemical industry, petrochemicals and laboratories. They are not suitable for extracting wood dust and shavings, nor other flammable or explosive mixtures.
Warning
During the design phase, the chemical composition of the substances being conveyed must be precisely determined; in case of uncertainty, the suitability of the fan must be discussed with the manufacturer. The same design rules apply to this fan as to all radial fans with forward-curved blades.
