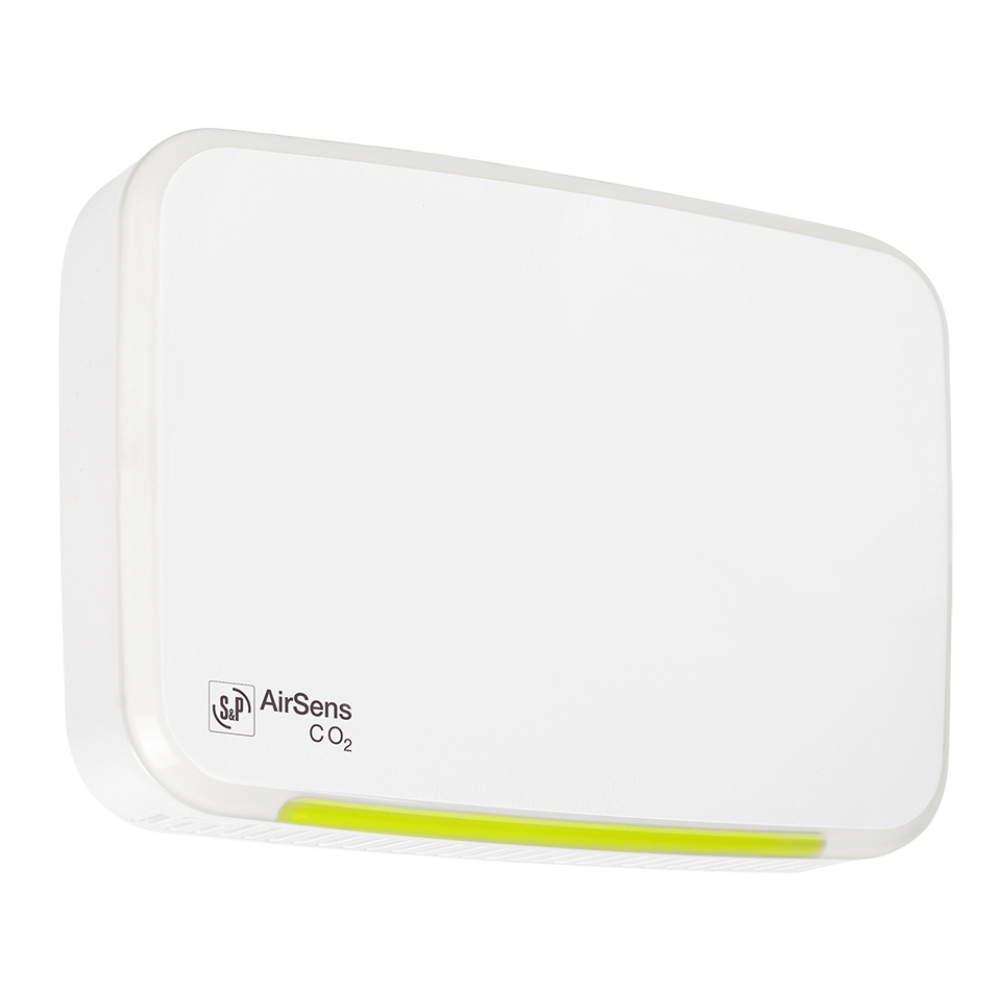

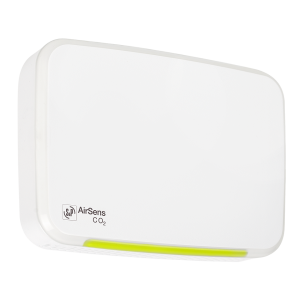

AIRSENS-WIFI-CO2 intelligent CO2 sensor

Intelligent stand-alone room sensors for carbon dioxide CO₂, free organic compounds VOC, relative humidity RH and temperature TEMP.

B2B clients will see their prices after logging in

10 631,00 CZK excl. VAT

12 863,51 CZK incl. VAT

Availability: In stock [29.8.2025, 16:10] Update

Add to project

Insert into the design HVAC program

Insert into EasyVent

Product code: SP600104310

EAN: 8445325068441

Manufacturer: S&P SISTEMAS DE VENTILACIÓN, S.L.U. Read moreRead less

S&P SISTEMAS DE VENTILACIÓN, S.L.U.
Llevant, 4
Polígono Industrial Llevant
08150 Parets del Vallès
Barcelona – Spain
consultas[zav]solerpalau[teč]com
www.solerpalau.com/en-en/home

Product description

Intelligent stand-alone CO₂ carbon dioxide sensor, each sensor allows simultaneous monitoring of temperature and relative humidity (RH), the continuous values are clearly displayed graphically in the S&P platform Connectair^®. Specially developed for controlling DCV systems and intelligent ventilation systems. They are suitable for use in offices, classrooms, shopping centres, restaurants, homes, fitness centres and other commercial buildings. The sensors easily connect to a home network thanks to an integrated WiFi antenna (2.4GHz), then monitor indoor environmental quality using the S&P Connectair^® digital platform from anywhere.

- easy installation, wall mounted
- maintenance free during operation
- long term durability and stability
- Connectair^® remote management from anywhere using mobile phone, tablet, laptop, etc.
- control of HVAC systems using a switching relay or 0-10 V analogue input
- setting of the operating point
- indication of the IAQ level (air quality) by three coloured LEDs located on the bottom of the sensor with the possibility of adjusting the intensity of the illumination (OFF - 100%)
green - good quality
orange - deteriorated quality
red - poor quality
- indication of the WIFI connection status by means of four LEDs on the WiFi antenna

Operation is possible in 4 modes:
- switching relay 3 A / 230 V - Connectair^® (read)
- analog output 0-10 V - Connectair^® (read)
- analog output 2-10 V - Connectair^® (read)
- Connectair^® full control

Full description

Safety regulations

Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:

• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.

Downloads

Technical sheets, manuals and declarations

Catalogue sheet .pdf (197.61 kB)

Instructions .pdf (1.53 MB)

Flyer .pdf (526.64 kB)
