An underfloor heat recovery unit that adapts to your home.
- high efficiency, low emissions
- the unit is made from 99.9% recyclable materials
- wide range of genuine S&P filters
- Passive House certified product
- control of any electronic device via the CONNECTAIR® platform

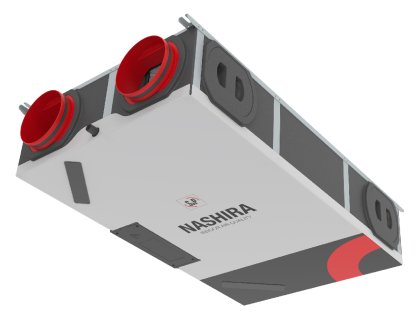

Small unit with economical operation and simple controls designed for residential construction or single-family homes. Air flow up to 150 m3/h (NASHIRA 150) or 200 m3/h (NASHIRA 200), connection to 125 mm (NASHIRA 150) or 160 mm (NASHIRA 200) circular duct.
The cabinet is made of durable high density EPP, the front metal panel is powder coated white. The unit is fitted with radial fans. Countercurrent aluminium plate heat exchanger with up to 94% efficiency or countercurrent enthalpy heat exchanger with up to 90% thermal efficiency and up to 78% moisture transfer (version E).
The unit is supplied complete with G4 class filters and exchanger bypass. Fully automatic control system with four temperature and relative humidity sensors. A wireless control kit can be supplied as an accessory and the unit can also be controlled via a mobile or web app or ModBus protocol.
Technical documentation:
