Cabinet
It is made of galvanized steel sheet with black paint, mounting brackets and screws are electroplated.
Running wheel
is made of sheet steel up to Ø 355, higher diameters have Al alloy blades, the "SICKLE" shape is specially optimised for maximum flow and pressure with minimum noise. The impeller is pressed directly onto the motor.

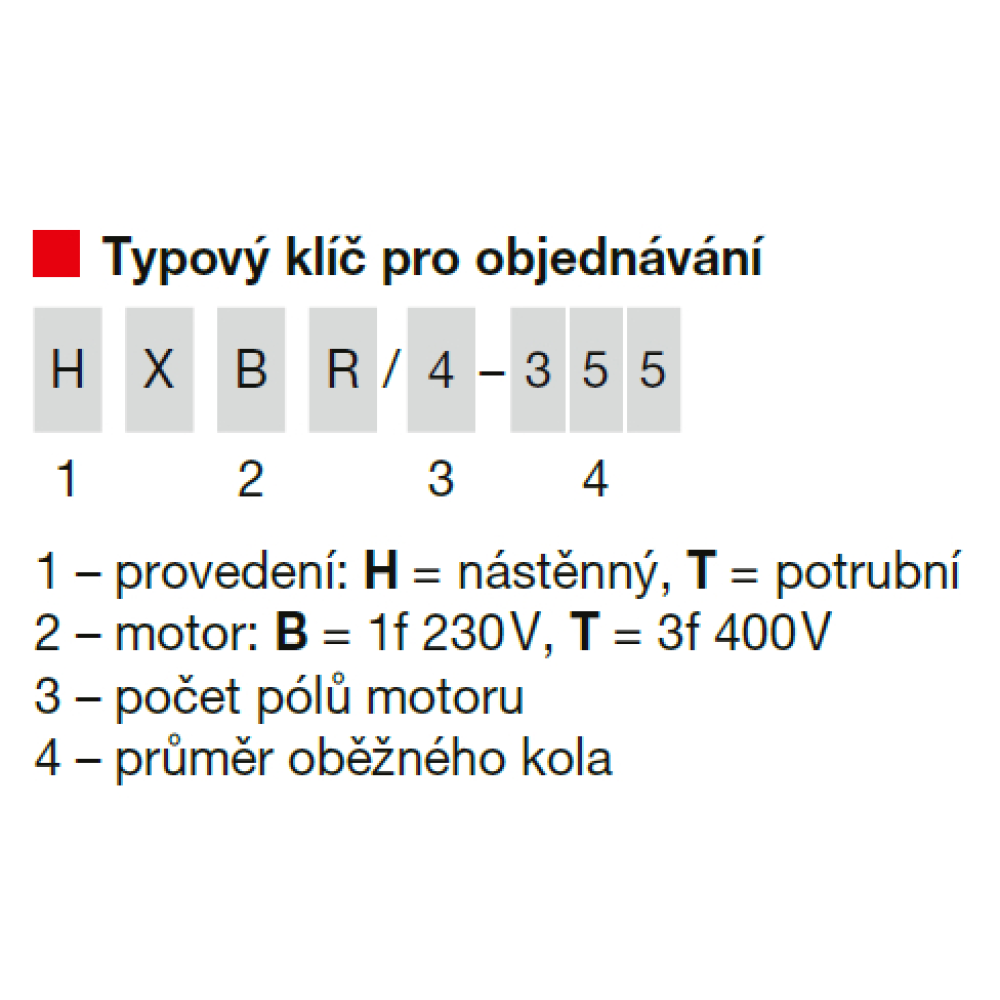

Motor
is asynchronous with short armature, external rotor and start-up capacitor. HXBR/TXBR fan motors are 1-phase for 230 V, HXTR/TXTR are 3-phase for 400 V. Insulation class F, protection class IP44. Grease-filled ball bearings for lifetime. Motor is dynamically balanced to ISO 1940.
Speed control
is carried out by electronic or transformer regulators by changing the voltage. For three-phase types by frequency converters.
Rotation direction
cannot be changed. In the wall-mounted version, the standard air flow is from the motor to the impeller, in the ducted version the opposite. A fan with reverse flow can be ordered at extra cost (for markets outside ErP).

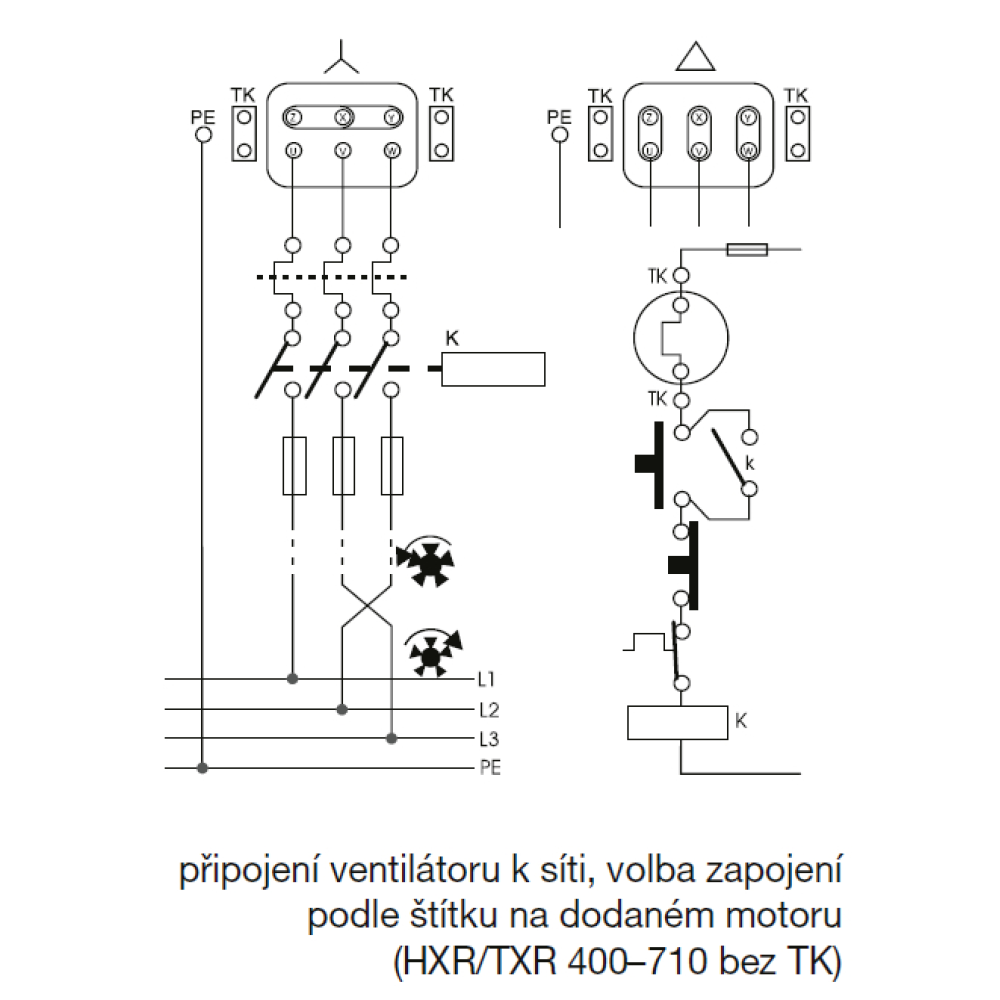

Clamps
is made of black plastic as standard. For the single-phase version, it also includes a start-up capacitor. The terminal block is located on the motor (wall-mounted version) or on the cabinet (piped version).

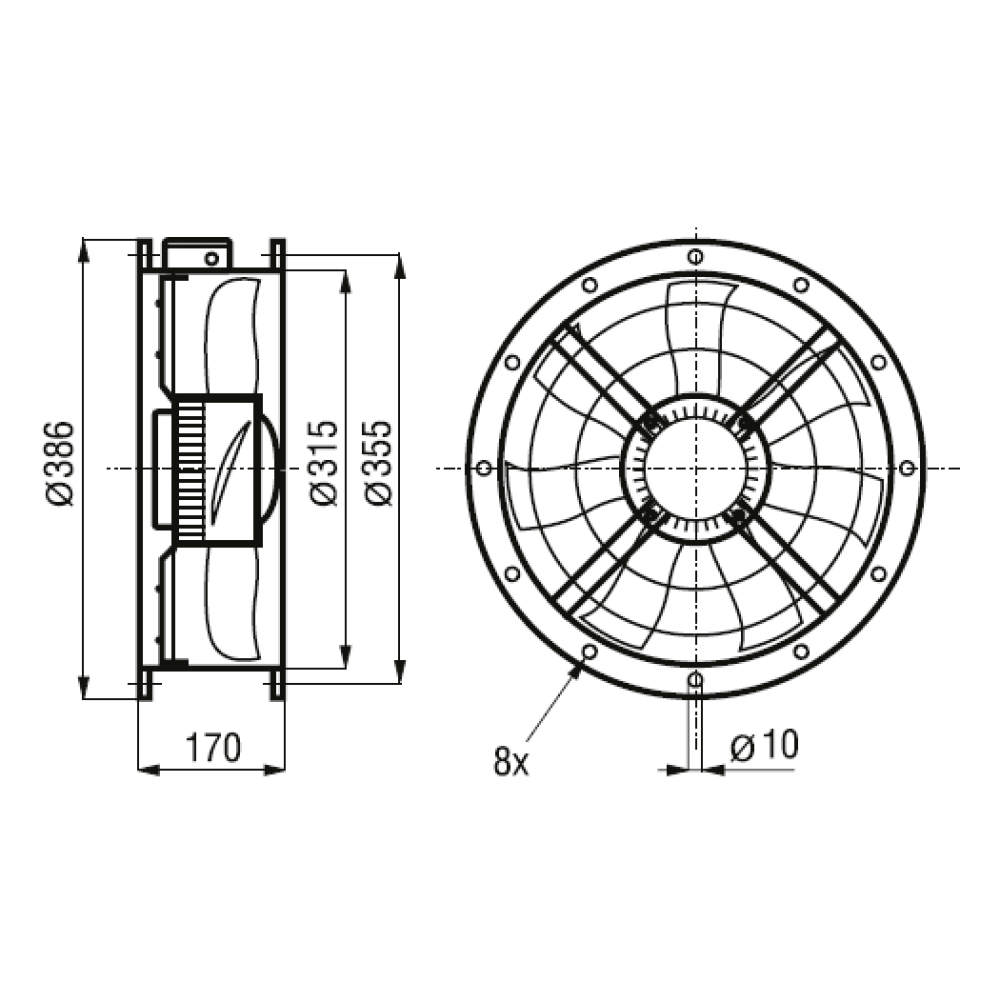

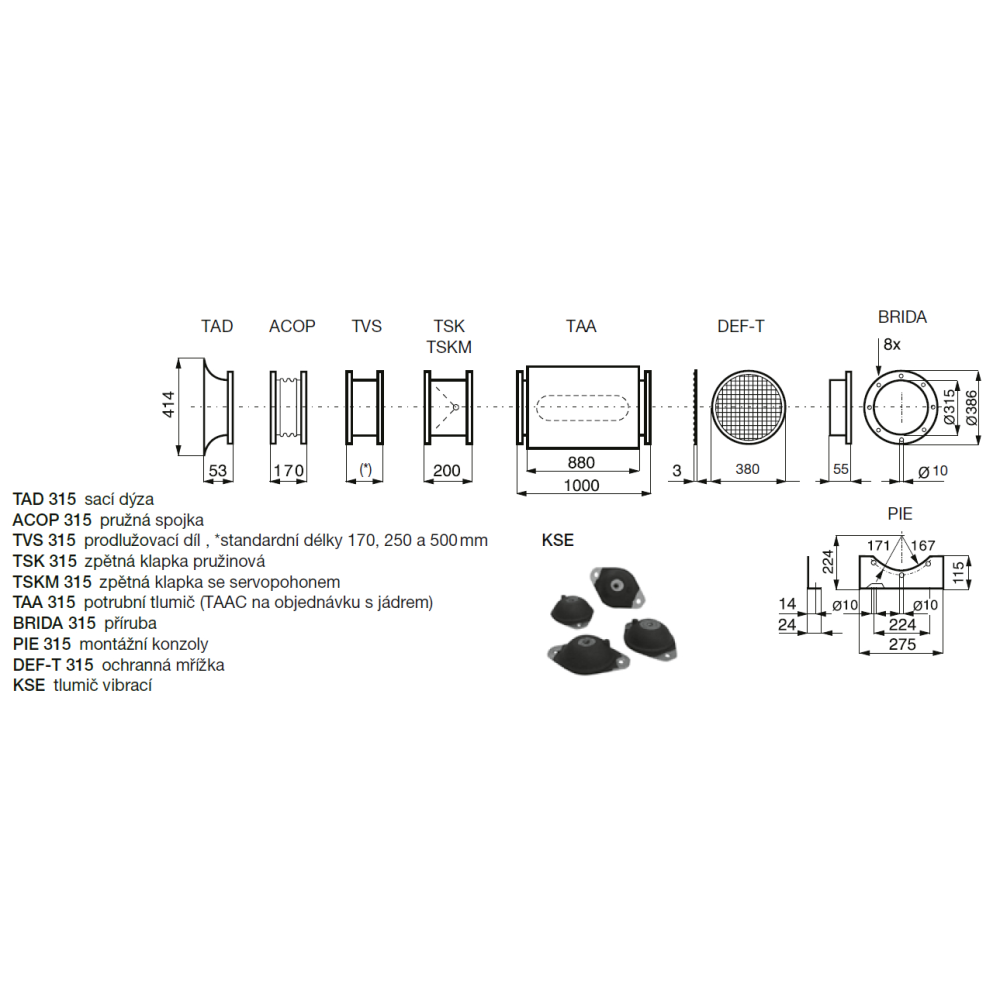

Mounting
is possible in any position of the motor axis. In the case of horizontal mounting, it is necessary to open the condensate drain holes in the rotor. The casing must not transmit mechanical stresses from the pipework. A flexible connection to the pipework must be used.

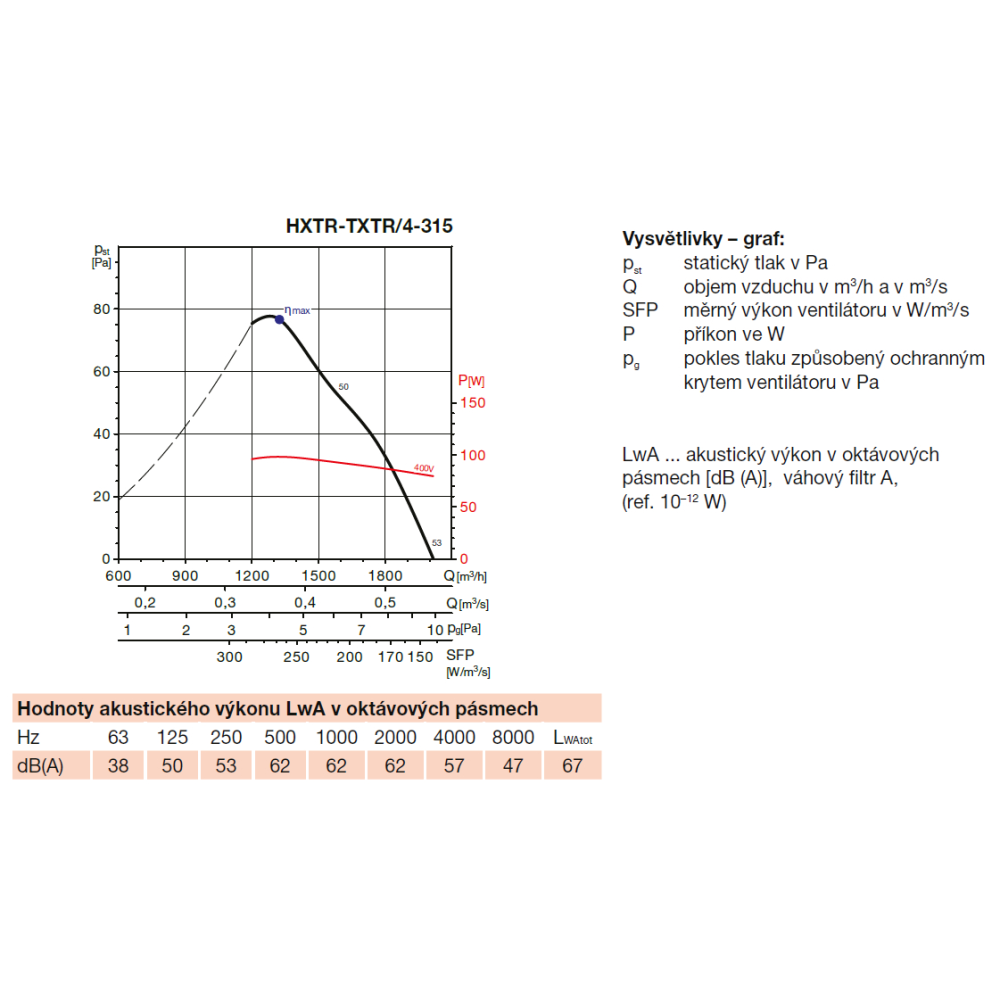

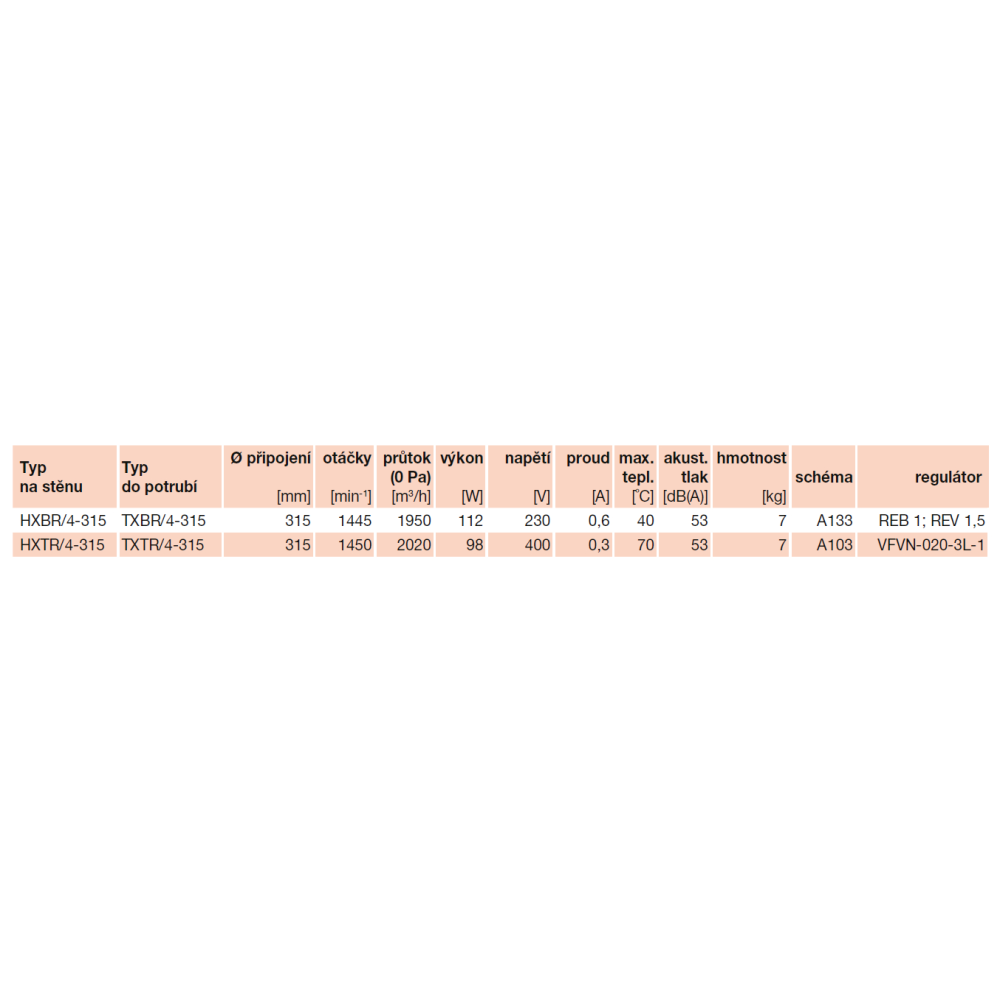

Noise
emitted by the fan is given in the tables, measurements are made in the free field at a distance equal to three times the impeller diameter (but at least 1.5 m).
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
