TTC40F controller

Controllers, switches and temperature sensors for air heaters.
Read more
B2B clients will see their prices after logging in
28 899,00 CZK excl. VAT
34 967,79 CZK incl. VAT
Availability: In stock [23.8.2025, 04:10] Update

Product code: RE110100100
Product description

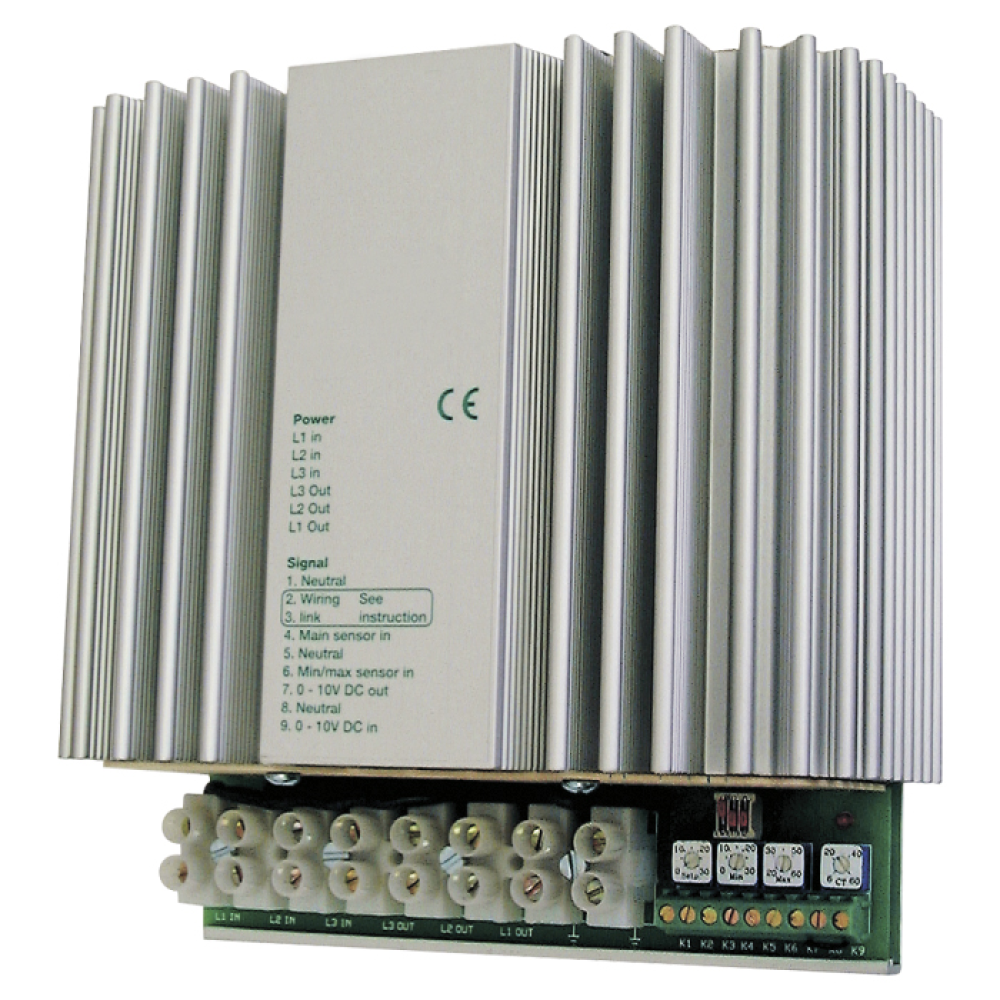

Proportional controller TTC40F is designed for control of electric 3-phase heaters MBE and IBE up to 27 kW. TTC40F can be controlled by temperature sensors or 0-10 V signal, TTC40FX only by 0-10 V signal. In conjunction with the TT-S4/D adapter, it is designed for control up to 67 kW. An external temperature sensing sensor, such as the TGBK 330 channel sensor or the TGBR 430 and TGBR 530 room sensors, must be connected to the controller. It is also possible to connect an additional sensor for temperature limiting (min/max, only TTC40F).

- for star and triangle connection
- relative humidity maximum 90%
- installation in DIN rail rack
- automatic voltage adjustment

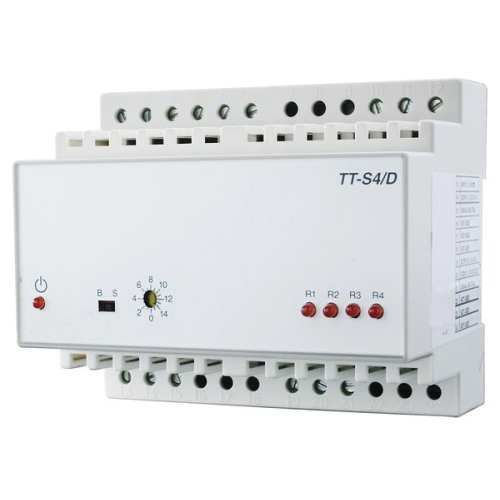

TT-S4/D is a module that expands the capacity of the TTC40F by 4 outputs to control up to 4 heater sections (4 outputs to switch 4 contactors that physically switch the heater section). Control can be sequential or binary. DIN rail installation in the control cabinet. IP20 protection.

WARNING!
The heater must have a safety and working thermostat connected. The load in each phase must be uniform.

Full description
Safety regulations

Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:

• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.

Downloads
Technical sheets, manuals and declarations
Datasheet .pdf (150.94 kB)
Operating Instructions .pdf (954.47 kB)
