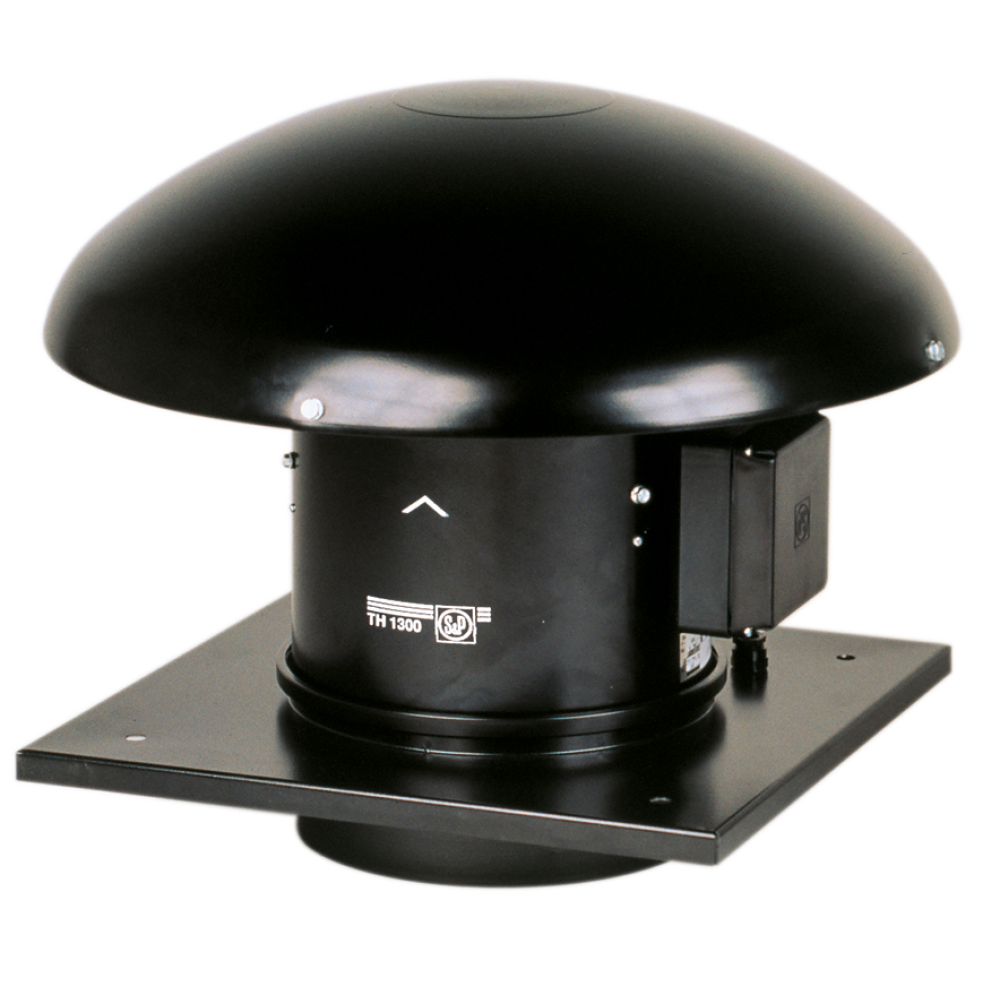

Cabinet
It is made of anti-static plastic (TH-800 Ex) or steel sheet coated with black polyester paint (TH-1100 Ex, TH-1200 Ex).
Running wheel
is statically and dynamically balanced, the operating temperature range is from -20 to +40 °C.
Motor
is asynchronous with short armature, stator with cooling fins. Ball bearings have grease packing for life. Protection IP44, insulation class B.
Speed control
Non-explosion fans are not designed for speed control.

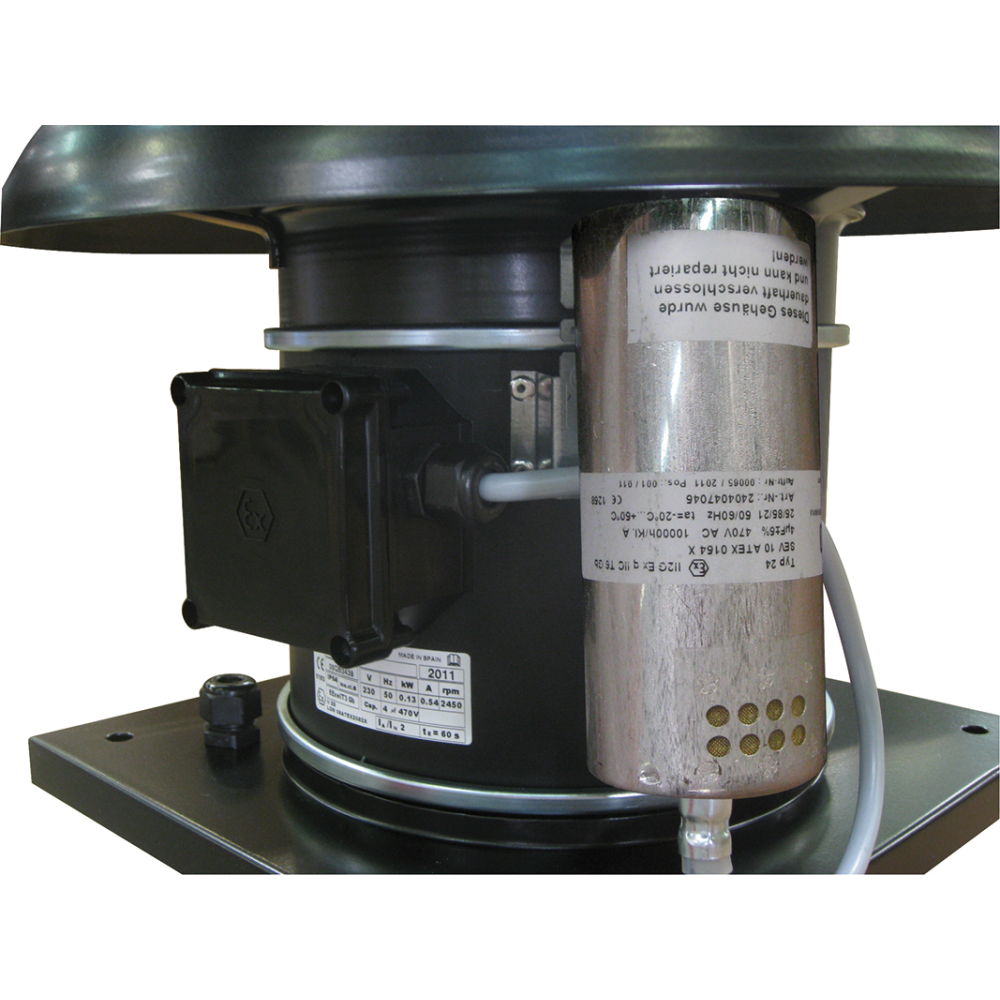

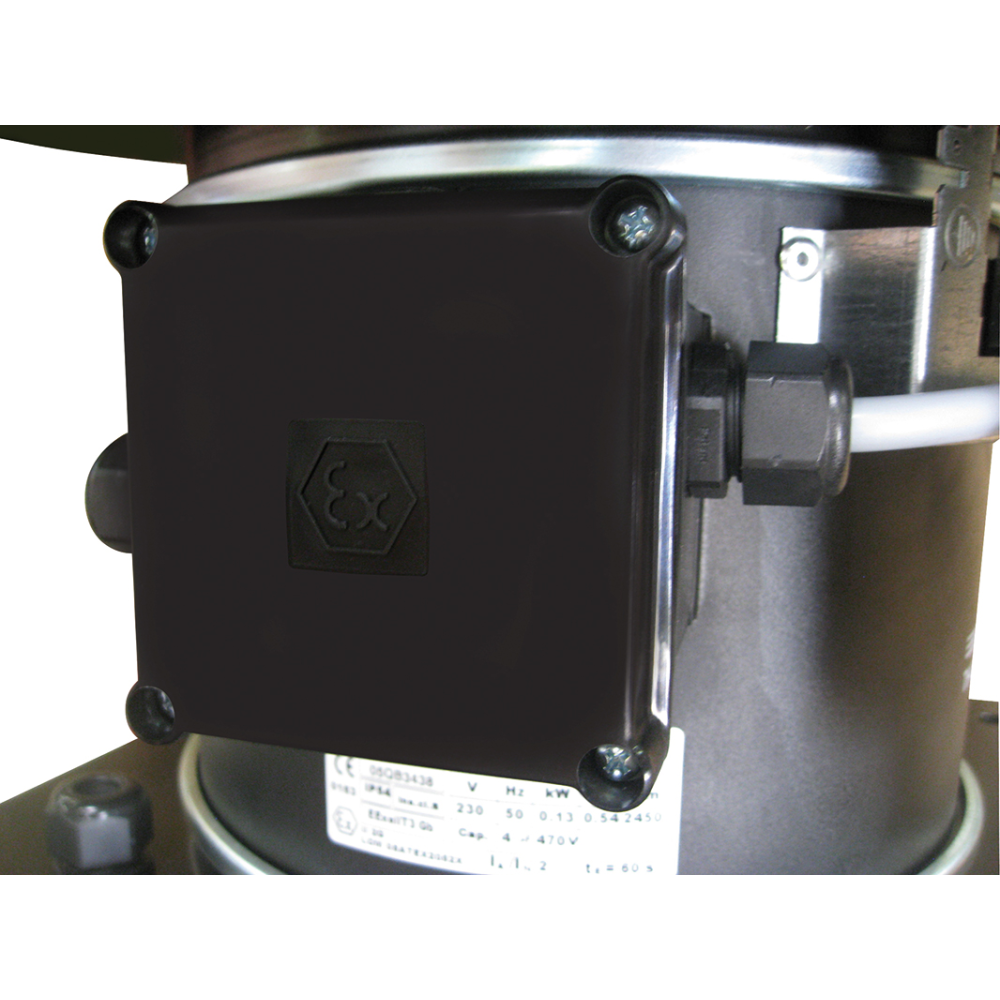

Square box
In explosion proof design, located on the fan housing including the explosion proof condenser. IP55 protection.
Mounting
Fans are mounted with a mounting base on horizontal roof structures or prefabricated masonry plinths.

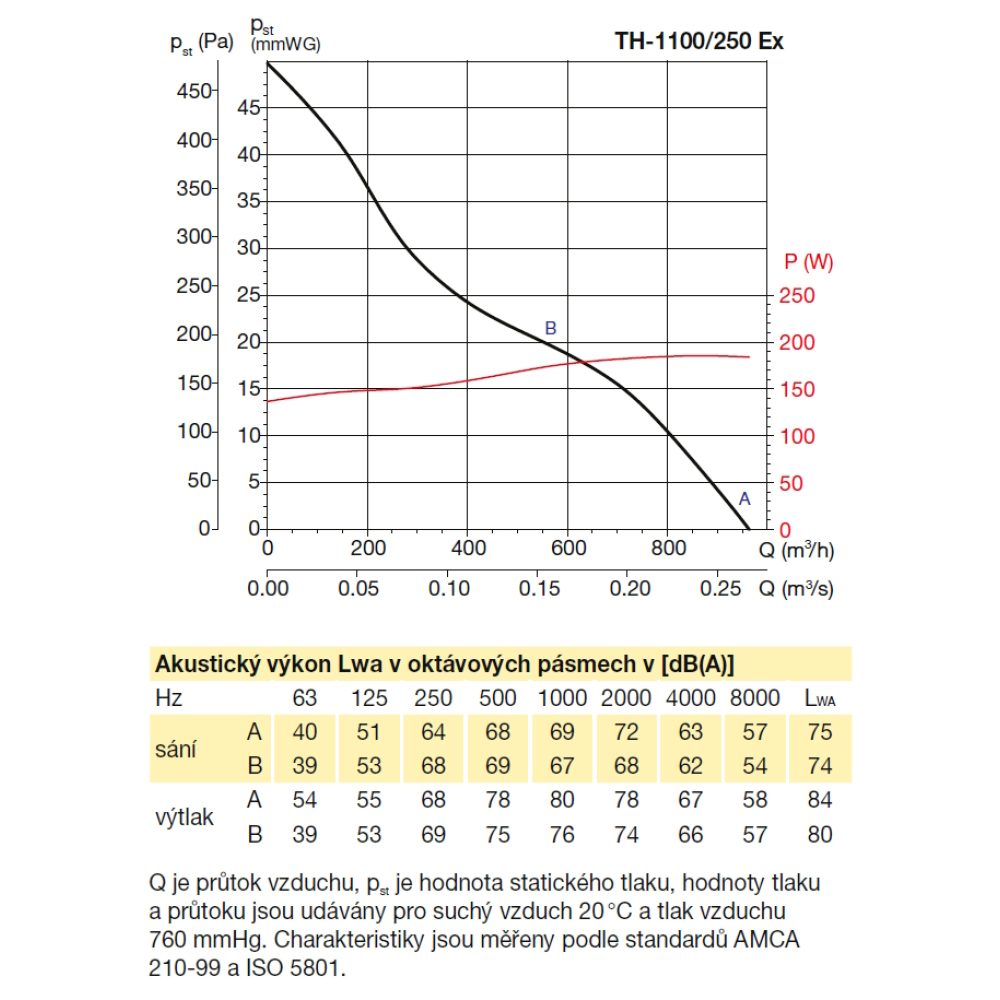

Noise
emitted by the fan is given in the tables.
Accessories
- KAA Ex flexible cuff

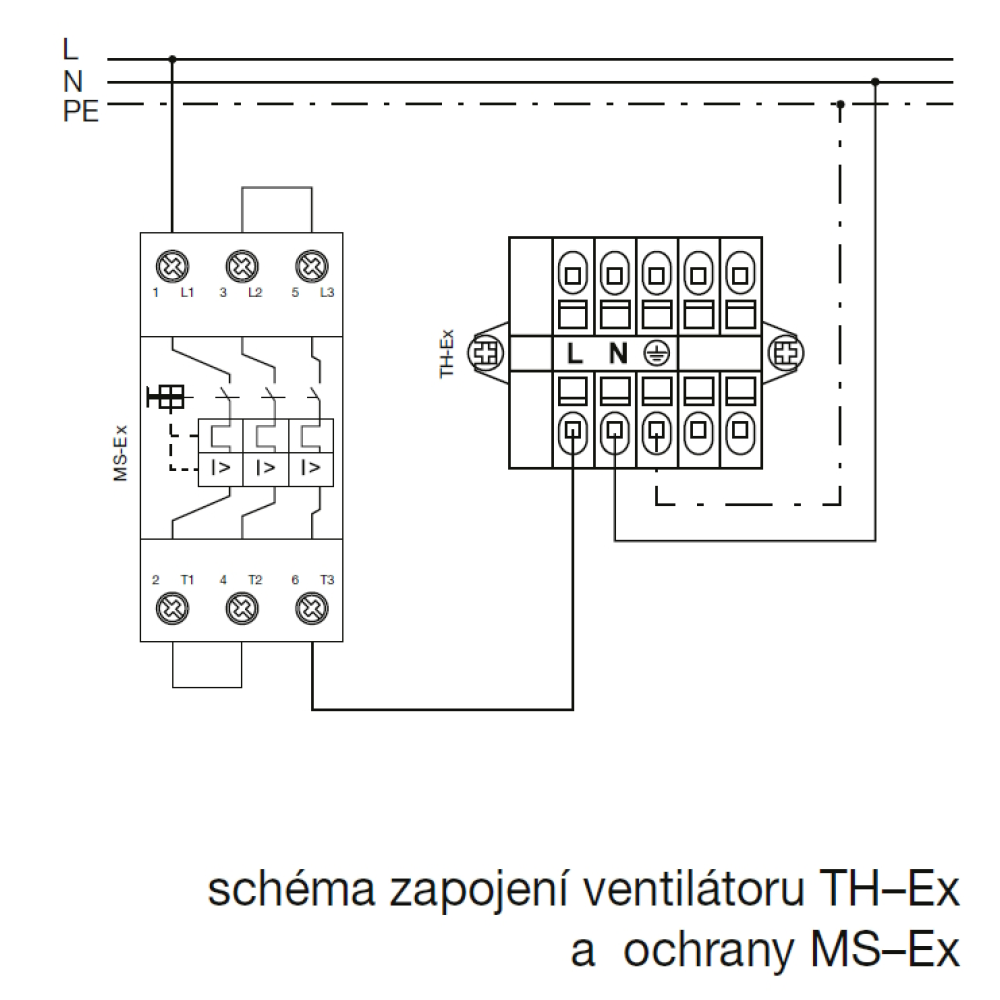

- MS Ex motor protection
Instructions
Attention, the fans are in a special design for CR. The values In, Ia/In (2) and te (60 s) indicated on the fan label are decisive for the fitting of the safety elements and thus the safe operation of the fan. These values must be checked carefully after delivery of the fan.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
