Cabinet

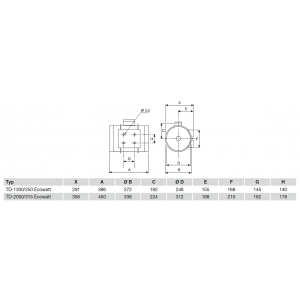

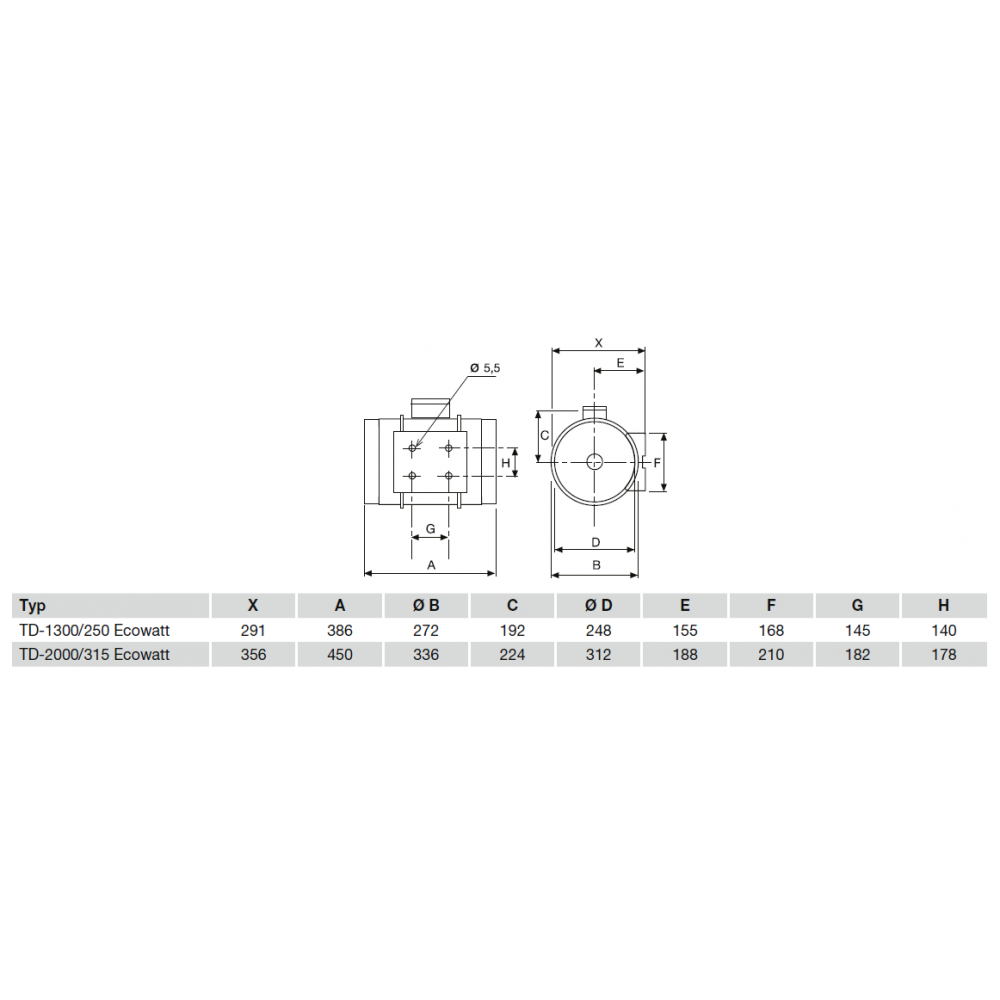

The enclosures of the TD-160 to TD-800 fans are made of plastic, while the TD-1300 and TD-2000 models are made of sheet steel. The design allows the motor section to be removed without having to disconnect the ductwork.
Running wheel
The impeller is either plastic (TD-160 to TD-800) or aluminium (TD-1300 and TD-2000).
Motor
EC motor with thermal and electronic overload protection. Bearings are ball bearings with grease packing for life. Protection class II (TD-1300, TD-2000 protection class I), protection class IP44.
Screwdriver
The terminal block is located on the fan housing, where the fully integrated electronics are located.
Speed control

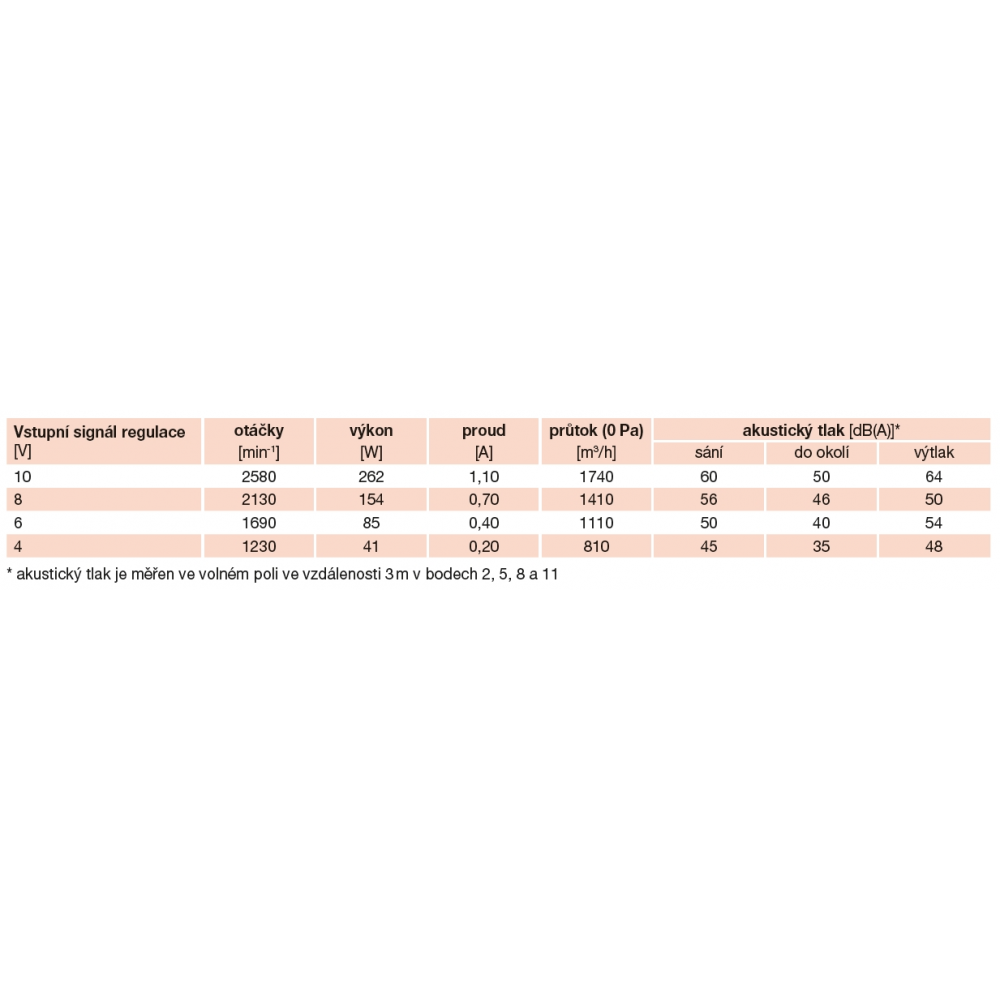

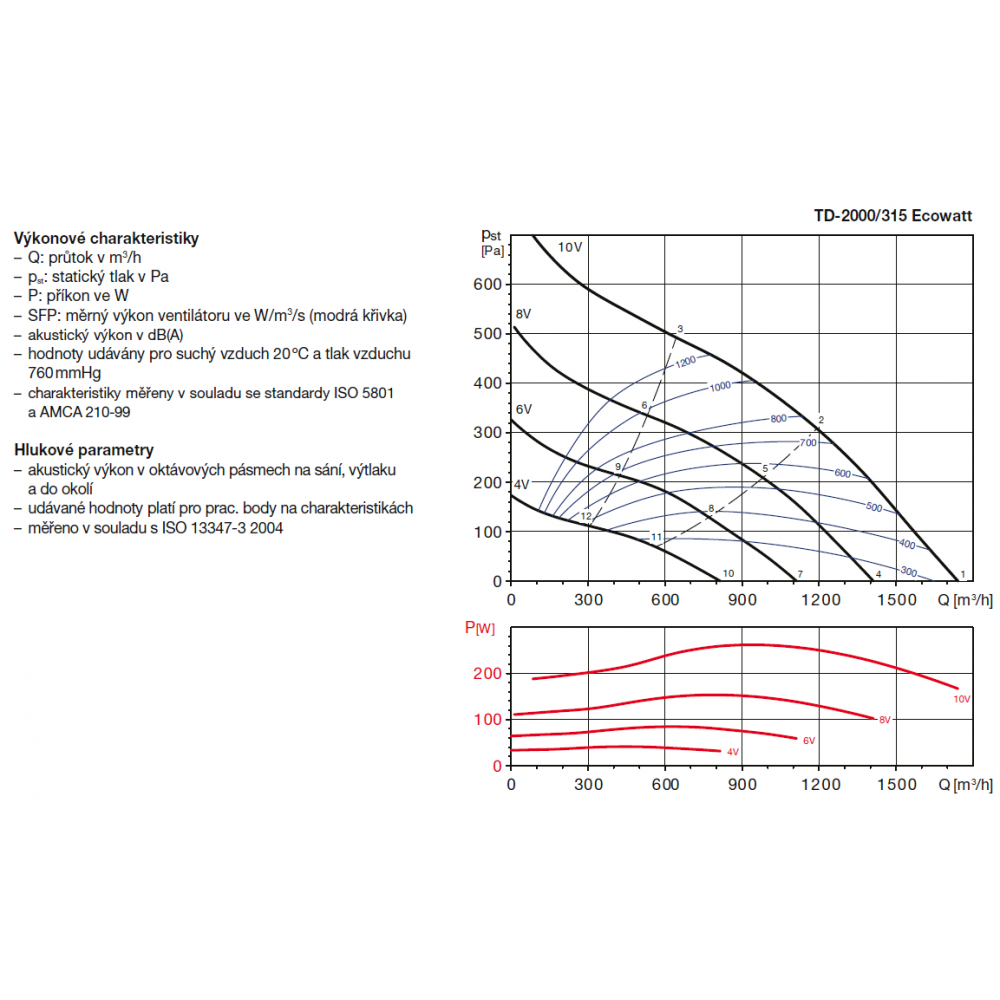

Motors are adjustable by a potentiometer located in the terminal box (except TD-160 Ecowatt) or by an external REB Ecowatt speed controller. The speed can also be controlled linearly by a 0-10 V DC signal.
Mounting
Fan mounting is possible in any fan position. The enclosure must not transmit mechanical stresses from the ductwork. A flexible connection to the ductwork must be used.
Instructions

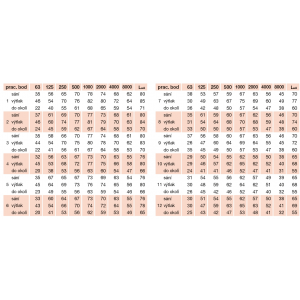

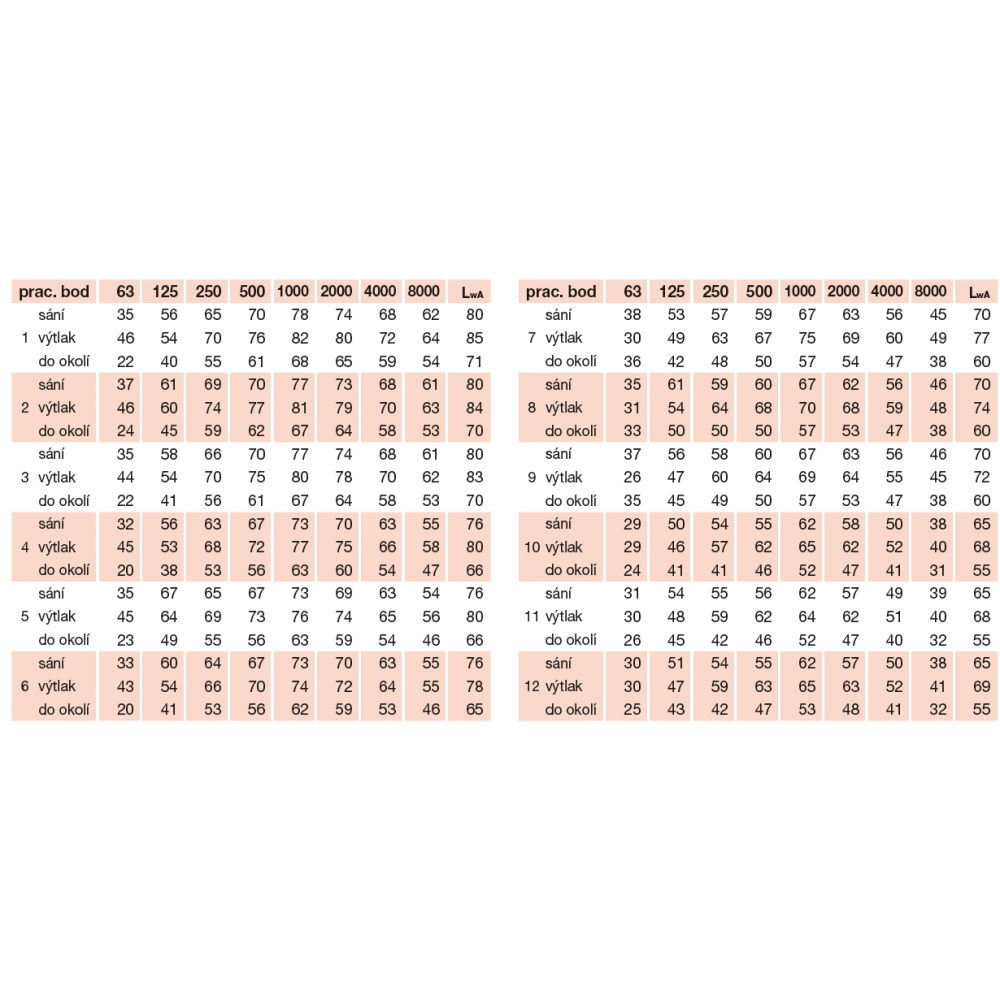

Due to their very low profile, high efficiency and low noise, the fans are suitable for demanding applications where their very economical operation is also applicable. They are also suitable for DCV (demand controlled ventilation) applications.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
