Cabinet
The base is made of galvanized steel plate, the suction ring is made of brass. The motor mounts are stainless steel, the discharge grille, canopy and other metal components are electroplated. The engine lies outside the air stream. The casing contains bird protection. The air exhaust is horizontal.
Running wheel
is radial with backward curved blades, made of galvanized steel with aluminum hub. Thanks to its special design, it has a high efficiency, it is statically and dynamically balanced. The operating temperature is from -20 to +60 °C.
Motor
is asynchronous with short armature, stator with cooling fins, in 4,6 and 8 pole versions Motor insulation is class F. Protection class IP55. Connection voltage 230/400 V-50 Hz.
Square box
is located under the fan cover. The terminal block is of explosion-proof design.
Speed control
The fans cannot be electrically or electronically controlled as standard. PTC motors with thermal protection can be supplied on request, regulated by recommended frequency converters.
Noise

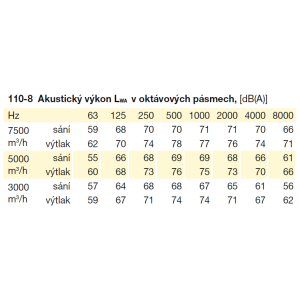

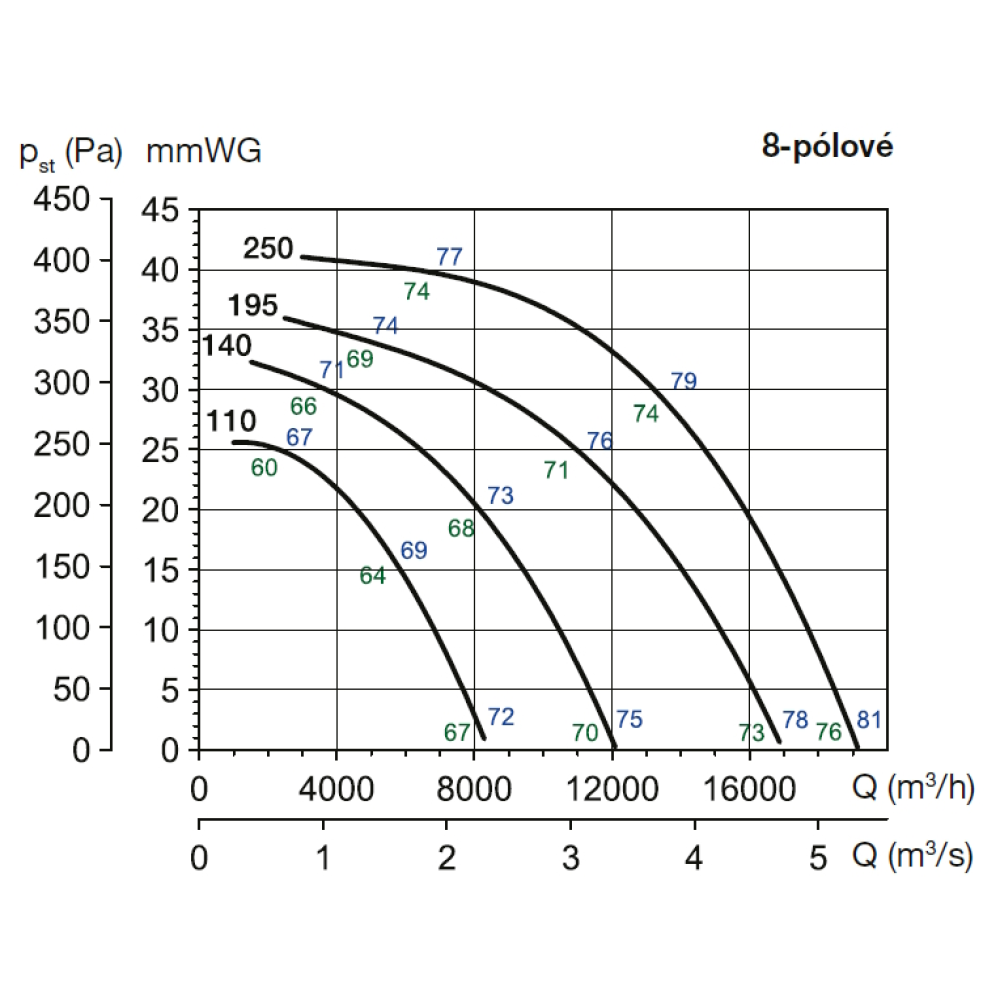

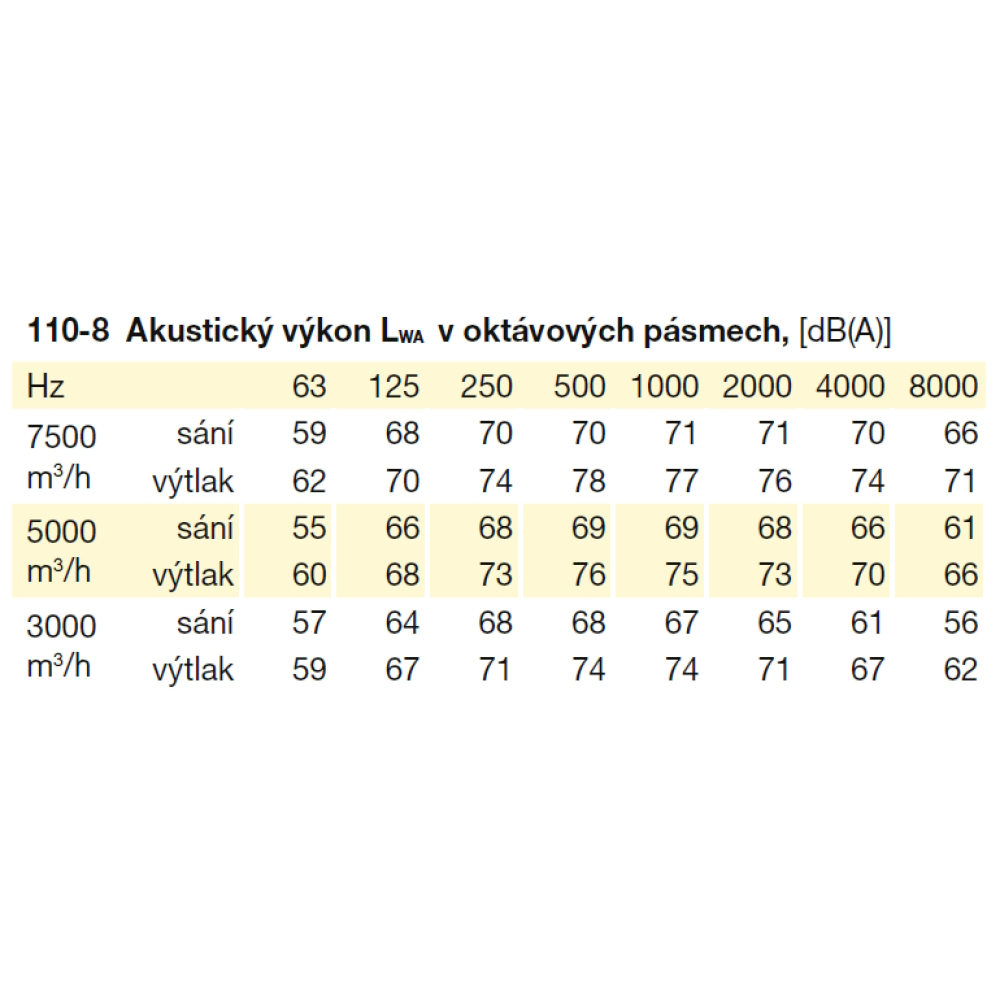

The tables show the sound pressure measured in the free acoustic field at a distance of 1.5 m. In the performance characteristics on the intake side (green) and on the discharge side (blue).
Accessories
- JBS mounting base
- JMS mounting frame
- JPA adapter for flange connection
Instructions
Inquire about special designs and currently available special accessories. Ask for information on delivery dates. Please note that the fans are in a special design for the Czech Republic. Spare parts supplied as standard by the manufacturer or trade organisations cannot be used.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
