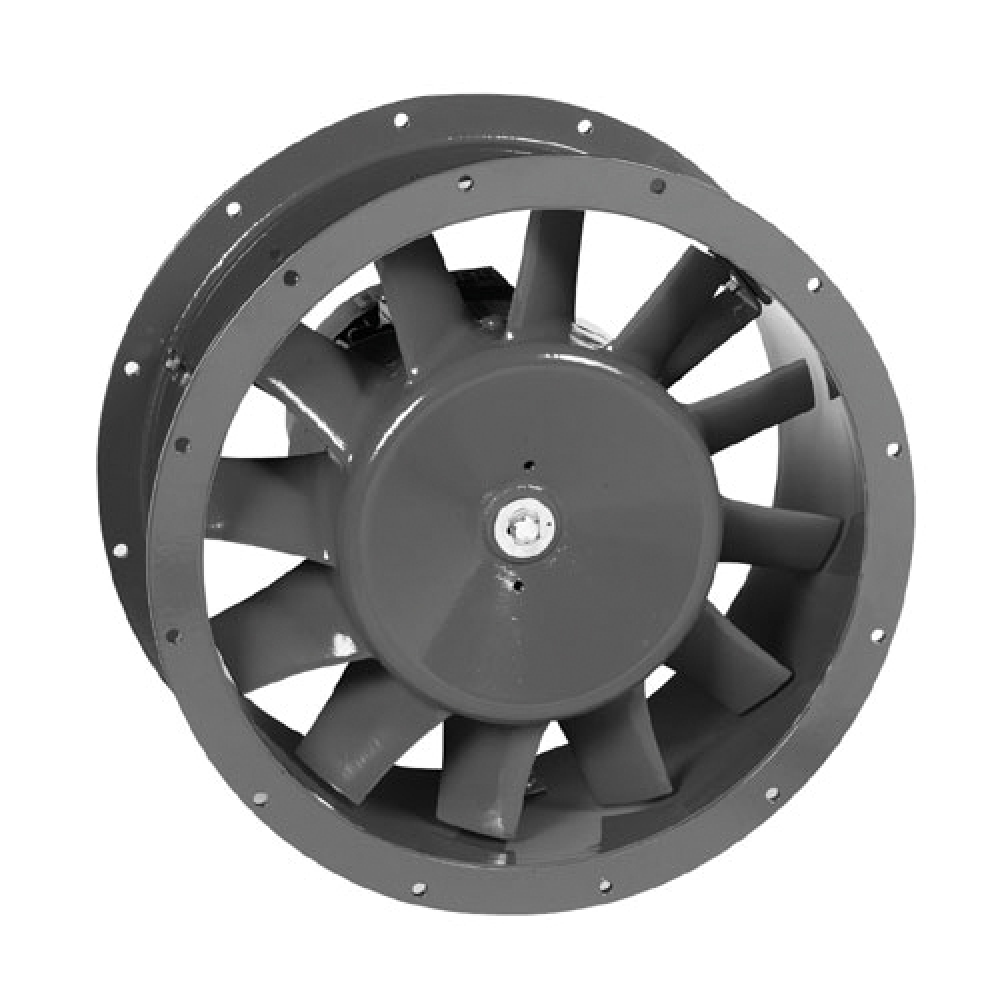

Cabinet
is welded from steel sheet, with flanges to the circular pipe, coated with protective paint in grey colour. Operating temperature is - 40 to +40 °C. The engine lies in the air stream.
Running wheel
is made of Al alloy coated with red protective paint. The impeller is statically and dynamically balanced. The impeller blade angle adjustment is fixed.

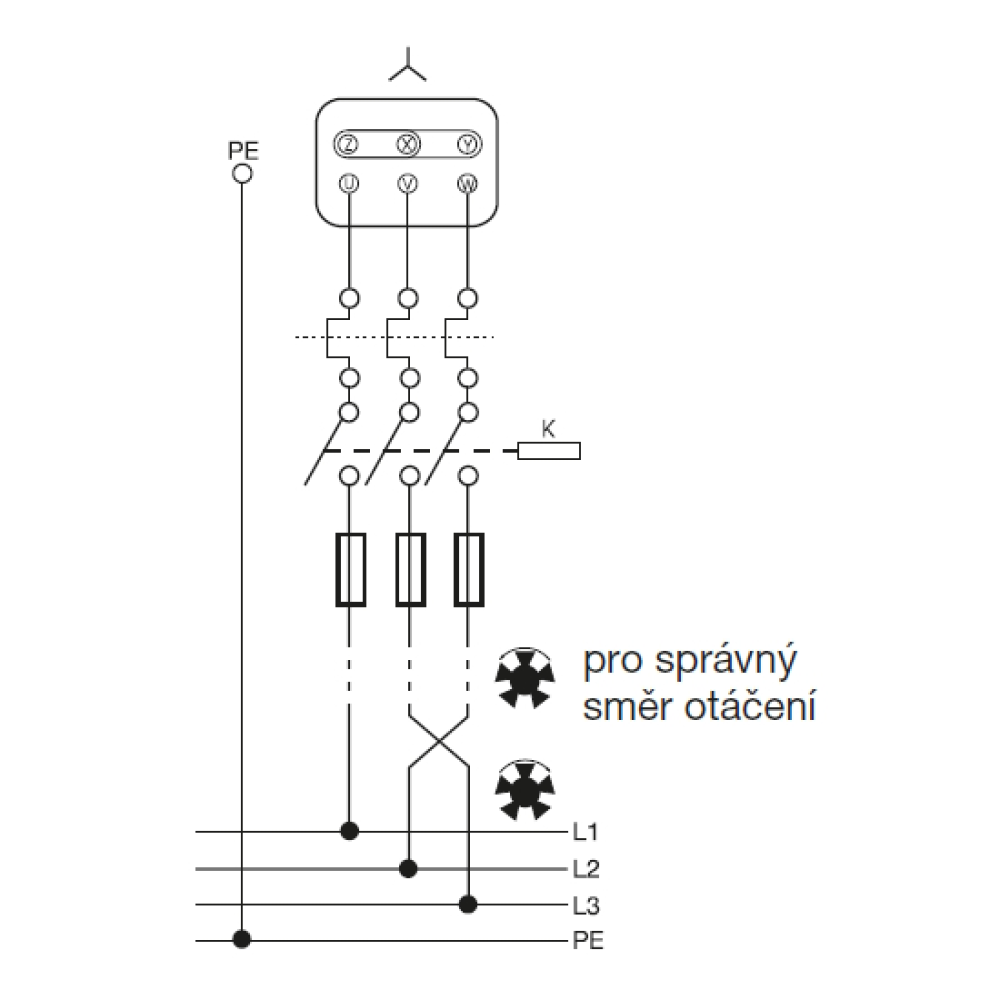

Motor
is asynchronous with short armature. Motor insulation is class F, motor protection is IP55. Grease-filled ball bearings for life.
Screwdriver
is located on the motor. IP55 protection.
Speed control
not possible.
Flow direction
is from the impeller to the motor.
Noise

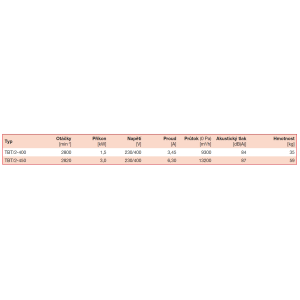

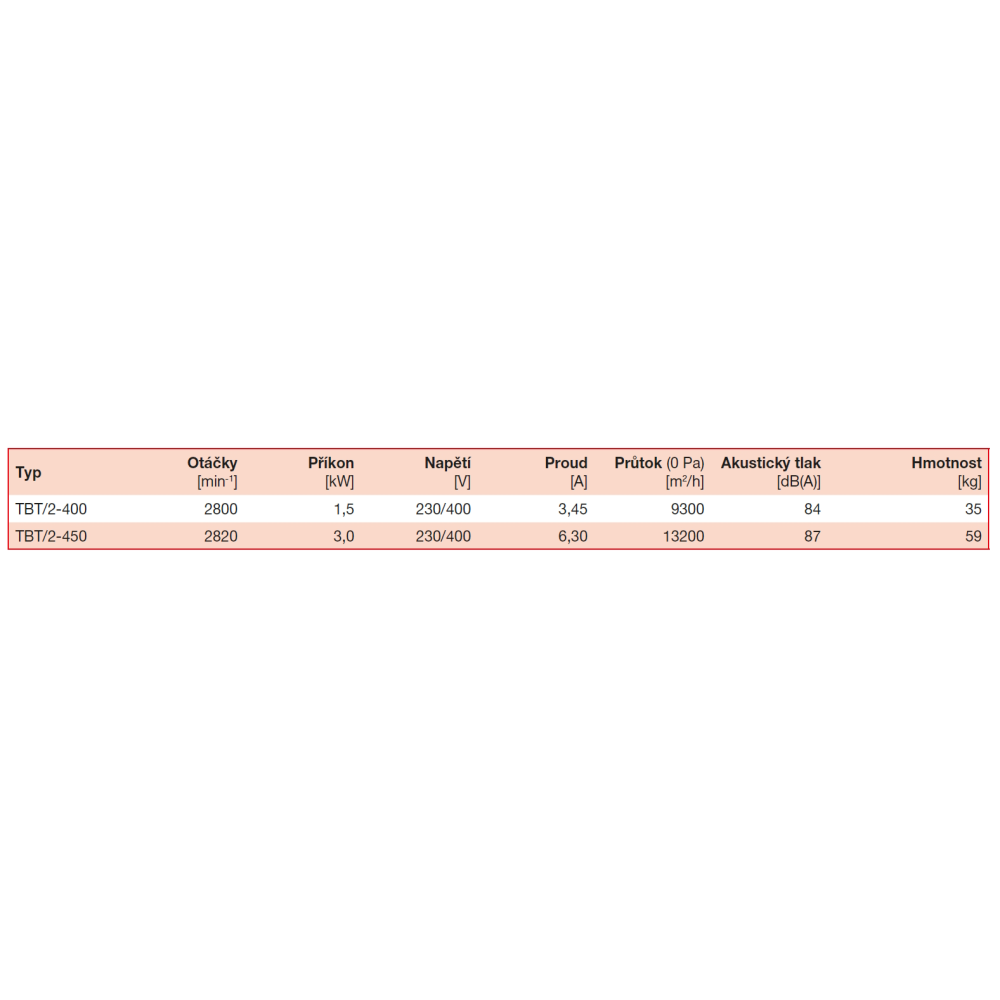

emitted by the fan is given in the table, the measurement is made at a distance equal to three times the impeller diameter (but at least 1.5 m) on the intake side.

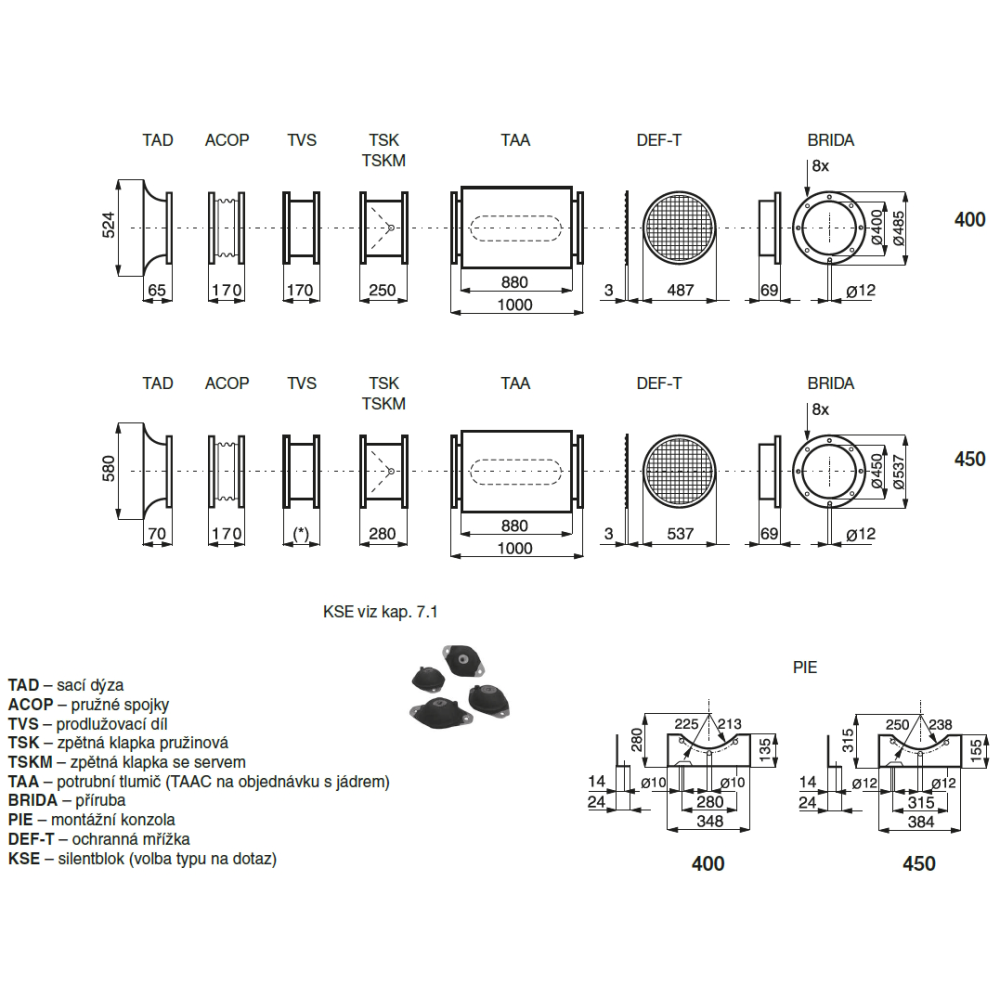

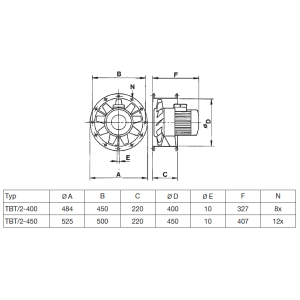

Mounting
fan in each position of the engine axis, preferably with the engine axis horizontal. The casing must not transmit mechanical stresses from the pipework.

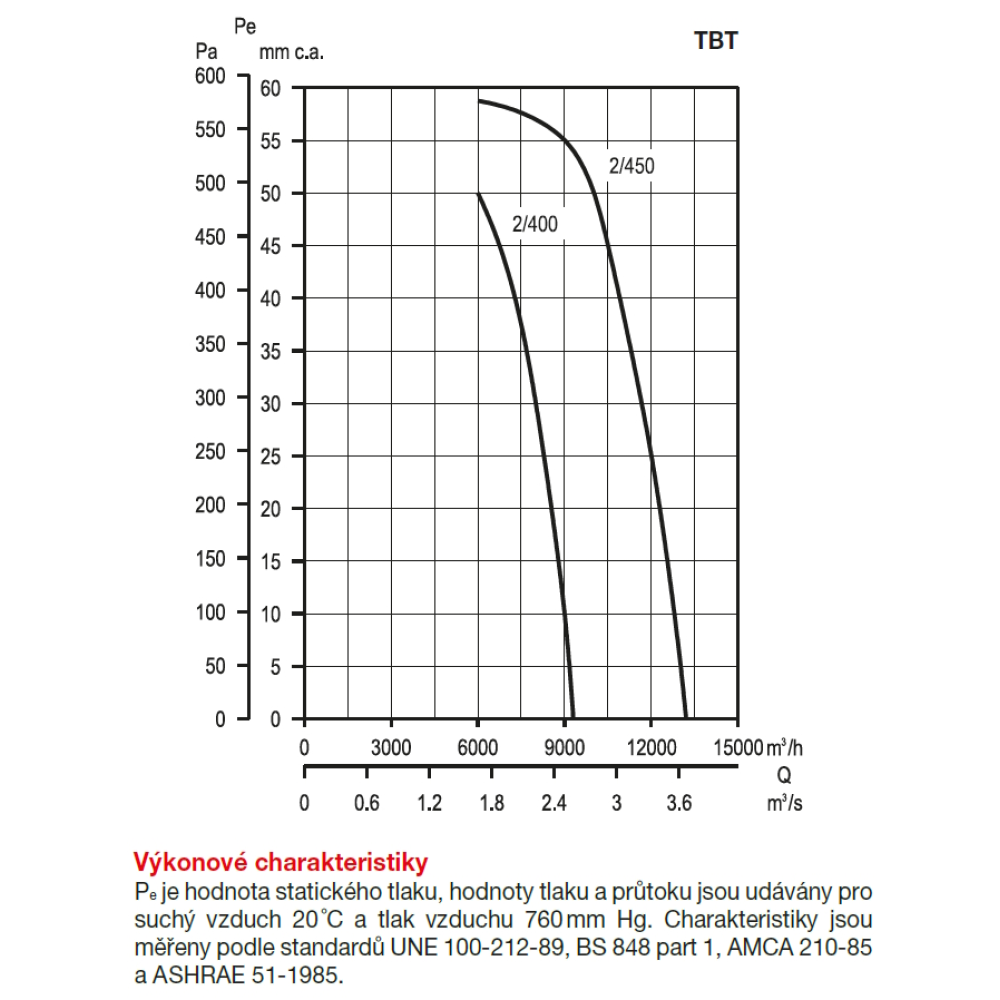

Instructions
Fans are suitable for piping systems in industrial applications with high pressure drop.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
