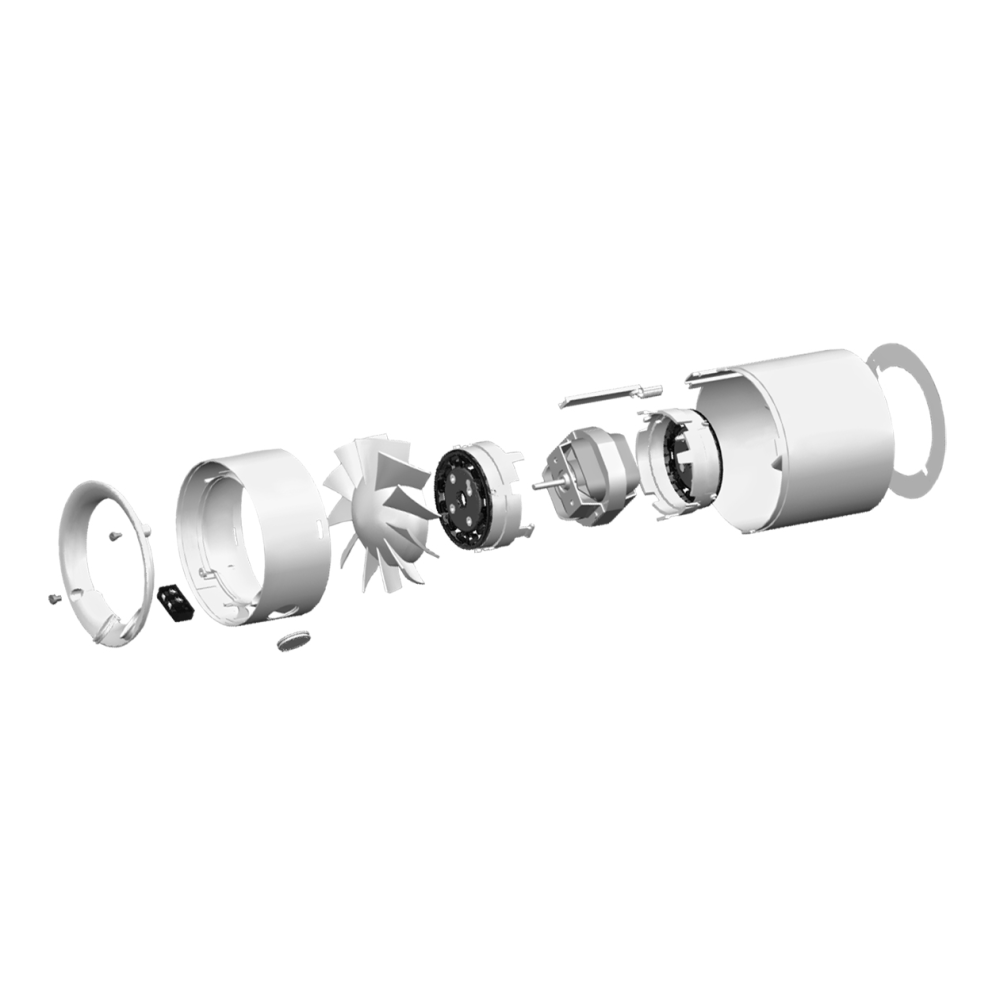

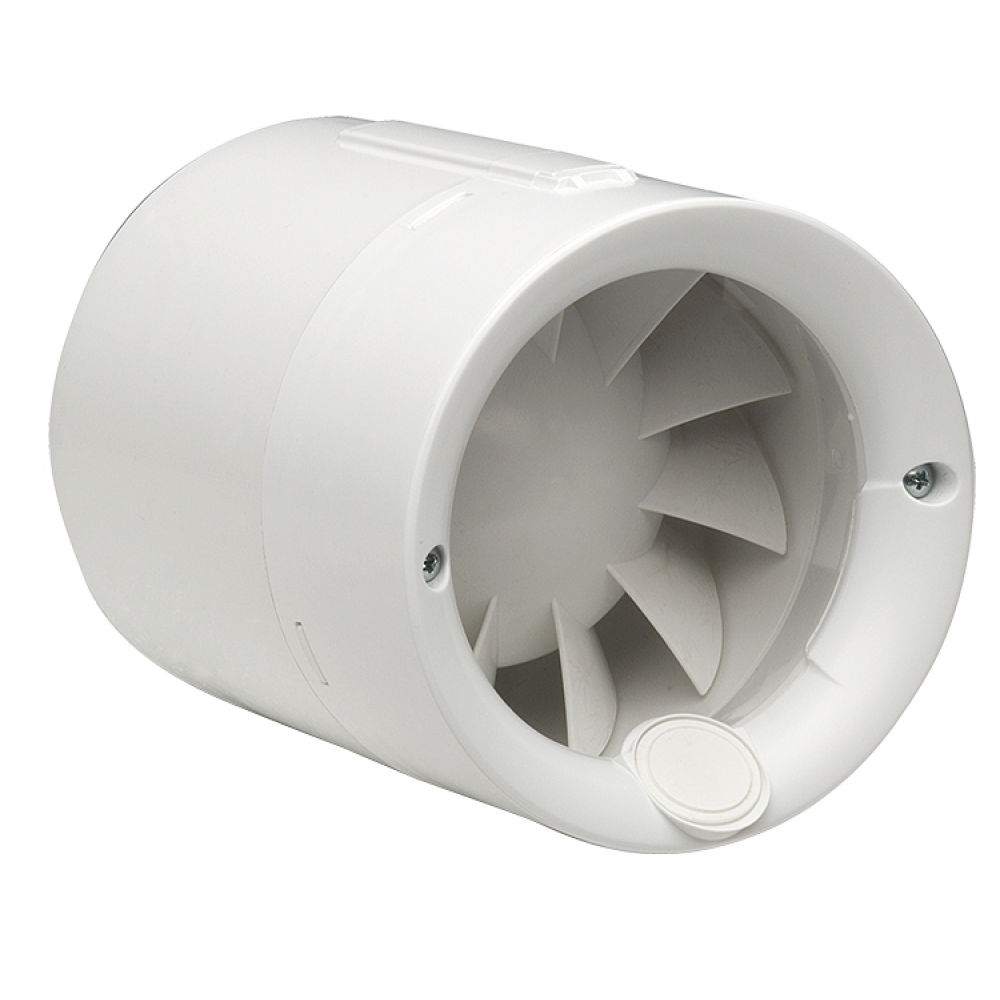

Cabinet
The cabinet is made of high quality impact resistant plastic, the colour is white. The cabinet is designed to be inserted into the pipe. To increase the pressure, the enclosure contains a distributor wheel with optimized blade shape.
Circulating wheel
The impeller is diagonal made of high quality impact resistant plastic. It is secured to the shaft by a steel spring.

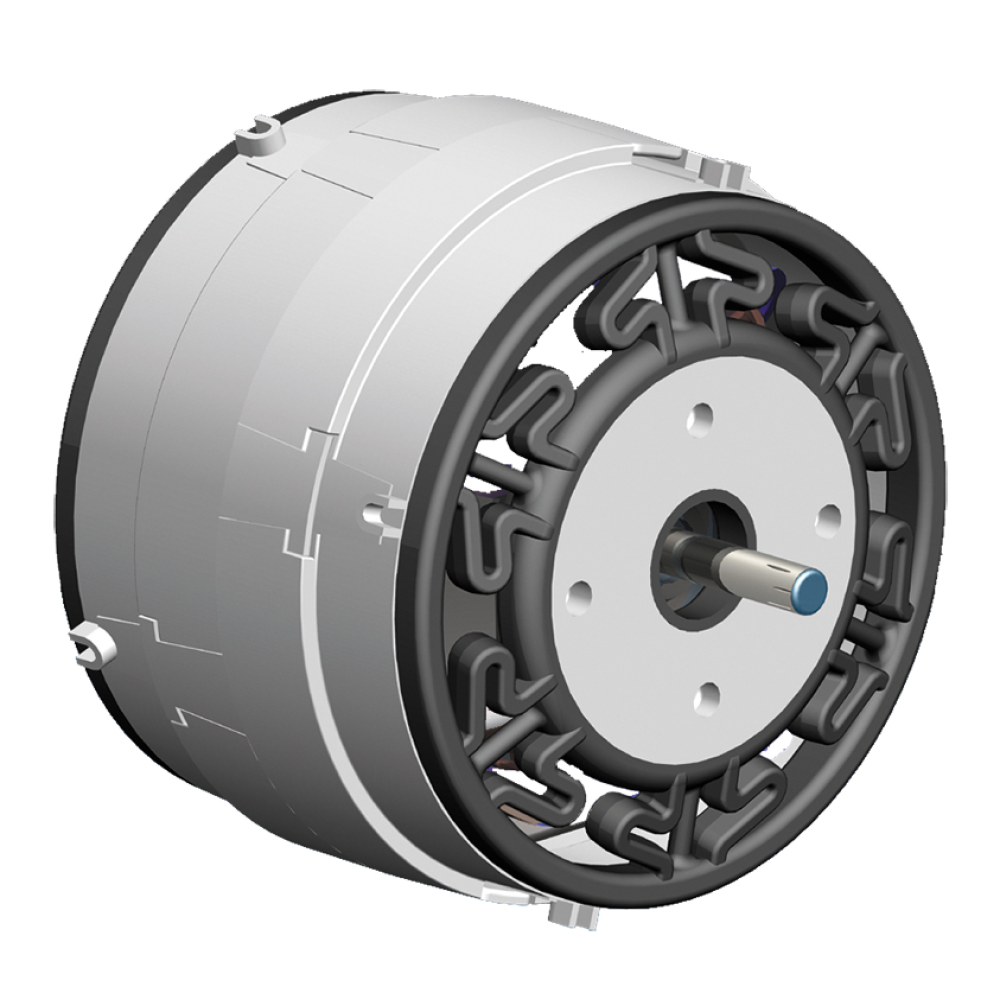

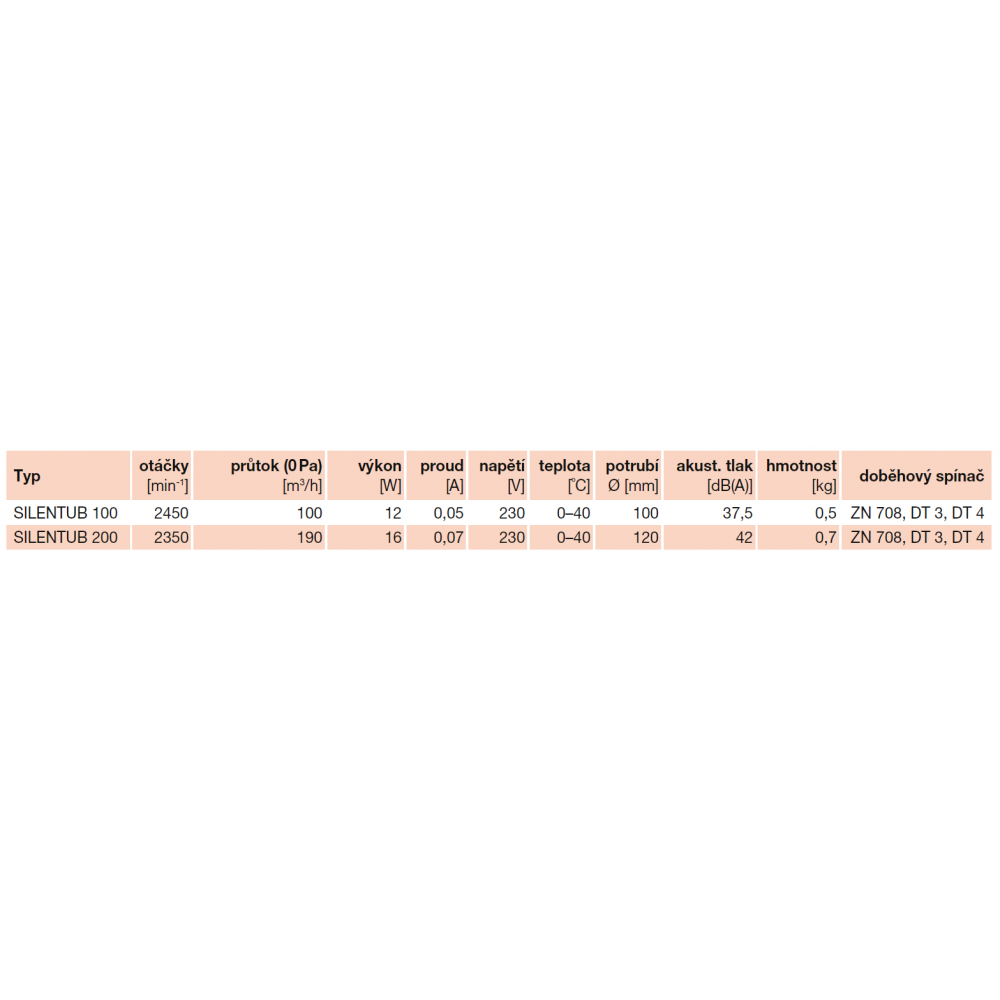

Motor
The motor is asynchronous, equipped with overload protection. It is designed for continuous operation. The motor has ball bearings. The maximum ambient temperature is 40 °C. Double insulated design, IP44 protection.

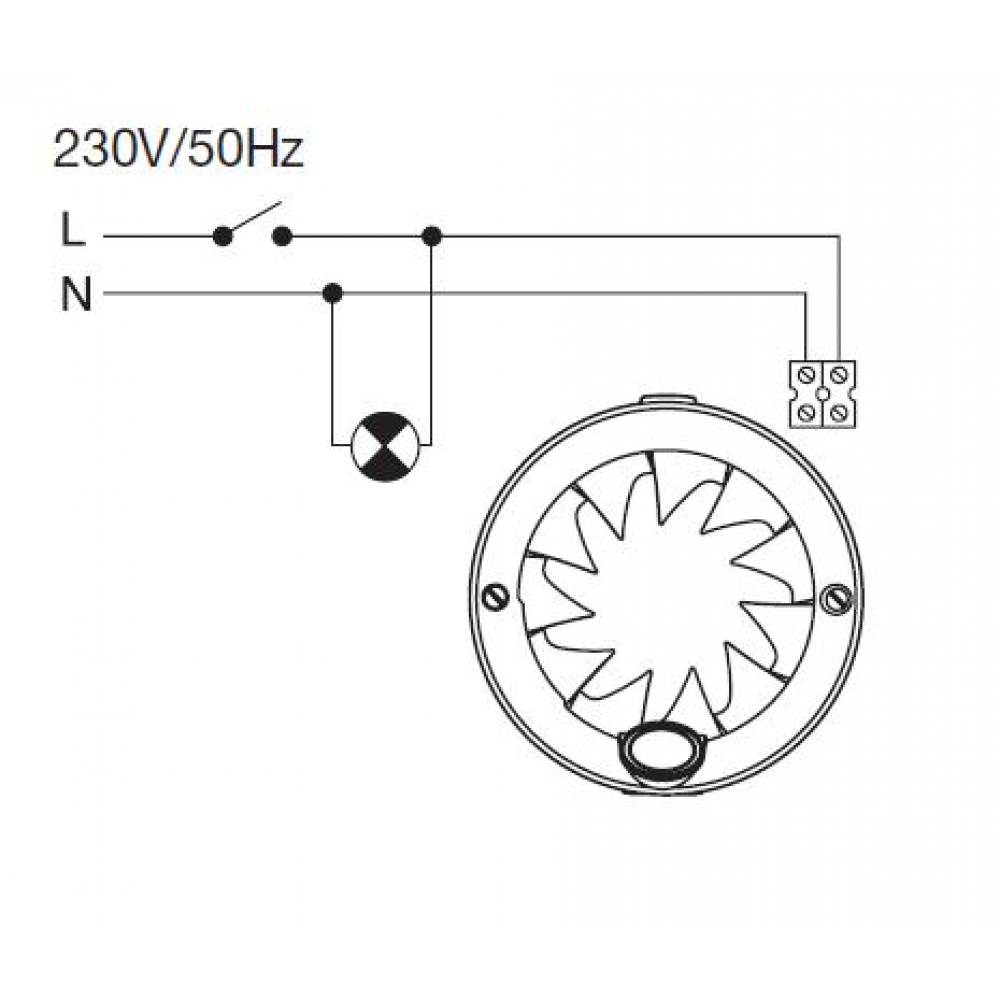

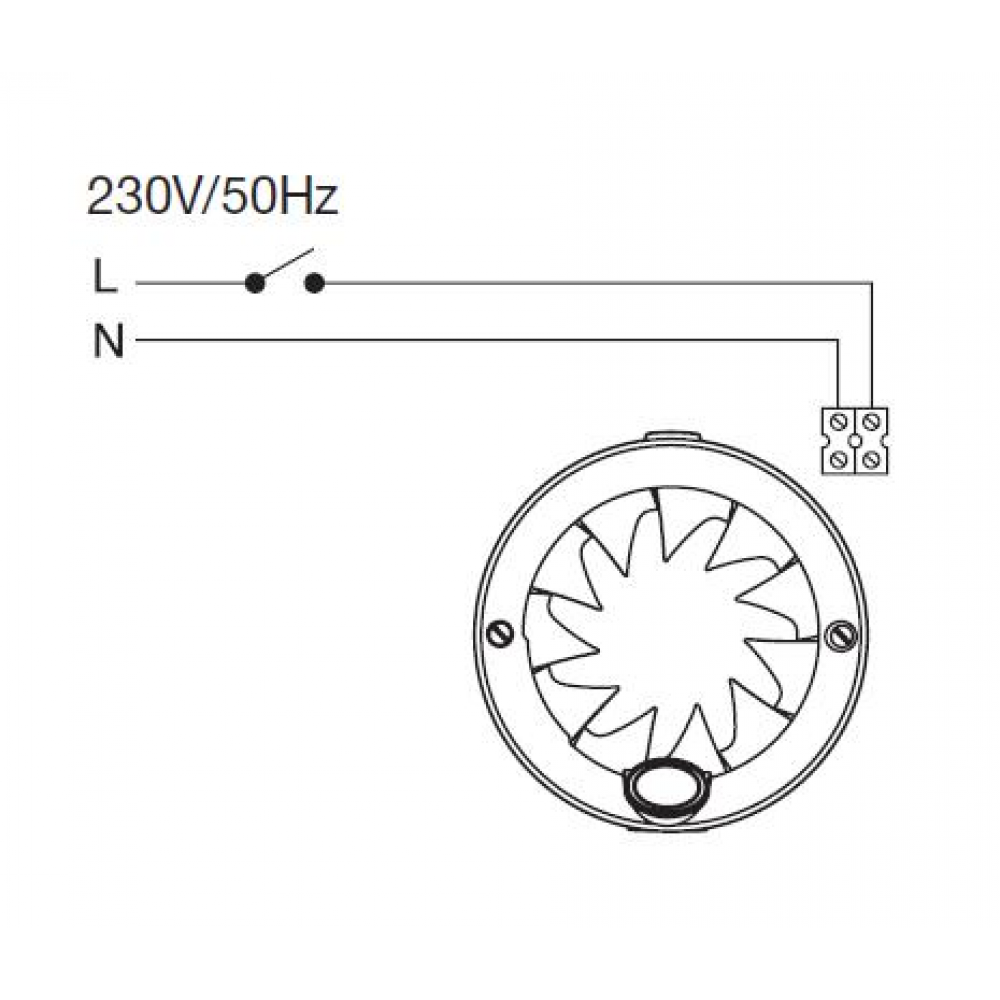

Square box
The terminal box is accessible by unscrewing the cover on the motor with cable grommet. The terminal block includes a cable relief clip to prevent cable pullout.
Speed control
Speed regulation is carried out by changing the voltage with special regulators.

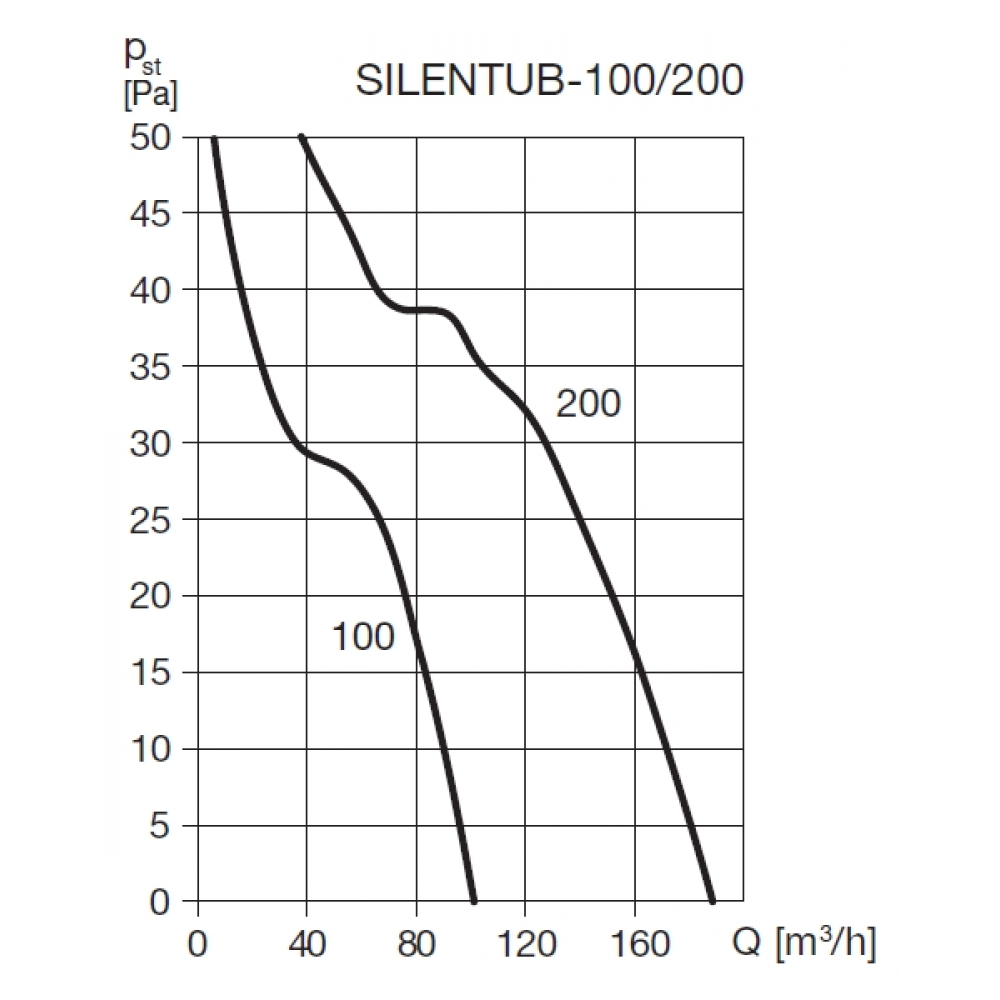

Noise
The noise emitted by the fan is measured at a distance of 1.5 m in the axis of the fan on the suction side.

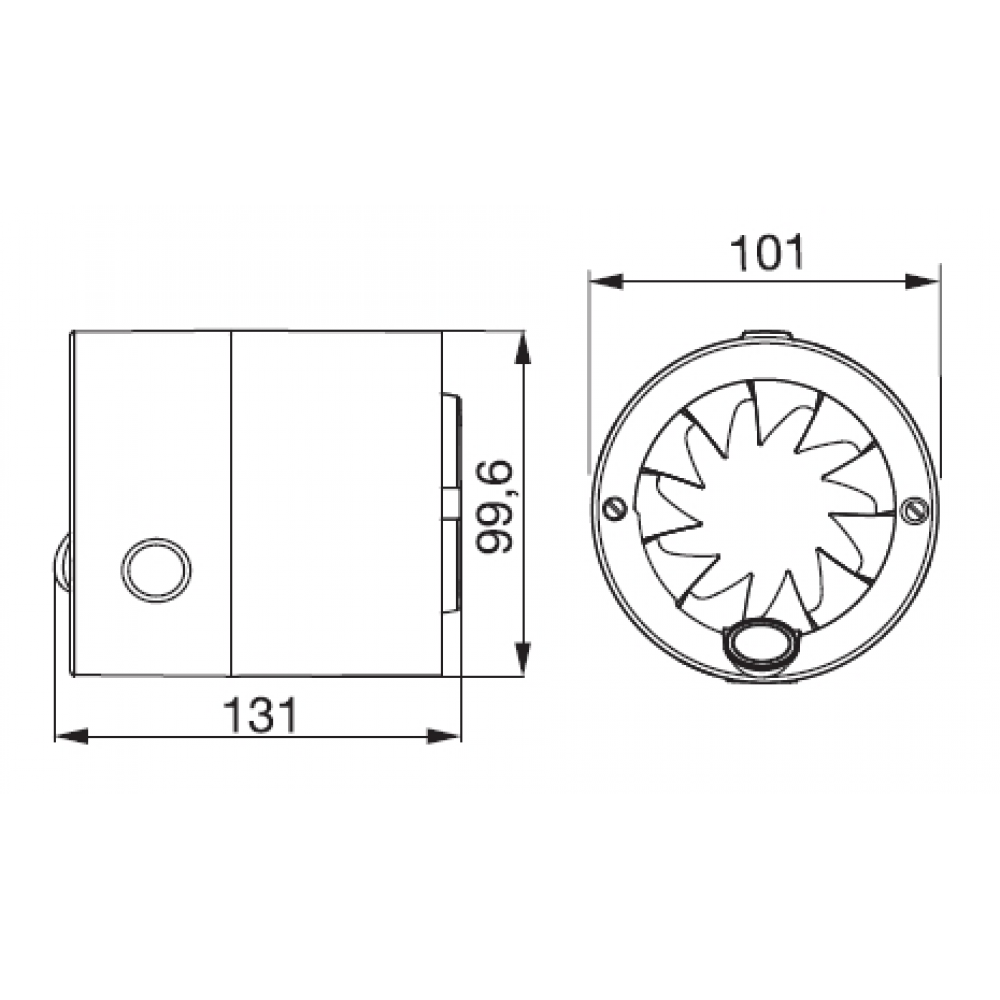

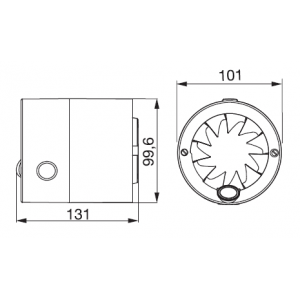

Mounting

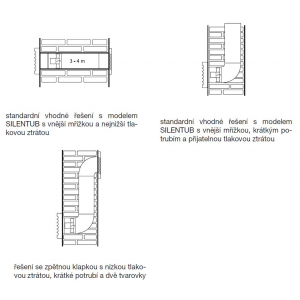

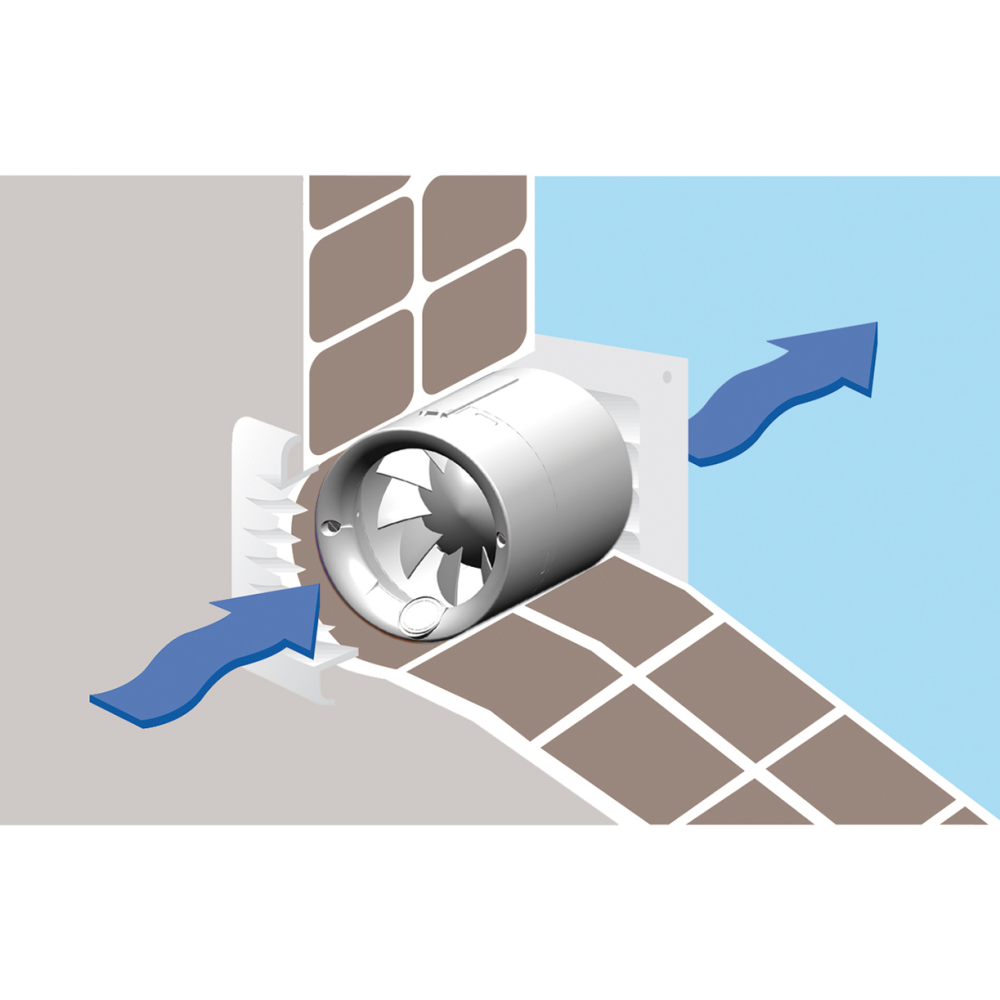

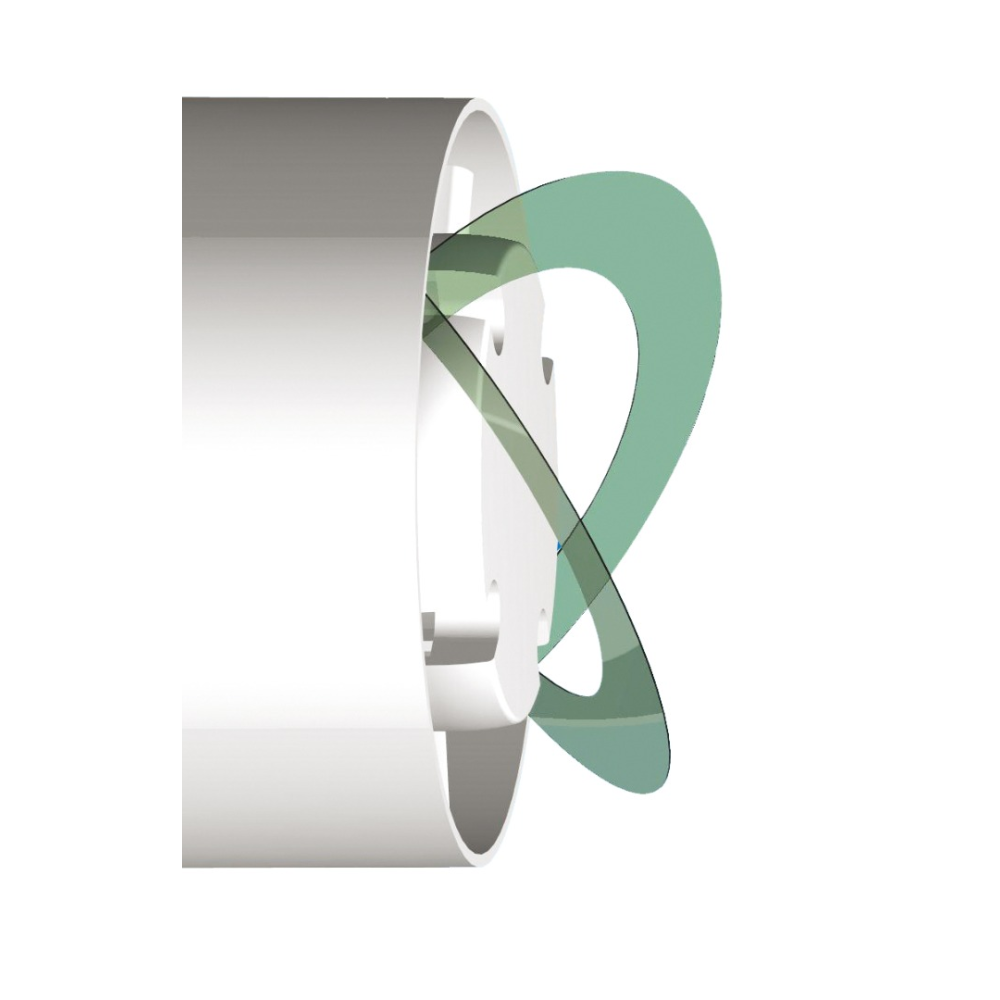

Can be mounted in any position, but so that the mechanical damper is closed when the fan is idle. It is inserted into the wall or duct, or attached to the wall or ceiling using a PIE 100/120 cuff.
Instructions
The fan features a very low noise level, which is achieved by placing the motor in a special silent block.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
