Cabinet
The cabinet is made of impact-resistant plastic, the colour is white or silver (see variants). The cabinet is designed for wall mounting. The fans include a patented check damper.
Running wheel
The impeller is axial, made of high quality impact resistant plastic.
Motor
The motor is asynchronous. The motor is equipped with overload protection. The maximum operating ambient temperature is 40 ˚C. The motor has grease-filled ball bearings for life. Protection class IP45, insulation class II.
Square box

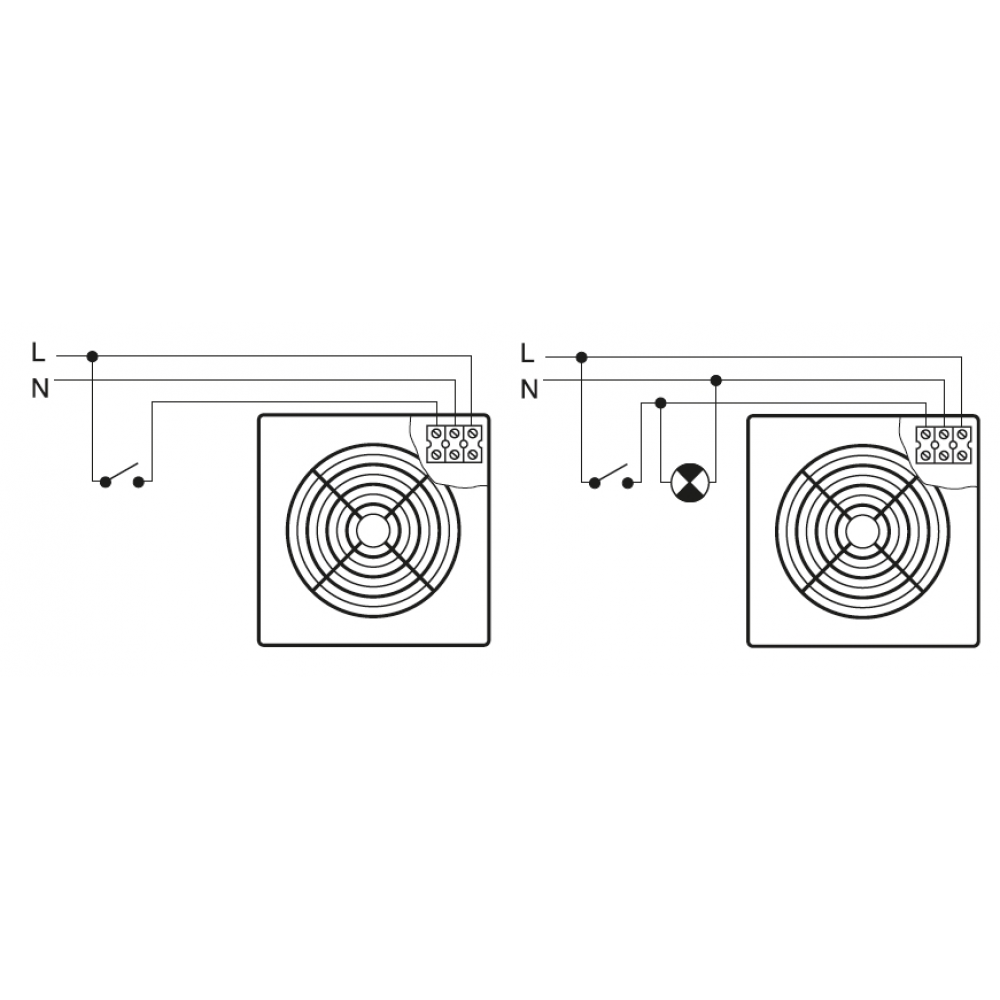

The terminal box is accessible by removing the front fan grille. Connection is via a concealed cable.
Speed control
Speed control is done by changing the voltage with special controllers.
Noise
Emitted by the fan is measured at a distance of 3 m in the free acoustic field.
Variants
C - version with return damper
Z - ball bearings
R - adjustable timing up to 30 minutes
H - hygrostat and adjustable timing 1-30 minutes

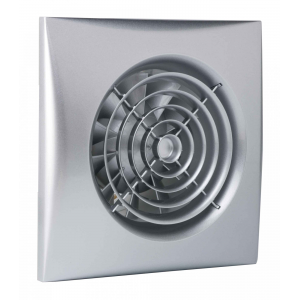

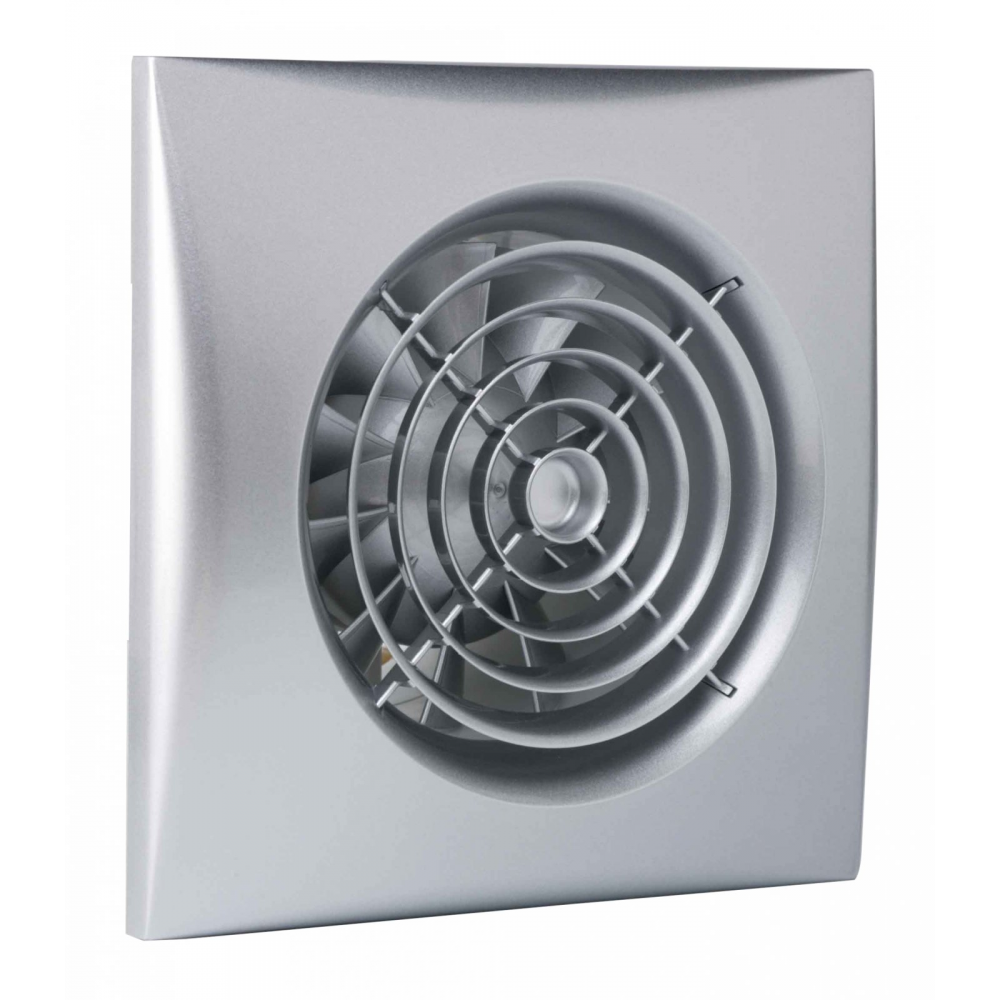

SILVER - version in silver colour
Mounting
Mounting without limitation horizontally and vertically. Fixing with four screws under the fan grille. Screws and dowels included.
Instructions
The fans are suitable for short ducts with low pressure drop or for direct through-wall ventilation. The R variant can be actuated by a push button.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
