Send emailREG 230/400 is a triac controller suitable for controlling electric heaters with 1 phase (230 V) or 2 phase (2×400 V). The control is performed by changing the on-off interval (normally 60 seconds). Switching off is done at zero current, so there is no interference with communication equipment. The controller can be used in the following mode:
- a room thermostat to control depending on the room temperature (according to the temperature near the controller) and according to the setting of the controller on the device

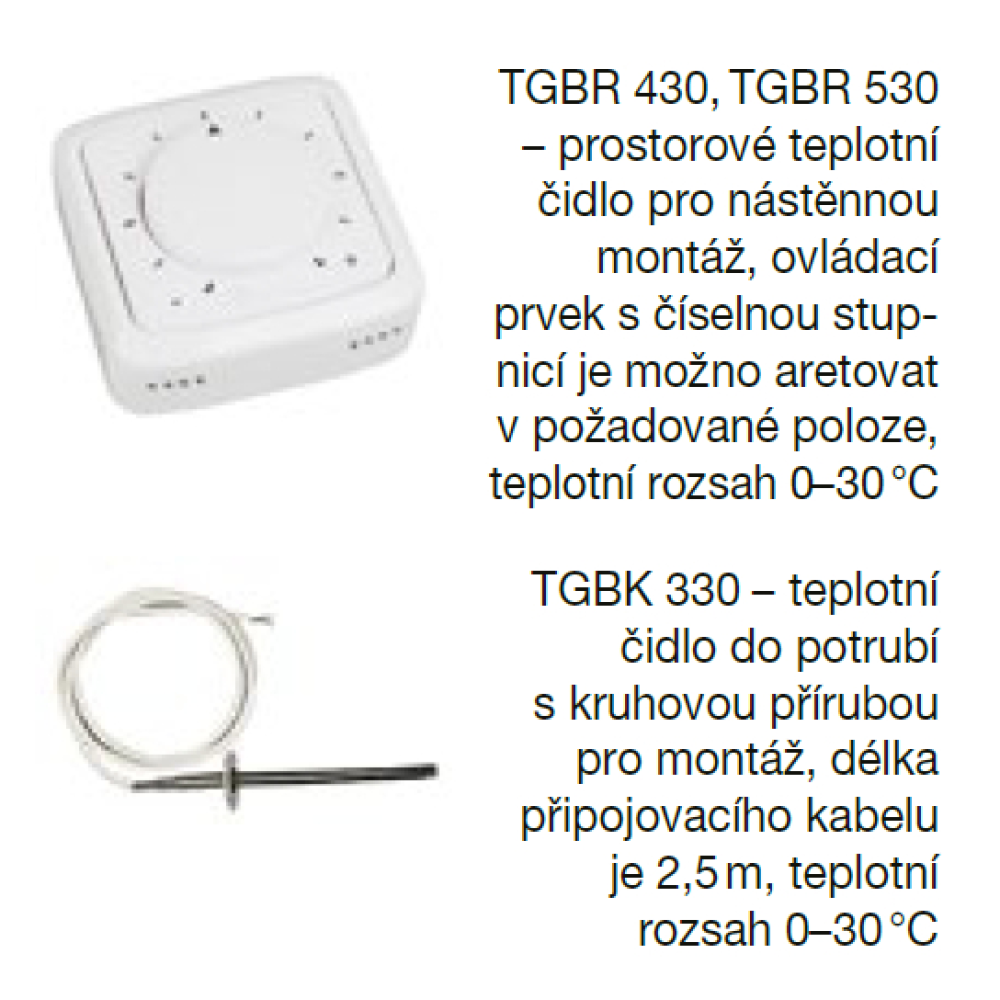

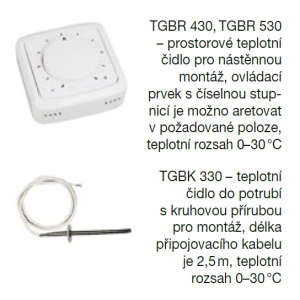

- in conjunction with a TGBK thermistor sensor in the pipe to control the temperature in the pipe to the temperature set on the device controller (not included)
- in conjunction with a TGBR room controller placed at a greater distance from the controller itself to control depending on the room temperature, internal thermistor sensor disconnected
The limitation of the maximum or minimum supply air temperature is made by connecting the TGBK 330 sensor to the MM terminals. The minimum or maximum temperature is set by a potentiometer in the range 0-30 °C.
Depending on the selected mode (controller or sensor), the "DIP" switches inside the controller, which are accessible after removing the cover, must be set correctly.
- IP20 protection
- the controllers have overheating protection
- with the use of external switching clocks it is possible to ensure a night temperature drop of 0-3 °C
- the controller is designed for normal environments, temperature range 0-30 °C
- dimensions 92 × 34 × 150 mm (W × H × D)
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
