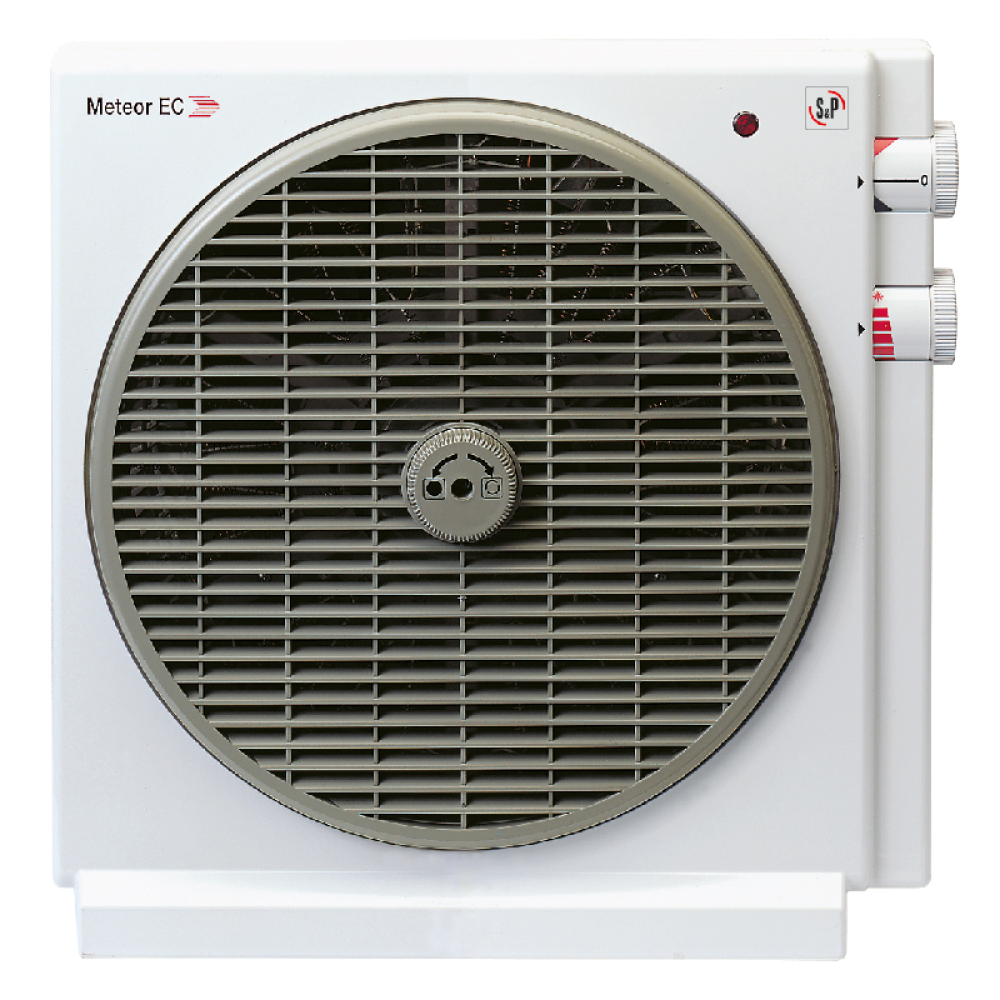

Meteor EC table axial fan

Desktop axial fans suitable for ventilation of residential and commercial areas.

B2B clients will see their prices after logging in

4 893,00 CZK excl. VAT

5 920,53 CZK incl. VAT

Availability: In stock [24.8.2025, 04:10] Update

Add to project

Insert into the design HVAC program

Insert into EasyVent

Product code: SP182100010

EAN: 8413893080271

Manufacturer: S&P SISTEMAS DE VENTILACIÓN, S.L.U. Read moreRead less

S&P SISTEMAS DE VENTILACIÓN, S.L.U.
Llevant, 4
Polígono Industrial Llevant
08150 Parets del Vallès
Barcelona – Spain
consultas[zav]solerpalau[teč]com
www.solerpalau.com/en-en/home

Product description

Cabinet

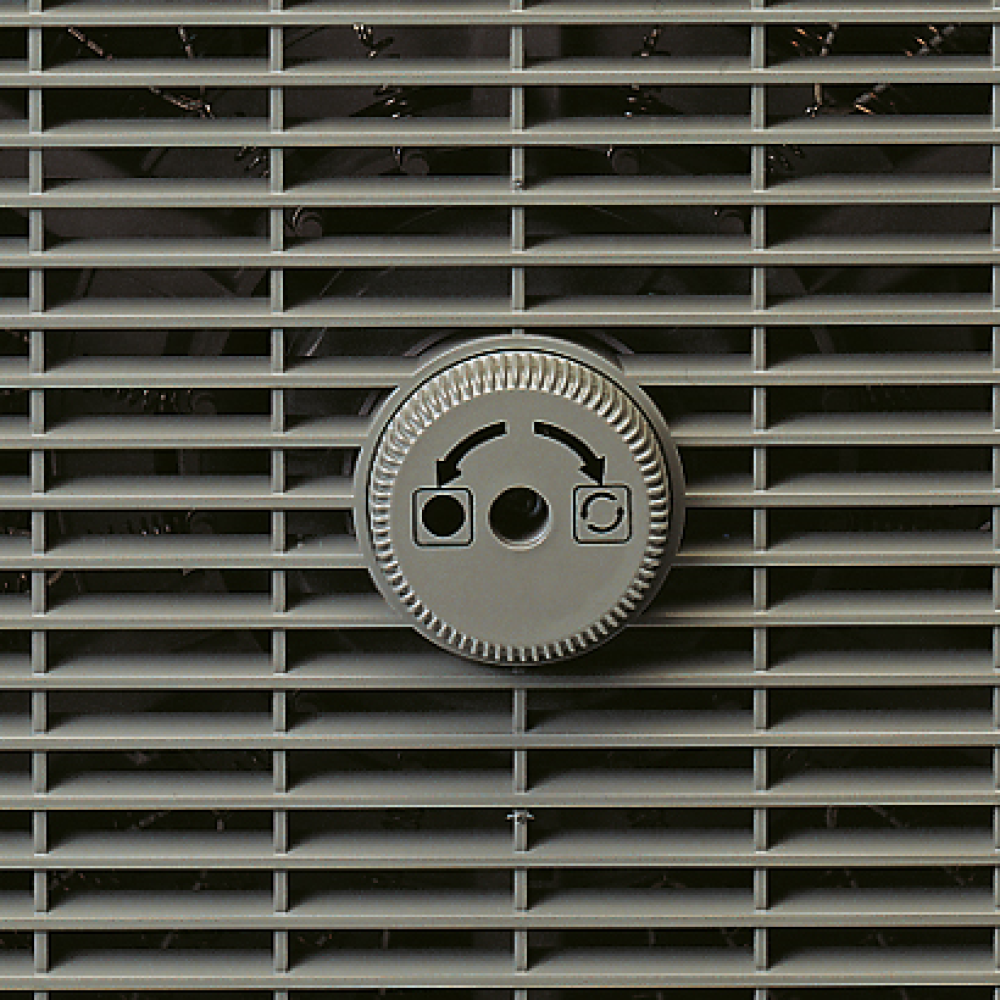

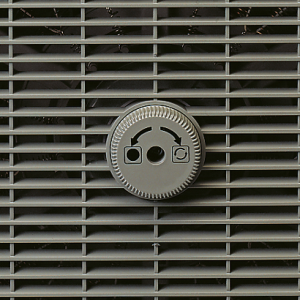

It is made of impact-resistant plastic, the colour is grey. The fan is equipped with an oscillating front plastic grille. During operation the grille rotates around its axis in the full 360° range, thus changing the direction of the air flow, the rotation of the grille can be switched off. Controls are located on the fan housing. The protection against objects entering through the front grille complies with EN 60335-1 and EN 60335-2-80.

Running wheel

is axial, made of impact-resistant plastic, SICKLE shape (specially optimised for performance and noise).

Motor

is asynchronous with auxiliary phase. The motor has plain bearings. Design with double insulation and thermal protection in the motor winding.

Flow direction

is from the motor to the impeller.

Electric connection

is a moving lead with mains plug. The cable length is 1.6 m.

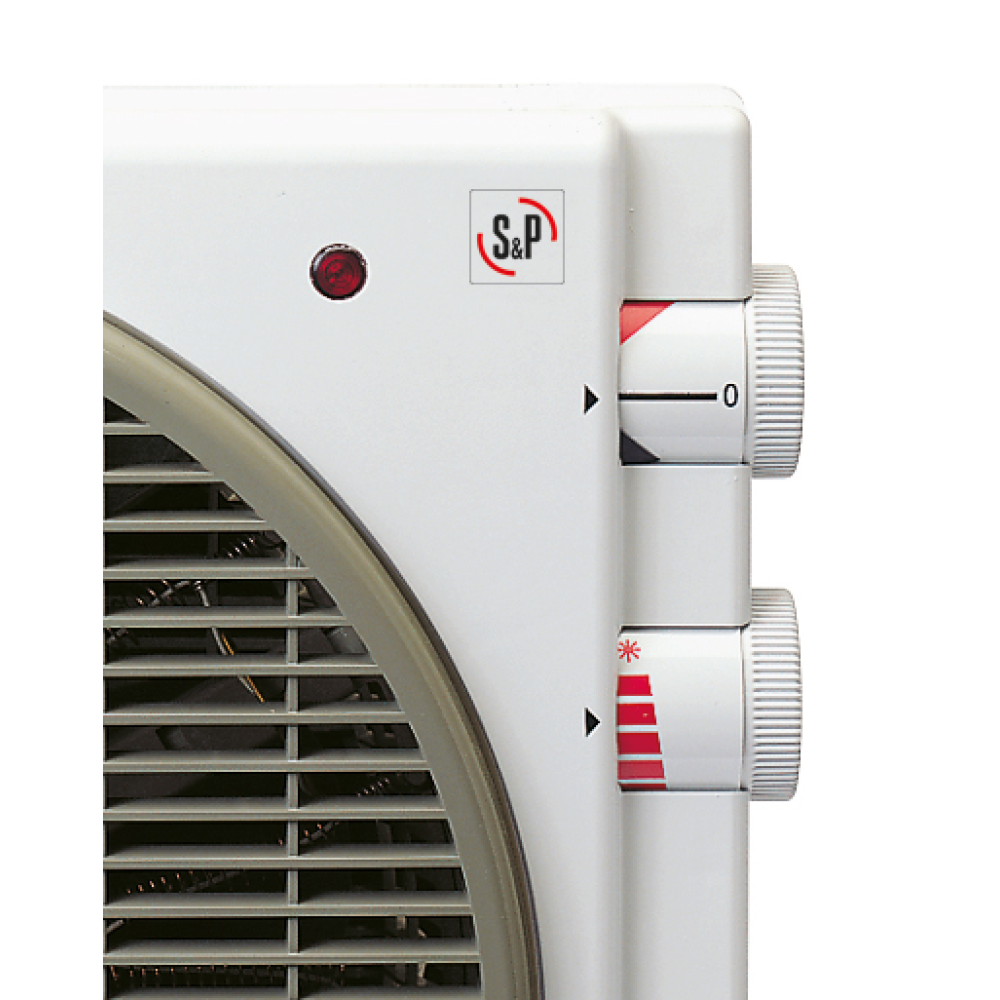

Speed control

Use the two rotary switches on the side of the cabinet to control mode switching (no air heating/heating), speed control (3 stages for no air heating operation and 1 stage for air heating operation) and adjustable thermostat 5 to 35 °C. The fan in warm air mode heats the air up to 40 °C. The front grille rotation is switched on the grille.

Mounting

is carried out by placing it on a solid base.

Instructions

The fan is suitable for ventilation of living rooms, offices, banks, restaurants, workshops, shops, etc. METEOR EC can also be conveniently used for heating cold rooms thanks to the possibility of heating the air. The fans comply with IEC 60879.

Full description

Safety regulations

Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:

• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.

Downloads

Technical sheets, manuals and declarations

Datasheet .pdf (62.24 kB)

Declaration of conformity .pdf (350.30 kB)
