Cabinet
It is made of galvanized steel sheet and is fitted with flanges for fixing to square pipes. There is a revision cover on the casing which, when removed, gives access to the motor and impeller.
Circulating wheel
is radial with backward curved blades, plastic (sizes 180 and 200) or aluminium (from size 225). It is statically and dynamically balanced.
Motor
EC motor with thermal overload protection. Grease-filled ball bearings for life. Protection IP44 (IRB Ecowatt) or IP54 (IRT Ecowatt), operating temperature -20°C to 40°C.
Clamps
It is made of black plastic as standard, is loosely connected to the supply cable from the motor and can be fixed with self-tapping screws to an easily accessible location on the cabinet. IP55 protection.
Speed control
is performed by a potentiometer located in the terminal block or by an external REB Ecowatt speed controller. In addition, an analogue 0-10 V control signal from a temperature, humidity or CO2 sensor.
Mounting
in each fan position, with regard to revision work and the possibility of removing the revision cover preferably with the motor axis vertical.
Rotation direction
is indicated by an arrow stuck on the casing. The direction of rotation must be checked after commissioning.

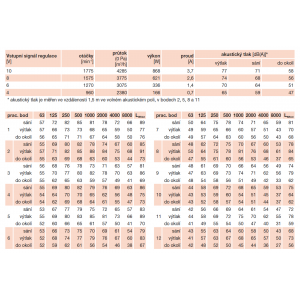

Noise

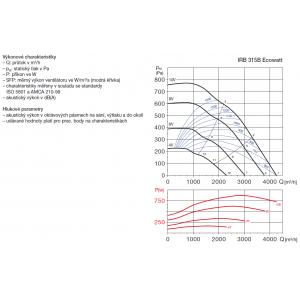

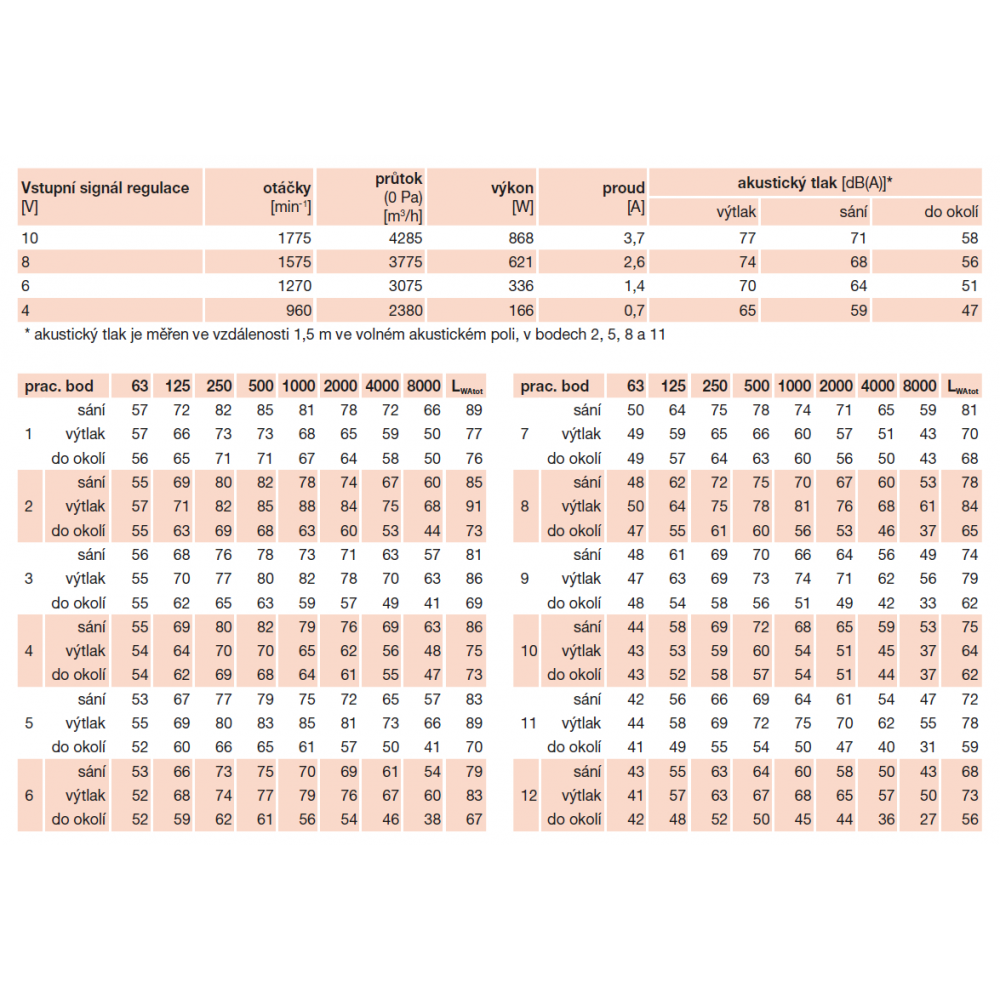

emitted by the fan is listed in the tables for the four performance curves.
Instructions
Due to their high efficiency and economical operation, fans are suitable for demanding applications where their low profile and quiet operation can also be applied. They are also suitable for DCV (demand controlled ventilation) applications.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
