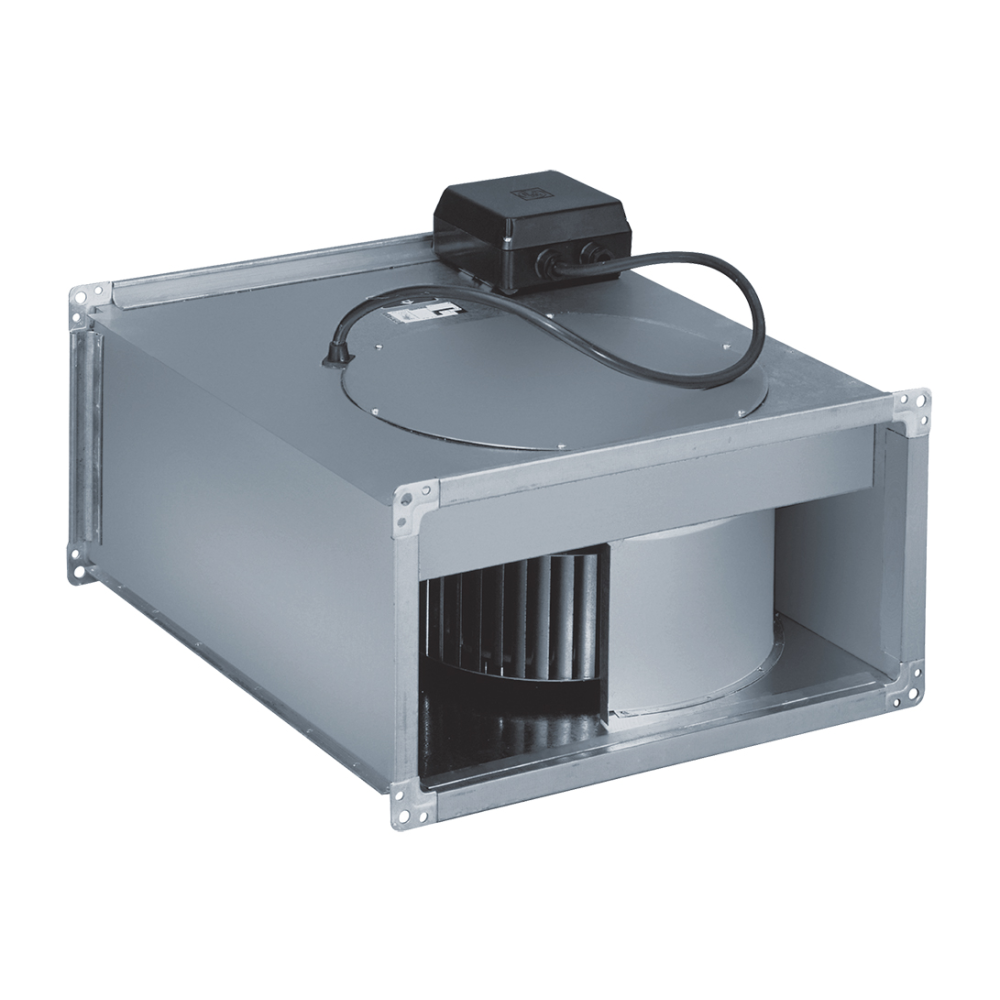

Product description
Cabinet
It is made of galvanized steel sheet, the cabinet is equipped with flanges for fixing to the square pipe. There is a revision cover on the casing, which, when removed, gives access to the motor and impeller.
Circulating wheel
is radial with forward curved blades and is statically and dynamically balanced.
Motor
is asynchronous with a resistive armature. ILB fan motors are 1-phase for 230 V, ILT are 3-phase for 230/400 V. The motors are equipped with thermal fuse as standard, class F insulation, working temperature -40 to +70 ºC. Sealed ball bearings have grease packing for life. IP55 protection.
Square box
It is made of black plastic as standard, is loose on the supply cable from the motor, and can be attached with self-tapping screws to an easily accessible location on the cabinet.
Speed control
is carried out by electronic or transformer regulators by changing the voltage. We preferably recommend transformer regulators. The ILT design can be regulated in 2 stages with the SD 2 winding switch or with frequency converters.
Mounting
in each fan position, with regard to revision work and the possibility of removing the revision cover preferably with the motor axis vertical.
Rotation direction
is indicated by an arrow stuck on the casing. The direction of rotation must be checked after commissioning. If the direction of rotation is reversed, the phase sequence must be changed (3f. version).
Instructions
The fans are suitable for general air handling applications where a low fan height is advantageous. The fans are suitable for ventilation of warehouses, restaurants, hospitals and sports halls due to their IP55 protection and higher operating temperature. They can also be used in combination with heat recovery heat exchangers.

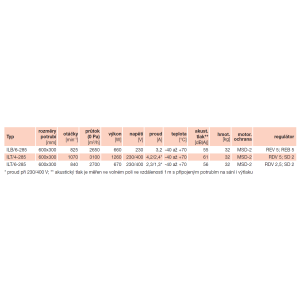

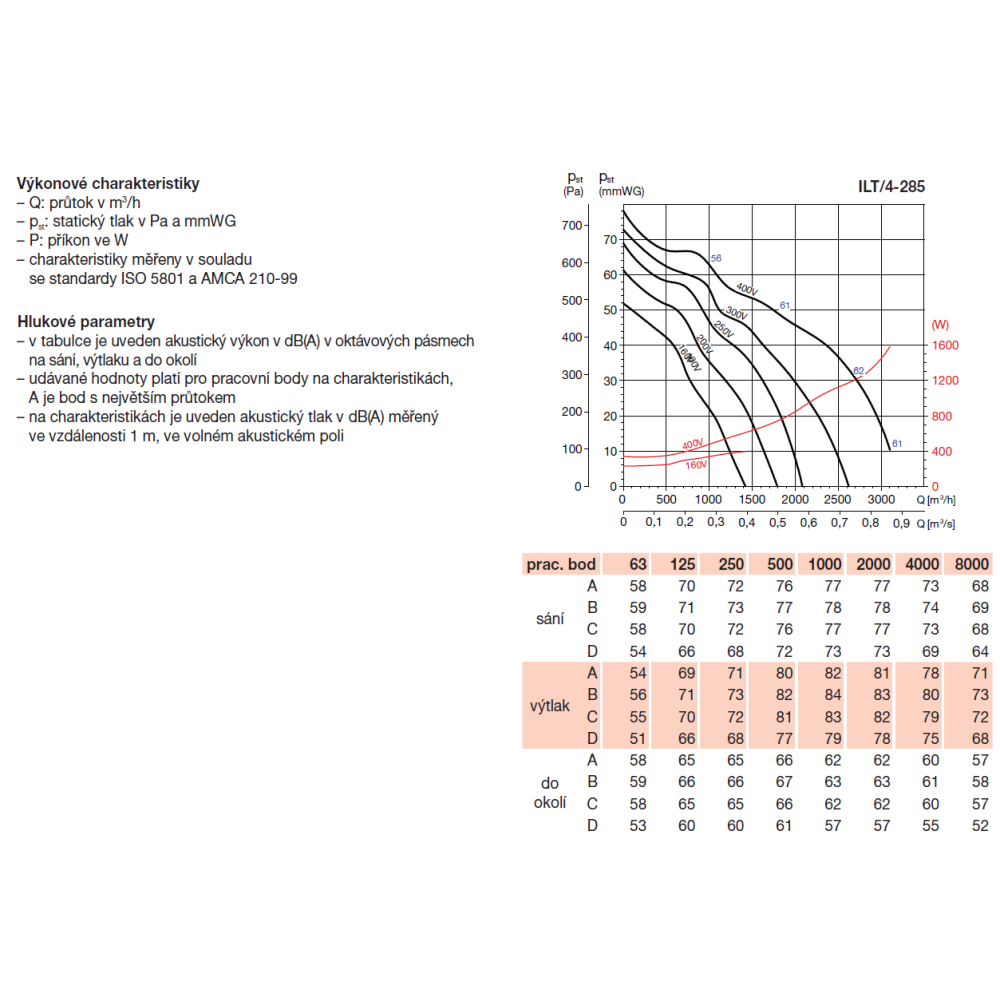

Parametry
| Základní údaje | |
|---|---|
| Fan type | radial |
| Mounting | Pipeline |
| Weight [kg] | 32,00 kg |
| Připojení | |

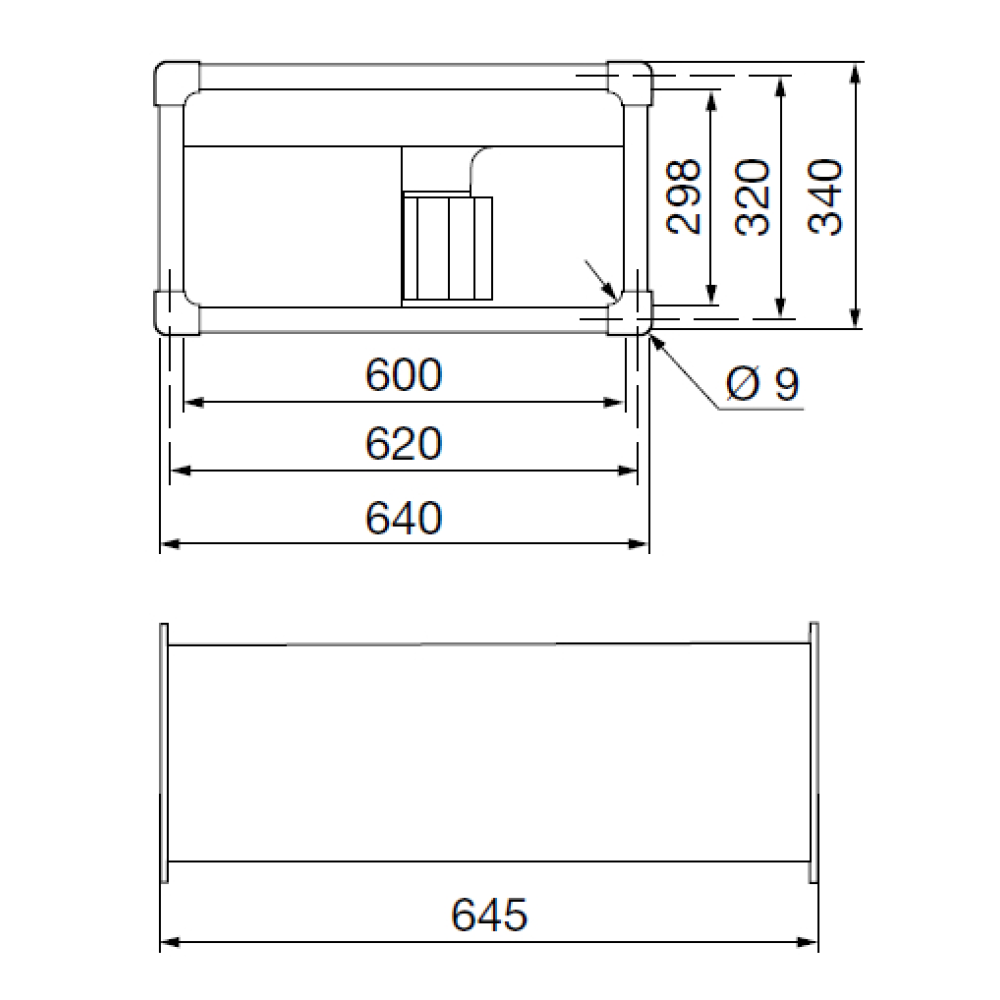

| Dimensions of the intake throat [mm] | 600 mm - 300 mm |
| Dimensions of the throat on the discharge [mm] | 600 mm - 300 mm |
| Elektrické parametry | |
| Power supply [V] | 230/400 V |
| Ingress Protection | IP55 |
| Engine type | AC |
| Maximum power [W] | 1 260 W |
| Maximum current [A] | 2,40 A |
| Vybavení | |
| Ball bearings | Yes |
| Check valve | No |
| Delayed run-down | No |
| Adjustable coasting | No |
| Hygrostat | No |
| Motion sensor | No |
| Adjustability | Yes |
| Adjustability | No |
| Particle filter | No |
| More intake ports | No |
| Sound insulation | No |
| Další | |
| Max. air temperature [°C] | 60 °C |
| Maximum speed [min⁻¹] | 1 070 min⁻¹ |
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
