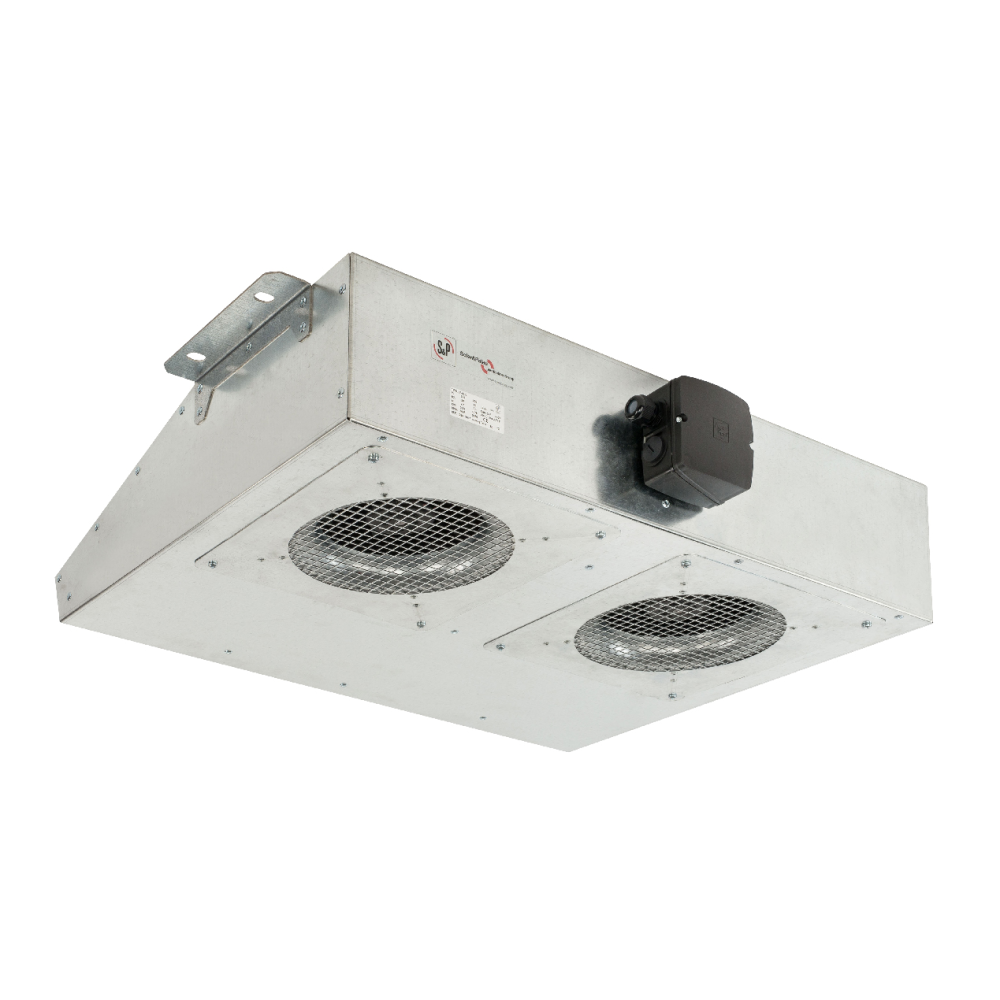

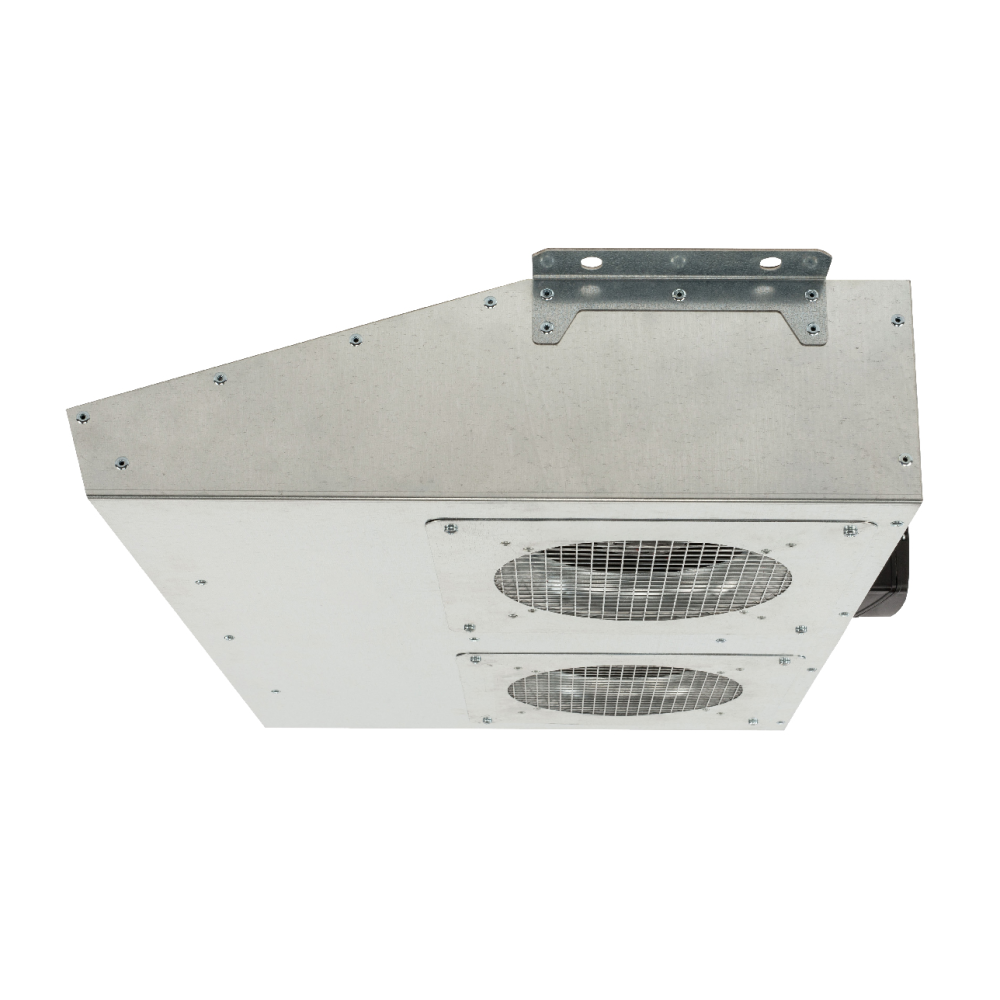

IFEB-C centrifugal jet fan with EC motor

Due to their flat profile, radial fans are particularly suitable for ventilating garage areas.

B2B clients will see their prices after logging in

49 646,00 CZK excl. VAT

60 071,66 CZK incl. VAT

Availability: on request [24.8.2025, 04:10] Update

Add to project

Goods cannot be ordered online.
Contact our sales specialists
or visit our branches.

Add to project

Product code: SP292600030

EAN: 8413893966537

Manufacturer: S&P SISTEMAS DE VENTILACIÓN, S.L.U. Read moreRead less

S&P SISTEMAS DE VENTILACIÓN, S.L.U.
Llevant, 4
Polígono Industrial Llevant
08150 Parets del Vallès
Barcelona – Spain
consultas[zav]solerpalau[teč]com
www.solerpalau.com/en-en/home

Product description

Cabinet

is made of galvanized steel sheet, the fan is equipped with a protective grille on the intake.

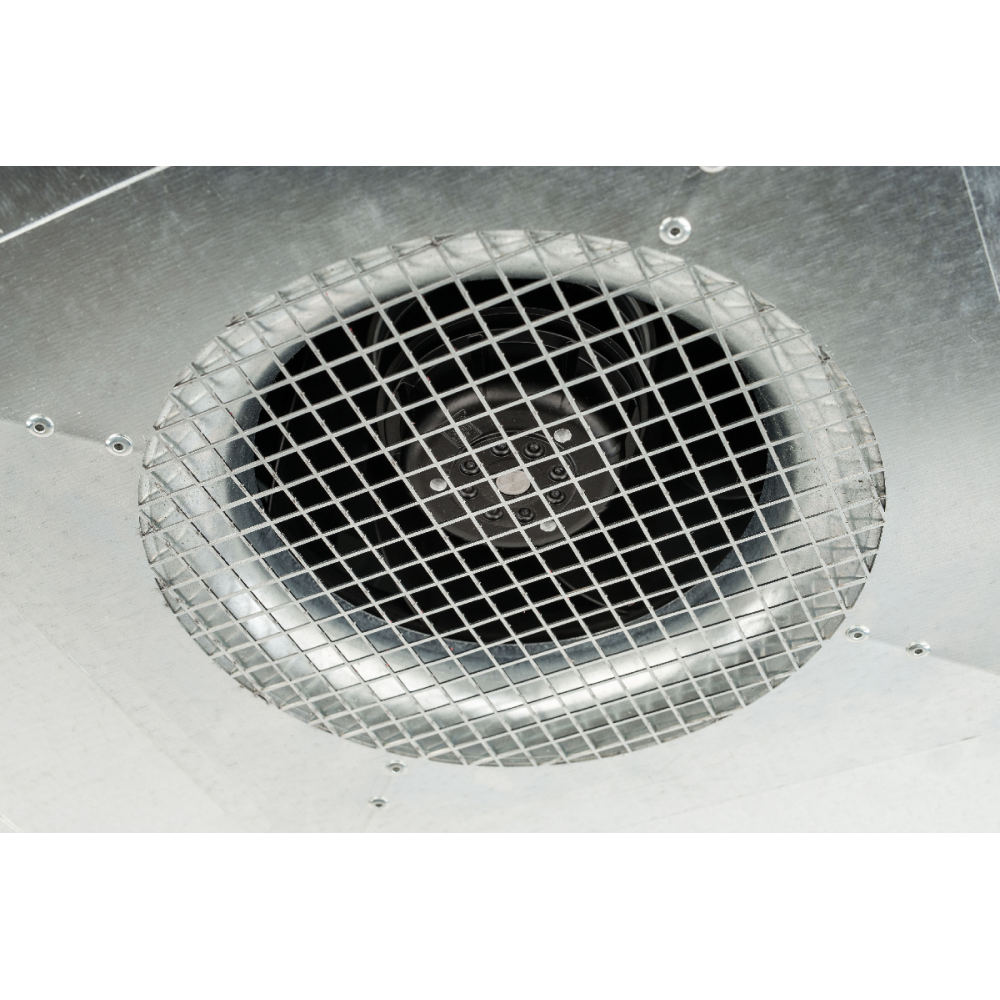

Running wheel

is radial with backward curved blades, made of plastic and is statically and dynamically balanced.

Motor

Single phase 230 V/50 Hz, insulation class F, IP44. Operating ambient temperature up to 60 °C. The IFEB version with EC motor has an ambient temperature of 50 °C.

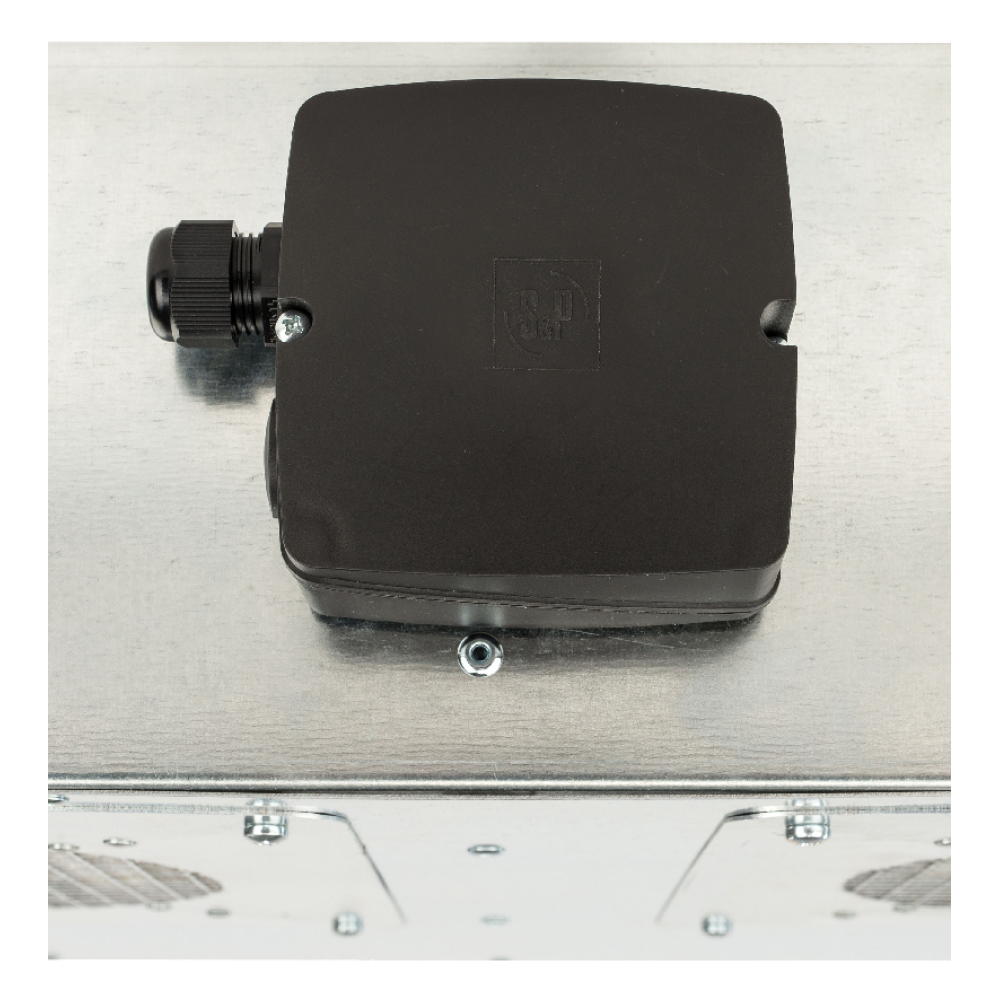

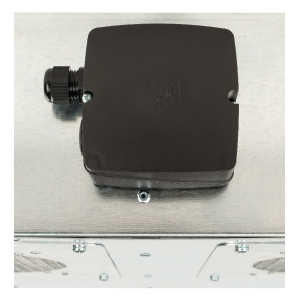

Square box

is mounted on the housing.

Speed control

is not possible with IFAB fans. For IFEB fans it is possible with the REB Ecowatt remote potentiometer or with a 0 -10 V control signal. More information on request.

Instructions

The flat profile of the fans makes them ideal for garage ventilation.

Caution

All manufacturer's recommendations must be followed during installation and design.

Full description

Safety regulations

Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:

• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.

Downloads

Technical sheets, manuals and declarations

Catalogblatt .pdf (156.36 kB)

Operating Instructions .pdf (648.95 kB)

Declaration of conformity .pdf (355.77 kB)
