S&P SISTEMAS DE VENTILACIÓN, S.L.U.
Llevant, 4
Polígono Industrial Llevant
08150 Parets del Vallès
Barcelona – Spain
consultas[zav]solerpalau[teč]com
www.solerpalau.com/en-en/home

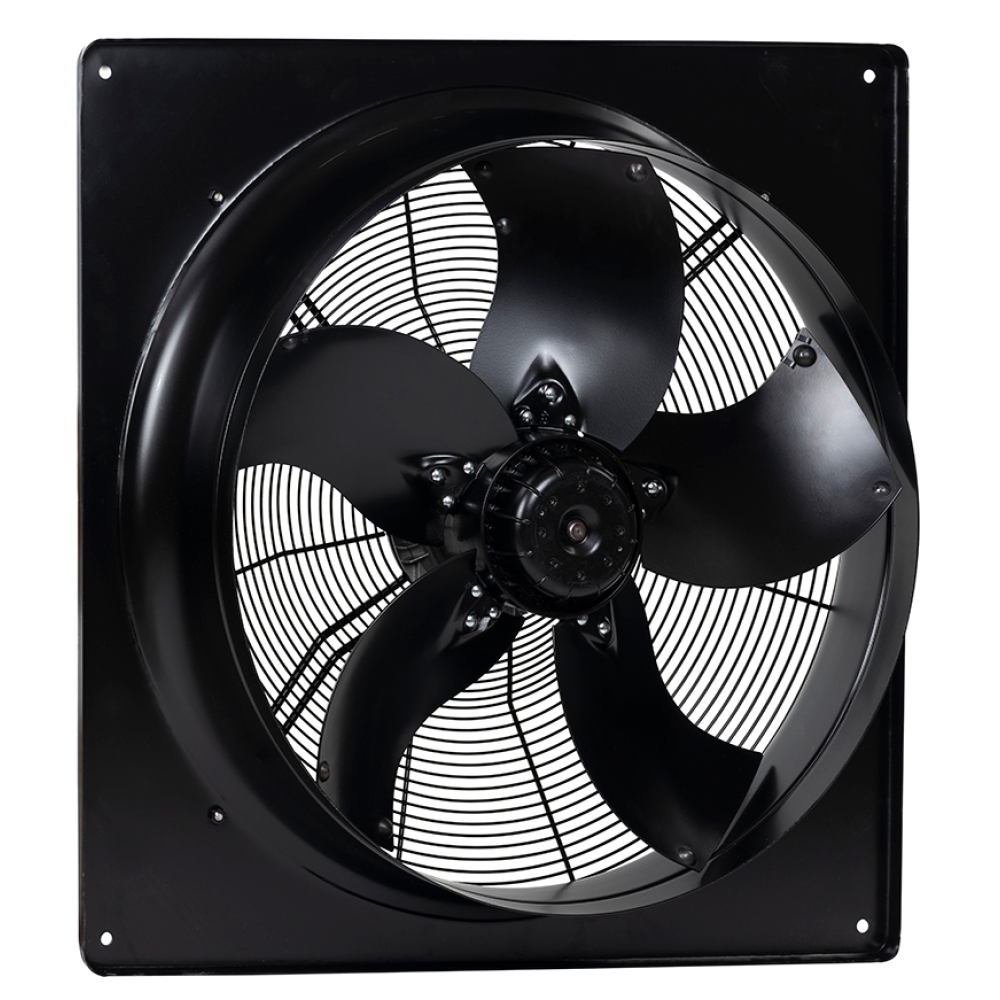

Cabinet
It is made of galvanized steel sheet with black paint, mounting brackets and screws are electroplated.
Running wheel
is aluminium, the "SICKLE" shape is specially optimised for maximum flow and pressure with minimum noise. The impeller is pressed directly onto the motor.
Motor
EC motor with thermal overload protection. Bearings are ball bearings with grease packing for life. IP54 protection. Operating temperature -20 to +50 °C.
Speed control
is carried out by means of a potentiometer located in the terminal block or by an external REB Ecowatt control. In addition, an analogue 0-10 V input from a temperature, humidity or CO2 sensor. The control is equipped with a safety relay and allows ModBus communication. Remote switching off and on of the fan is possible.
Rotation direction
cannot be changed. Airflow is from the motor to the impeller as standard.
Clamps
is located on the motor. IP54 protection.
Mounting
in any fan position.
Noise

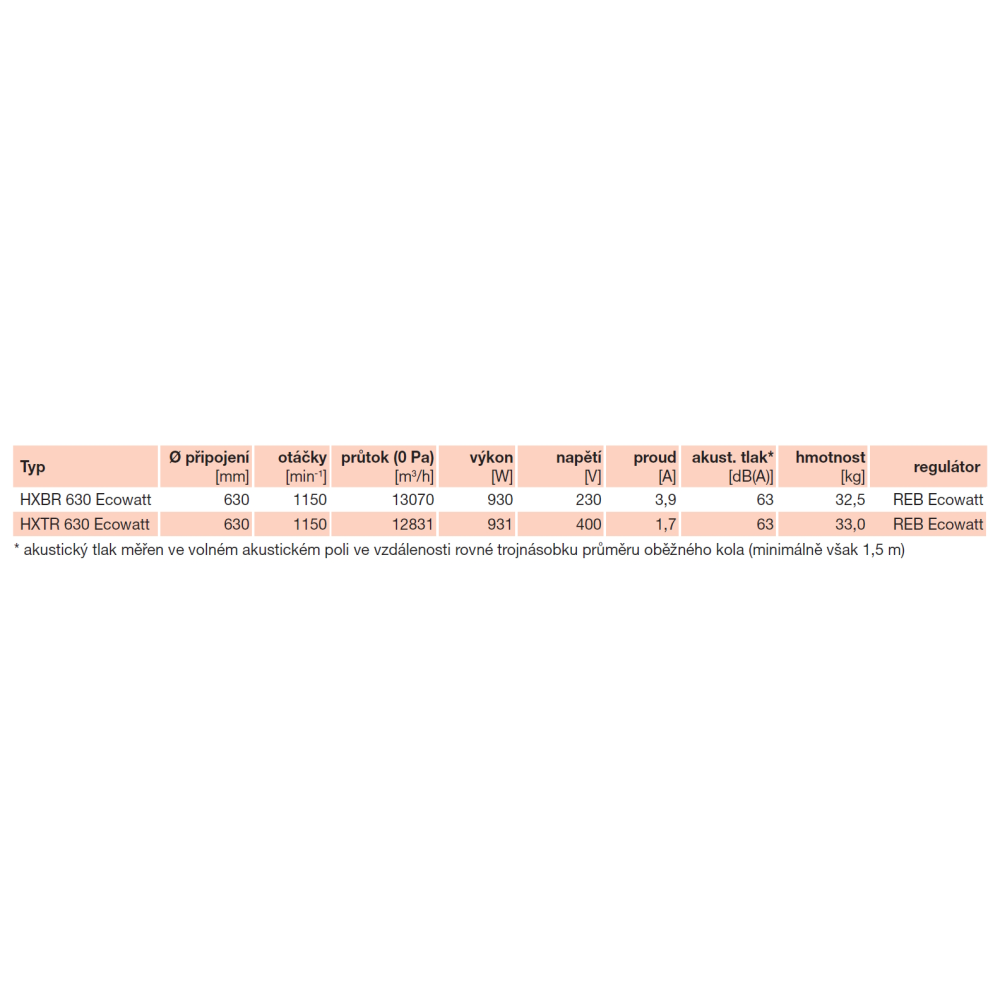

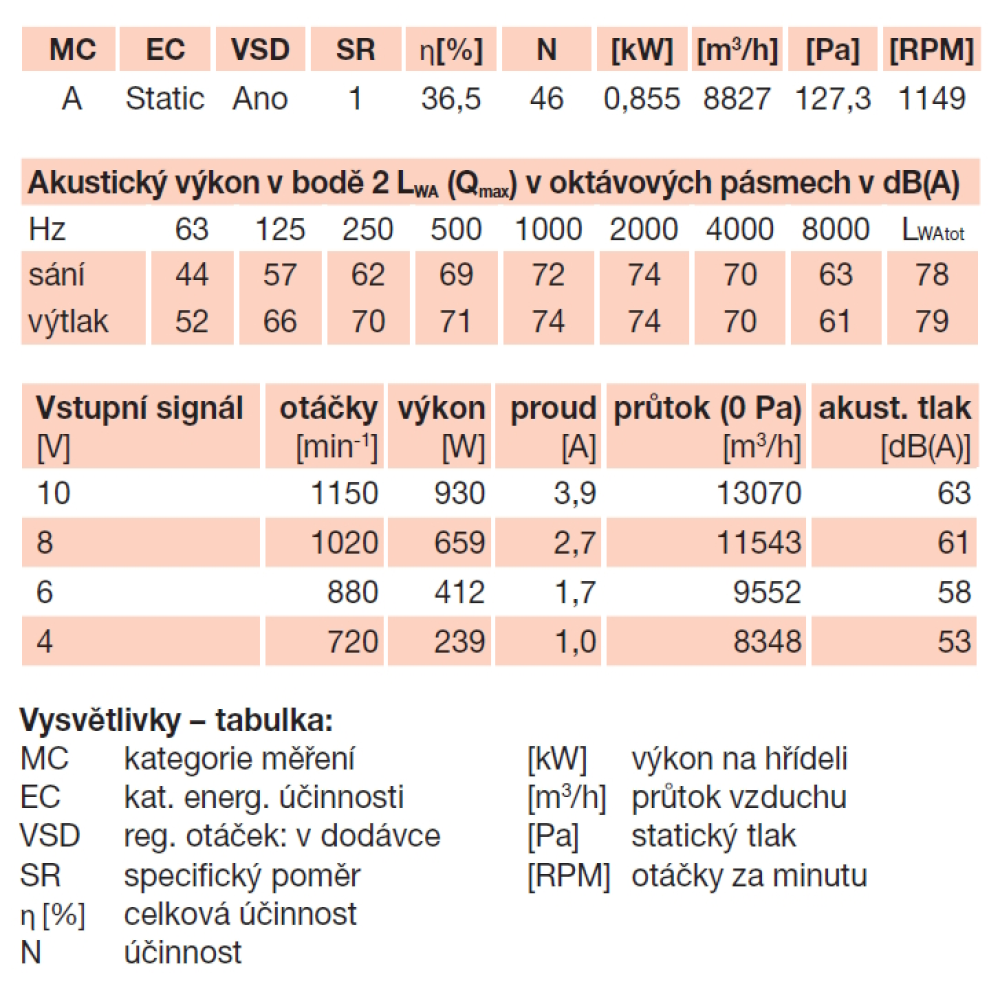

emitted by the fan is listed in the tables, measurements are taken at a distance equal to three times the impeller diameter (but at least 1.5 m) on the intake side.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
