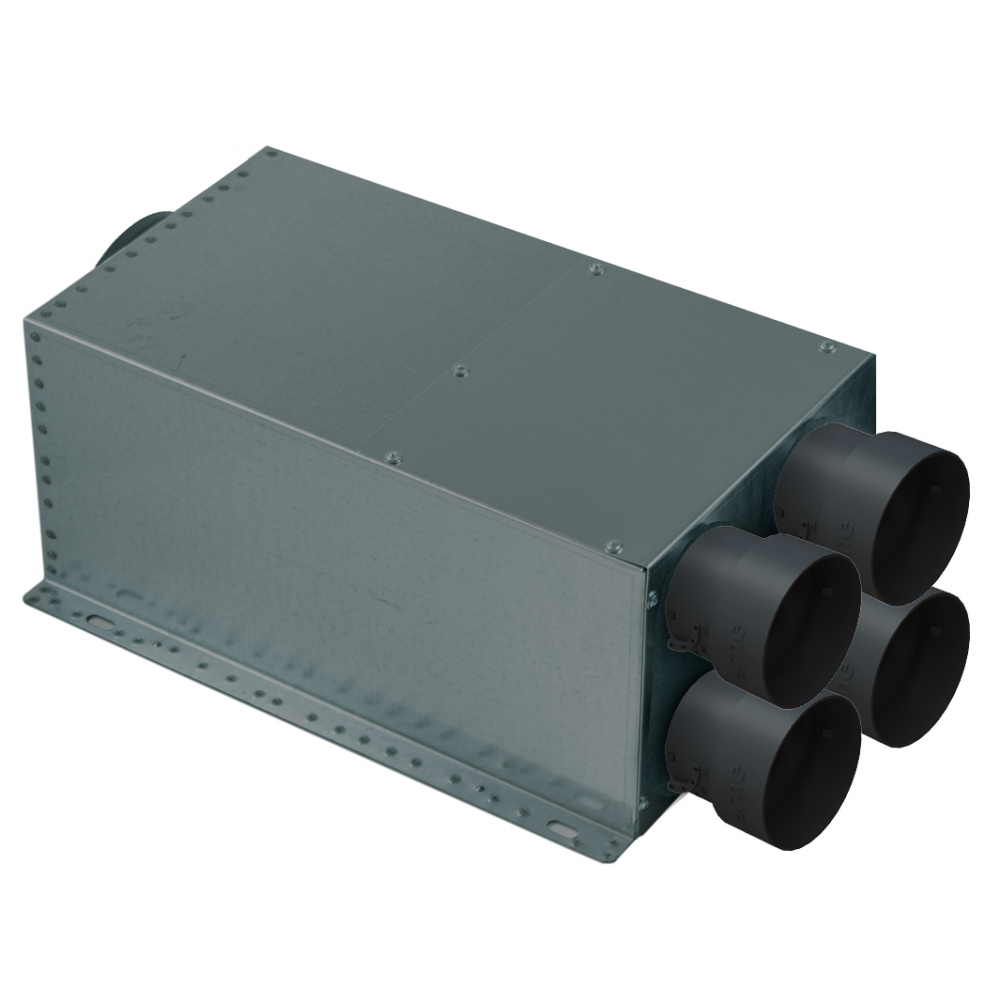

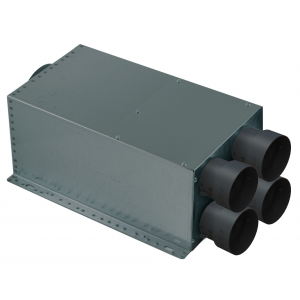

Universal circular distribution system for residential ventilation air distribution with plastic throats Ø 75/90 mm, including integrated control damper with locking.
Read more
B2B clients will see their prices after logging in
2 877,00 CZK excl. VAT
3 481,17 CZK incl. VAT
Availability: In stock
Share on Facebook
Tweet
Send emailProduct code: BR330111010
Product description
- universal distribution box with acoustic insulation
- standard zinc plated, RAL at extra cost

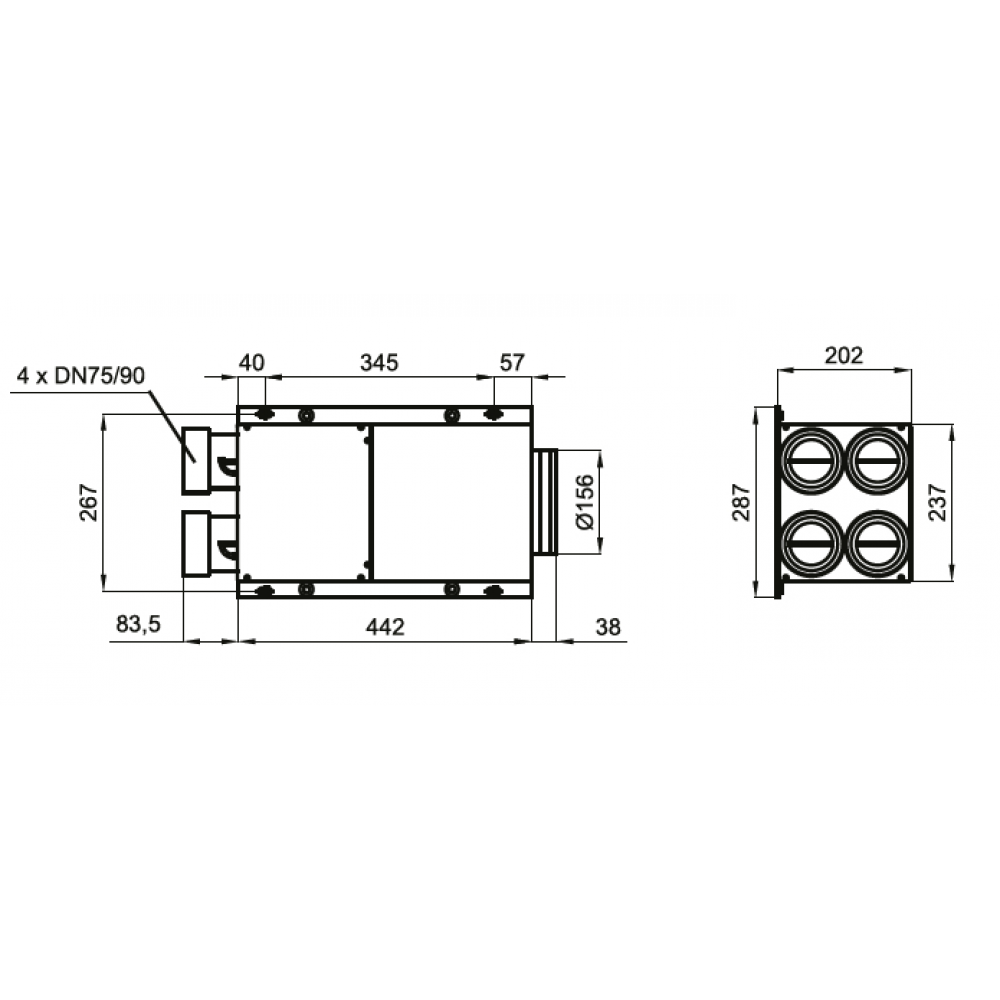

- 4 plastic throats Ø 75/90 mm with sealing and control flap with locking

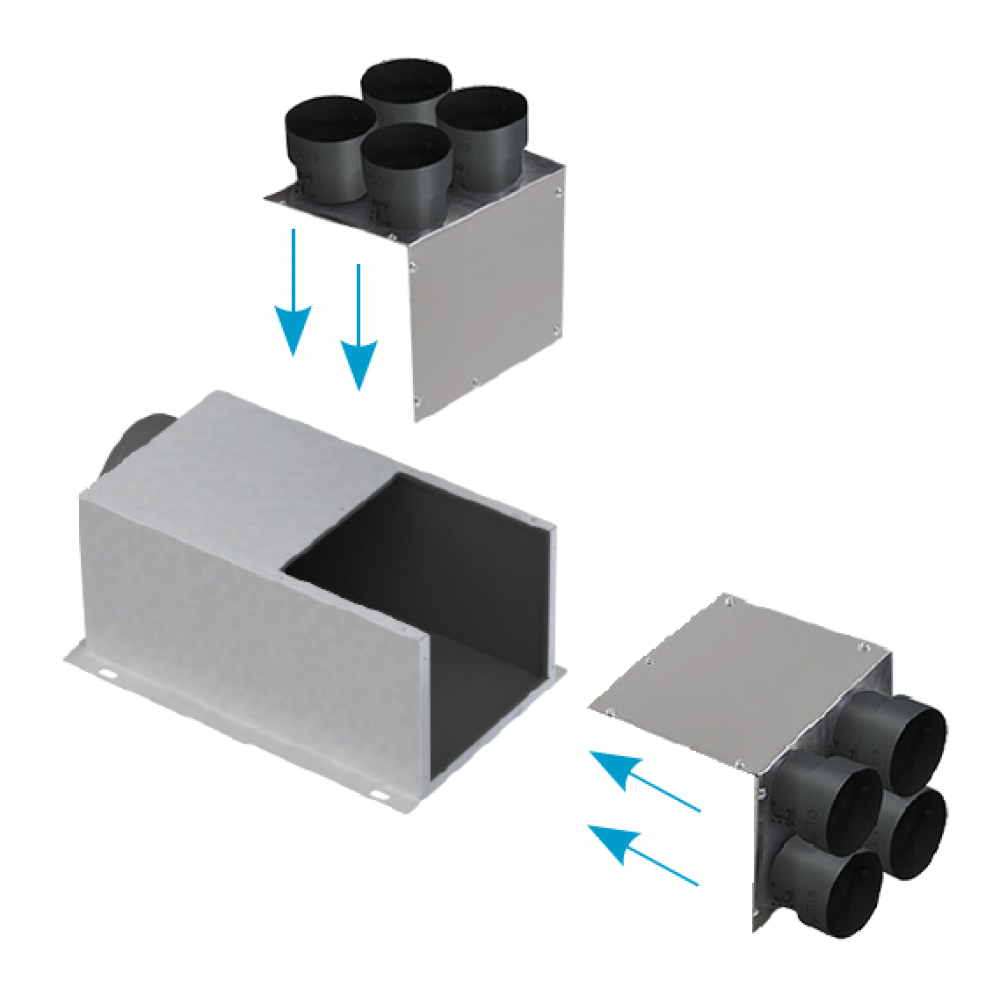

- universal design allowing the throats to be mounted on the wall or the front of the box
- for a tight connection between the pipe and the box use sealing rings OK 75 or OK 90 (not included, to be ordered separately)
- mounting holes for hanging
Downloads
Technical sheets, manuals and declarations
Catalogue sheet .pdf (5.40 MB)
CAD files
2D .dwg (968.51 kB)
