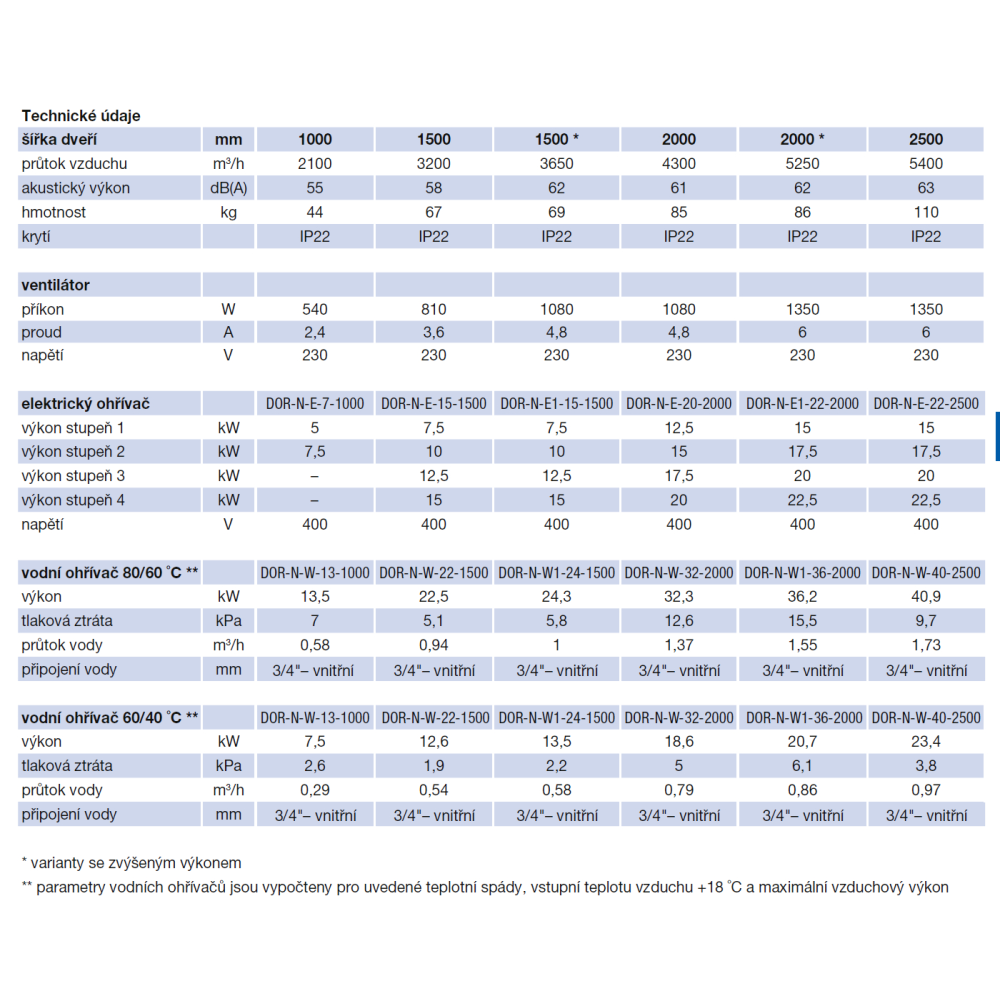

The cabinet is made of galvanized sheet metal, painted in RAL 9010 colour. Other colours on request. The exhaust section is thermally and noise insulated and finished with an anodised adjustable aluminium louvre. The louvre includes an inlet filter (water screen).
Fans
Direct drive radial fans are used. Single-phase asynchronous motors with thermocouples are provided to allow control by changing the voltage. IP22 protection, EC motors also available on request.
Heater
Heater is electric or water, also without heater on request. Water heaters are equipped with EU2 filter as standard.
Electric connection
Cable glands are located at the top of the cabinet.
Regulation
Regulation is done with the DR-CP4 controller, to which only 1 aperture can be connected. The controller is designed for AC motors and allows the connection of a door contact and a room thermostat. Alternatively, the DR-CPhr touch panel control is available, which is designed for AC and EC motors, allows manual control as well as control from higher-level systems (Modbus, BMS) and is equipped with additional functions (time clock, frost protection, door contact, curtain chaining, etc.).
Frost protection
Supplied screens are circulation screens with air intake from the room and are therefore not equipped with frost protection.
Mounting
The screens can be mounted on the wall or by means of a ceiling hanger. The recommended mounting height is 2.6 m for E,W and 2.8 m for E1 and W1. Water-heated screens are supplied as standard in the right-hand version, the left-hand version is available on request and at extra cost.
Information
An air door screen in a design with easy installation suitable for commercial premises and industrial buildings such as banks, hotels, office premises, light industry, supermarkets and more.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
