S&P SISTEMAS DE VENTILACIÓN, S.L.U.
Llevant, 4
Polígono Industrial Llevant
08150 Parets del Vallès
Barcelona – Spain
consultas[zav]solerpalau[teč]com
www.solerpalau.com/en-en/home
Cabinet
is made of electrically welded sheet metal and is coated with a durable epoxy-polyester paint in grey colour. The spiral enclosure is supplied in the LG 270 position as standard, the position can be changed on installation. The fans are designed to permanently convey warm air up to +80ºC or +110ºC, free of hazardous substances.
Running wheel
with forward curved blades is made of electroplated steel plate. The impeller is dynamically balanced according to ISO 1940.
Motor
is an asynchronous induction motor, housed outside the air stream, and is manufactured to IEC 34-1. The motor insulation is according to type class B or F, protection IP44 or IP55. The motor has lifetime grease-filled ball bearings. Two-speed motors or explosion-proof versions can be supplied on request.
Clamps
is located on the engine.
Speed control
for selected types by electronic or transformer regulators by changing the voltage or frequency converter.
Noise

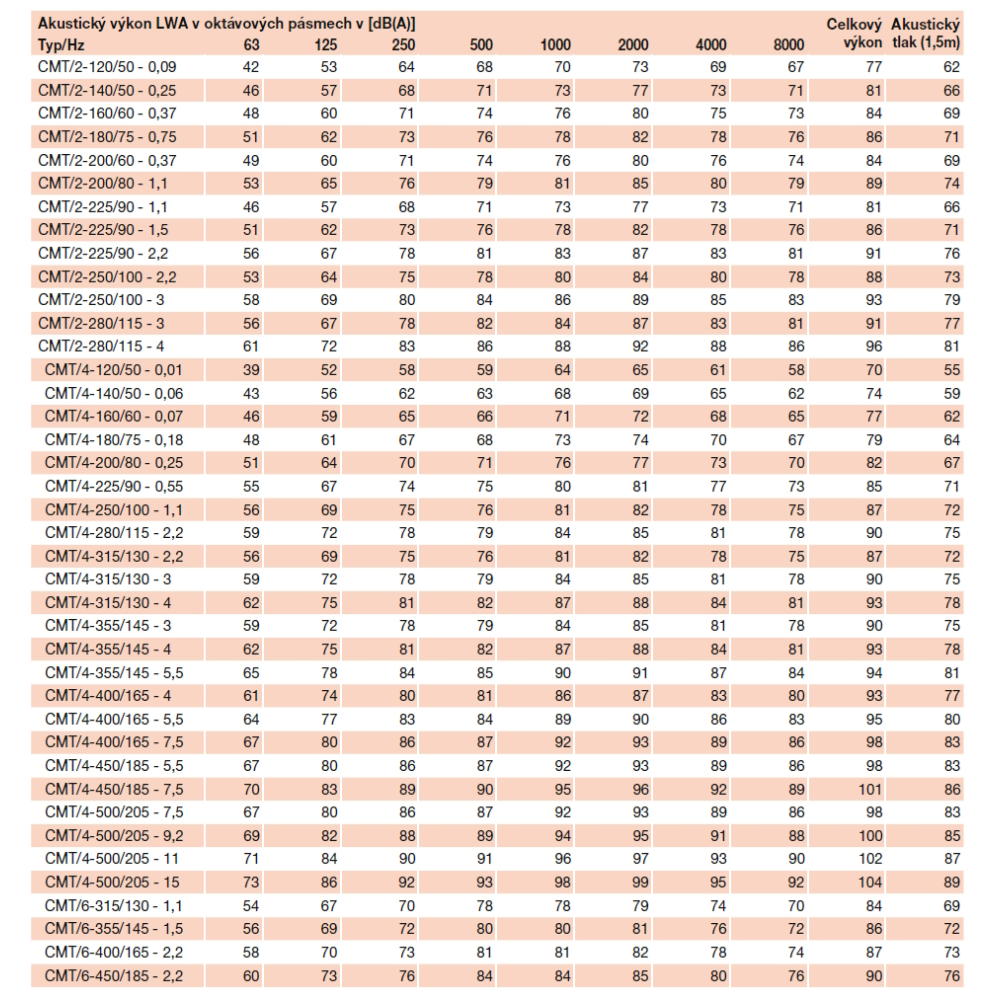

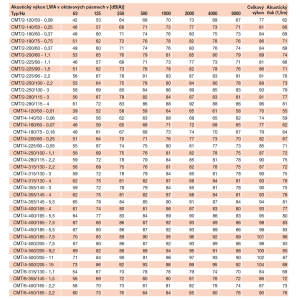

The tables show the sound pressure in the free acoustic field at a distance of 1.5 m at the discharge at maximum flow.
Mounting
The position of the discharge can be changed at the installation. The enclosure must not transmit mechanical stresses from the pipework. A flexible connection to the pipework must be used. Before installation, it is important to check that the electrical parameters of the product, as indicated on the label (voltage, power, frequency, etc.), correspond to the values of the local network.
Instructions
The fans are suitable for general HVAC and OEM applications where exhaust of hot air without hazardous substances is required. CMB/CMT fans can be used alone or incorporated into other groups of machinery designed for air extraction or supply, including forced air ventilation in industry and engine air cooling.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
