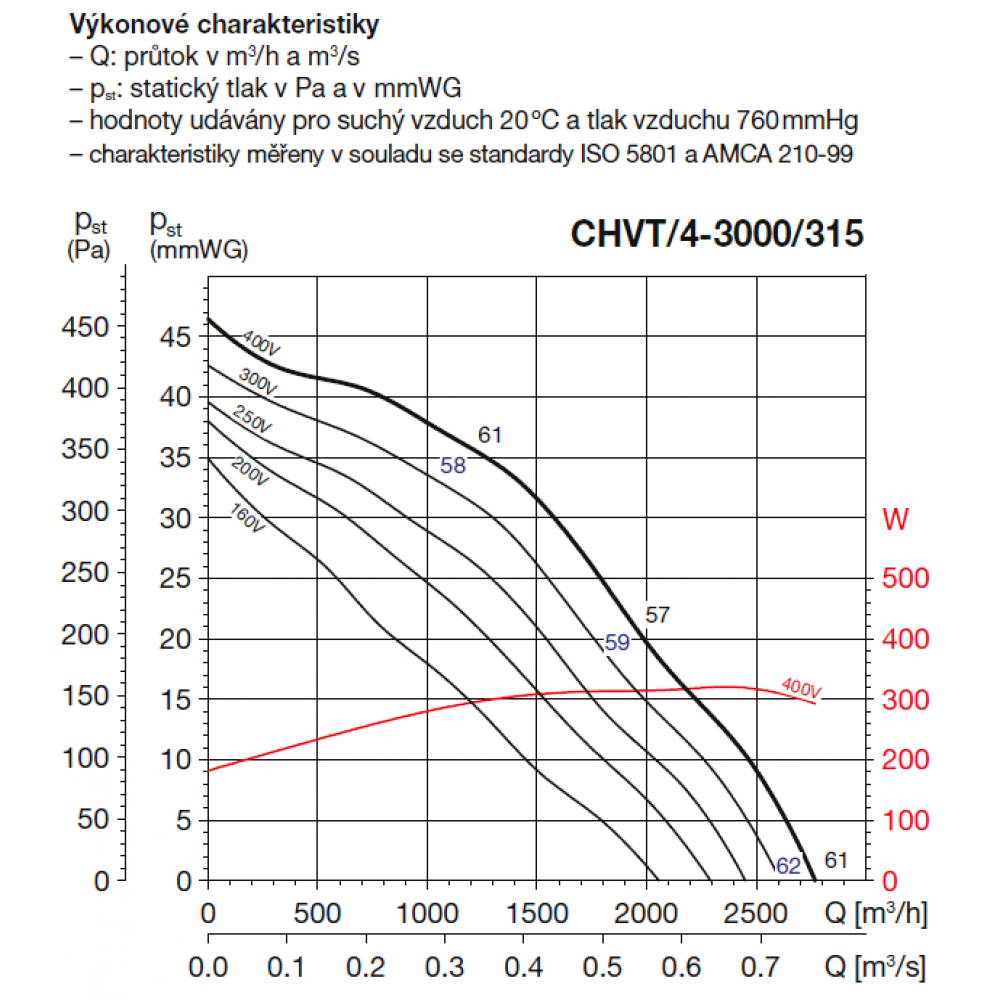

Cabinet
It is made of galvanized steel sheet, sandwich design. The enclosure is internally coated with a 17 mm layer of soundproofing material. The fan is mounted in the enclosure on sprung profiles to reduce vibration transmission. A circular inlet is fitted on the cabinet for connection of flexible hoses or circular ducting. There is a square hole on the discharge where a circular pipe reducer, supplied separately, can be connected. The panels are interchangeable so that the discharge can be directed sideways or upwards. The cabinet contains a tray for the drainage of the fat condensate, the condensate drain must be fitted in line with the position of the fan and the appropriate inclination of the fan towards the tray must also be selected.
Running wheel
is radial with backward curved blades. The impeller is statically and dynamically balanced, free running and without a spiral casing.
Motor

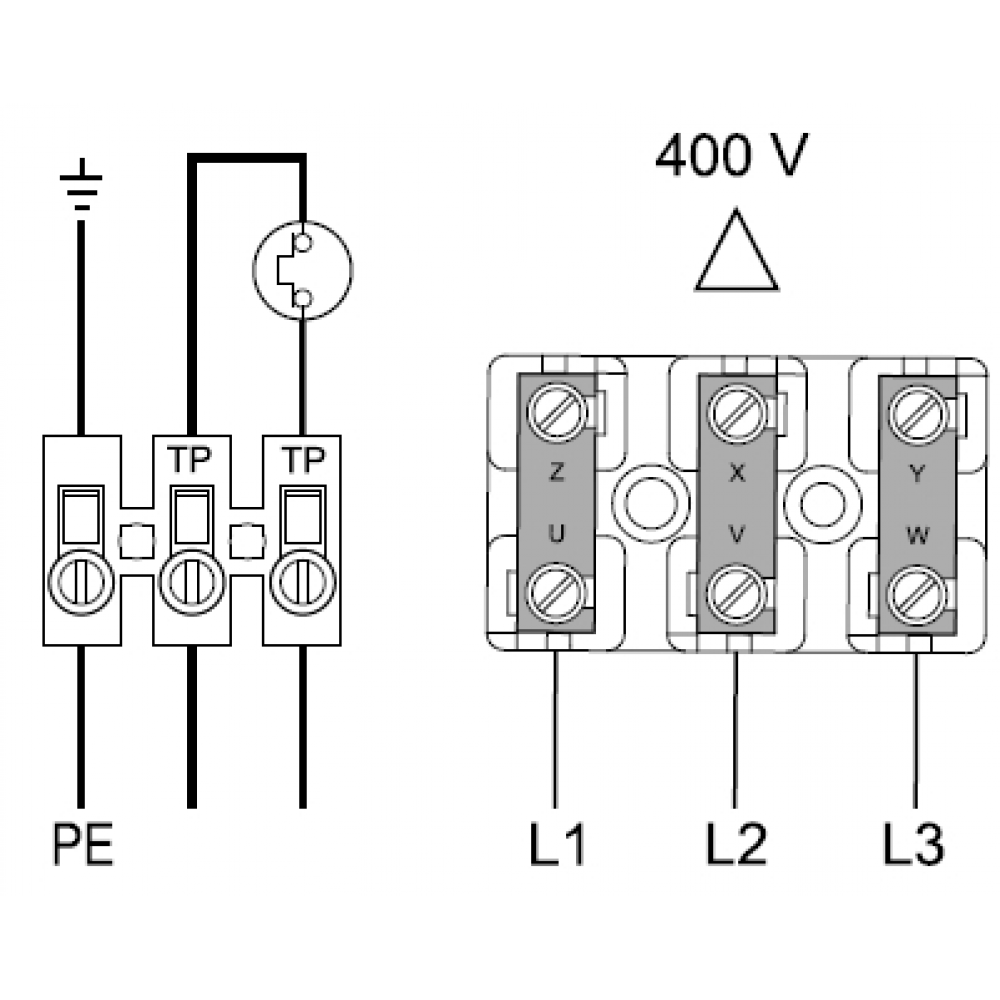

is asynchronous with resistive armature. CHVB fan motors are 1-phase for 230 V, CHVT are 3-phase for 400 V. The motors are fitted with a thermal fuse as standard, the windings are in a moisture-proof design with Class F insulation and an operating temperature of up to 120˚C. The sealed and maintenance-free ball bearings are grease-filled for life. IP55 protection.
Square box
It is made of black plastic as standard, is loose on the supply cable from the motor and can be screwed to an easily accessible location on the enclosure with self-tapping screws. Cable length 0,8 m, IP55 protection.
Mounting
is carried out exclusively with the motor axis horizontal and the condensate bath underneath, taking into account the design, fan operation and inspection activities.
Instructions
Fans are suitable for air handling applications where low fan noise is advantageous. The fans are particularly suitable for large capacity kitchens, for ventilation of restaurants, sports halls, hospitals, warehouses and swimming pools.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
