VFVN 100 X frequence controllers

Information

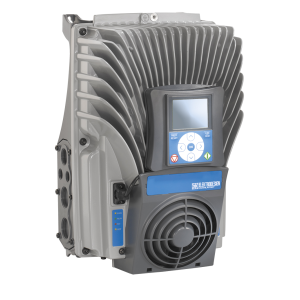

The special compact design of the frequency converter with IP66 protection and type 4X protection is ideal for mounting directly on the motor, fan or other suitable location. The main advantages of this decentralised solution include:

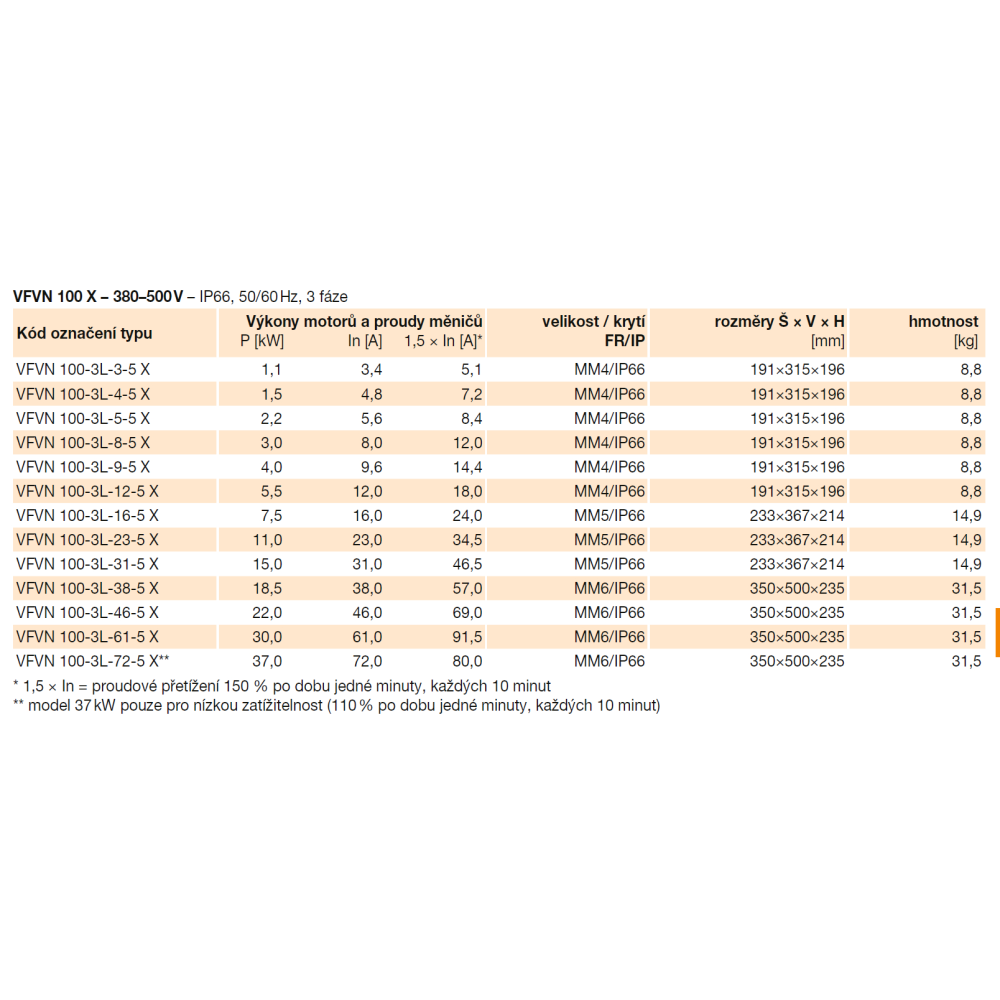

- power range from 1.1 to 37 kW
- location of the inverter directly at the motor
- minimisation of the use of electrical substations
- integration of the inverter as part of the machine
- no need for a switchboard
- cost reduction (cabling)

User-friendly control panel

The control of the frequency converter is designed to be as simple and intuitive as possible. The control has a clear menu structure that contributes to fast commissioning and trouble-free operation.
- graphical or text-based control panel
- menu in Czech language
- possibility to monitor up to 9 signals simultaneously
- possibility to set the number of displayed signals to 4, 6 or 9
- 3 colour status lights on the control unit: flashing green - ready; lit green - running; lit yellow - alarm; lit red - error
- graph display for two signals simultaneously

Quick Setup

Easy commissioning tools take care of trouble-free commissioning on site. Easy-to-use diagnostics with help are available for every parameter, signal and fault.
- A commissioning wizard allows quick setup of the frequency converter
- A fire mode wizard ensures easy commissioning of the fire mode function
- Application selection simplifies system boot-up
- Internal clock supports calendar-based scheduling

Additional buses

Easy integration into a business automation system is made possible by the built-in Modbus RTU (RS485) and Modbus TCP (Ethernet) protocols. Integration into Profinet IO and Ethernet IP systems is possible via software add-ons. Easily connectable add-on buses facilitate integration into traditional Profibus DP, DeviceNet, CANopen and LonWorks systems.
