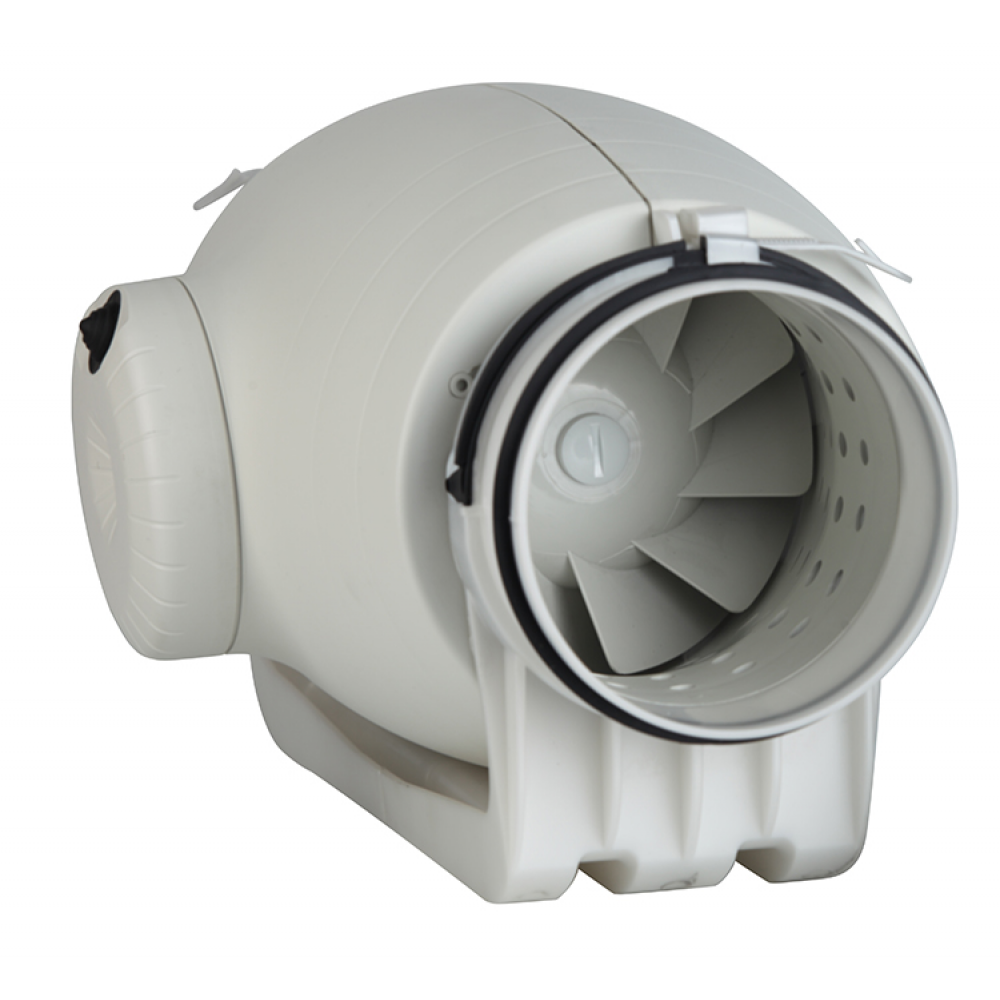

Product description
Cabinet
It is made of hardened plastic and consists of a wall or ceiling mounting bracket, noise absorber and motor. Easy removal of the motor section attached with quick release clips. Connection sockets with rubber seals.
Running wheel
is diagonal, made of plastic.
Motor
The induction motors for the TD 160-350 SILENT have two windings and two speeds. The TD 500-1000 SILENT 3V fans have triple windings and three speeds. The motors have thermal overload protection, the windings have tropicalization treatment and class B insulation. Ball bearings have grease packing for life. Motor protection IP44. Supply voltage 230 V/50 Hz.
Square box
is on the fan housing, it is rotatable 360° for cable connection from any direction.

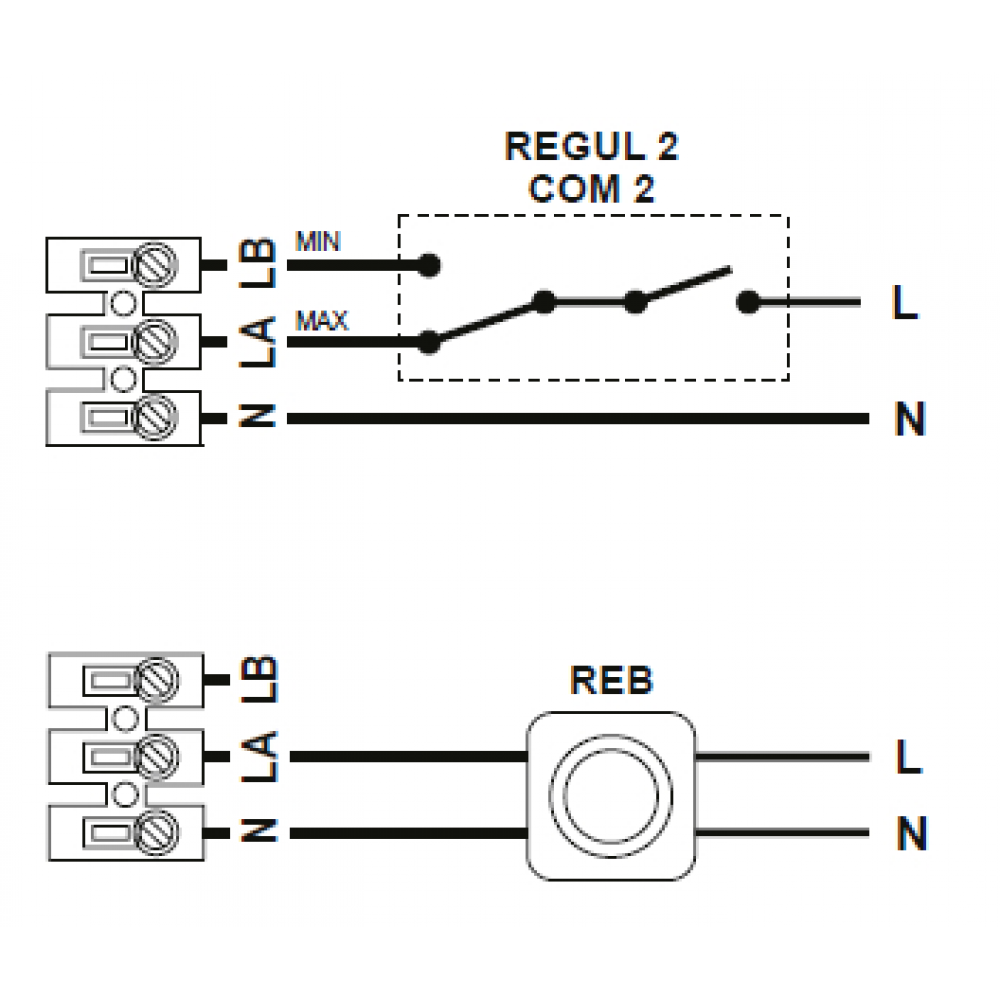

Speed control
is carried out on dual speed motors (TD 160-350 SILENT) in 2 stages using REGUL 2 or COM 2 controllers, or REB (stepless control) or REV (five-stage control) controllers. For triple speed motors (TD 500-1000 SILENT 3V), the control is performed by COM 3 or INTER 4P or by REB (stepless control) or REV (five-stage control). TD SILENT T fans (single or three-speed depending on type) have adjustable time 1-30 min. TD 160-350 SILENT T is not adjustable, TD 500-1000 SILENT T 3V only by INTER 4P speed switch.
Variants
- TD SILENT - basic version (for pipelines DN 100 to 315)
- TD SILENT T - version with adjustable time 1 to 30 minutes, single speed (for pipelines DN 100 to 200)
Mounting
The fan can be installed in any fan position. The enclosure must not transmit mechanical stresses from the pipework, a flexible connection to the pipework is recommended.
Instructions
The TD SILENT type fans are diagonal fans, designed for installation in circular ductwork. They are designed to convey air without mechanical particles that could cause abrasion or imbalance of the impeller. The fans must not be exposed to direct weathering. Fans should be stored in a covered and dry warehouse. Fans are manufactured under the most stringent manufacturing controls in the ISO 9001 system.
Parametry

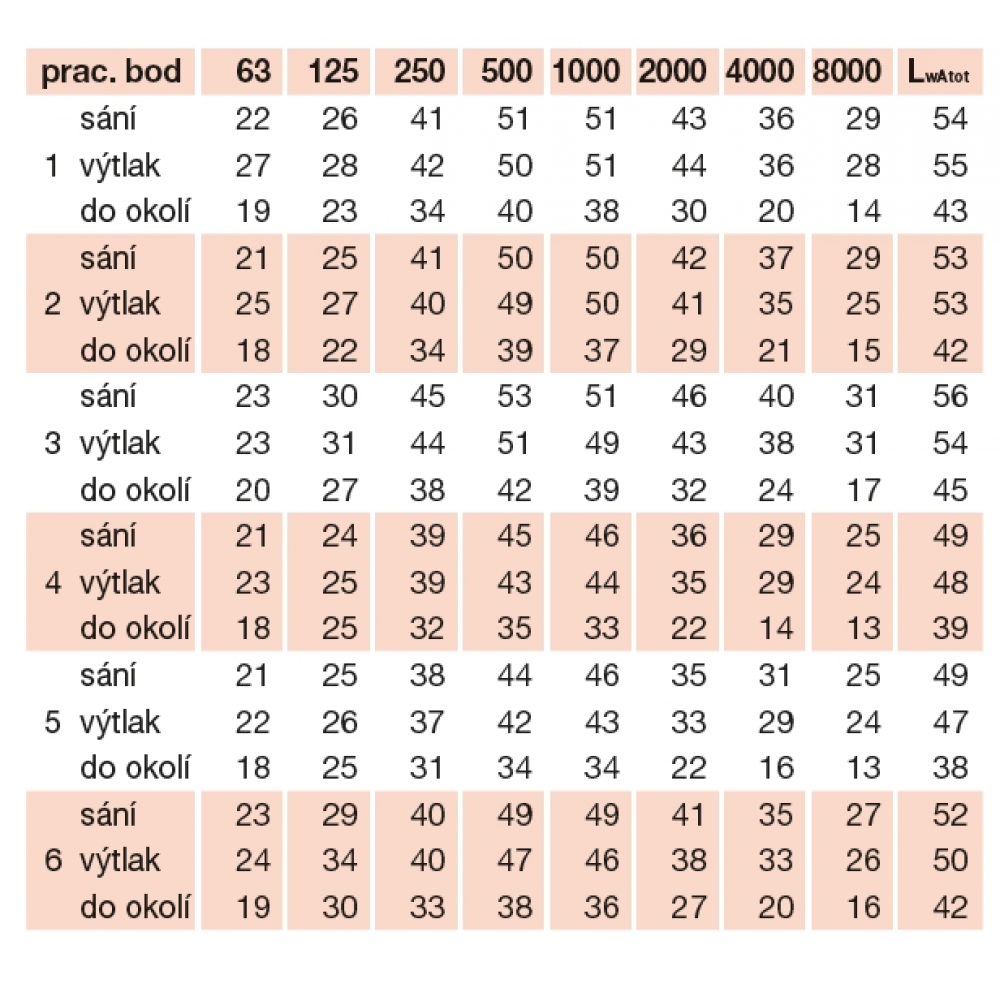

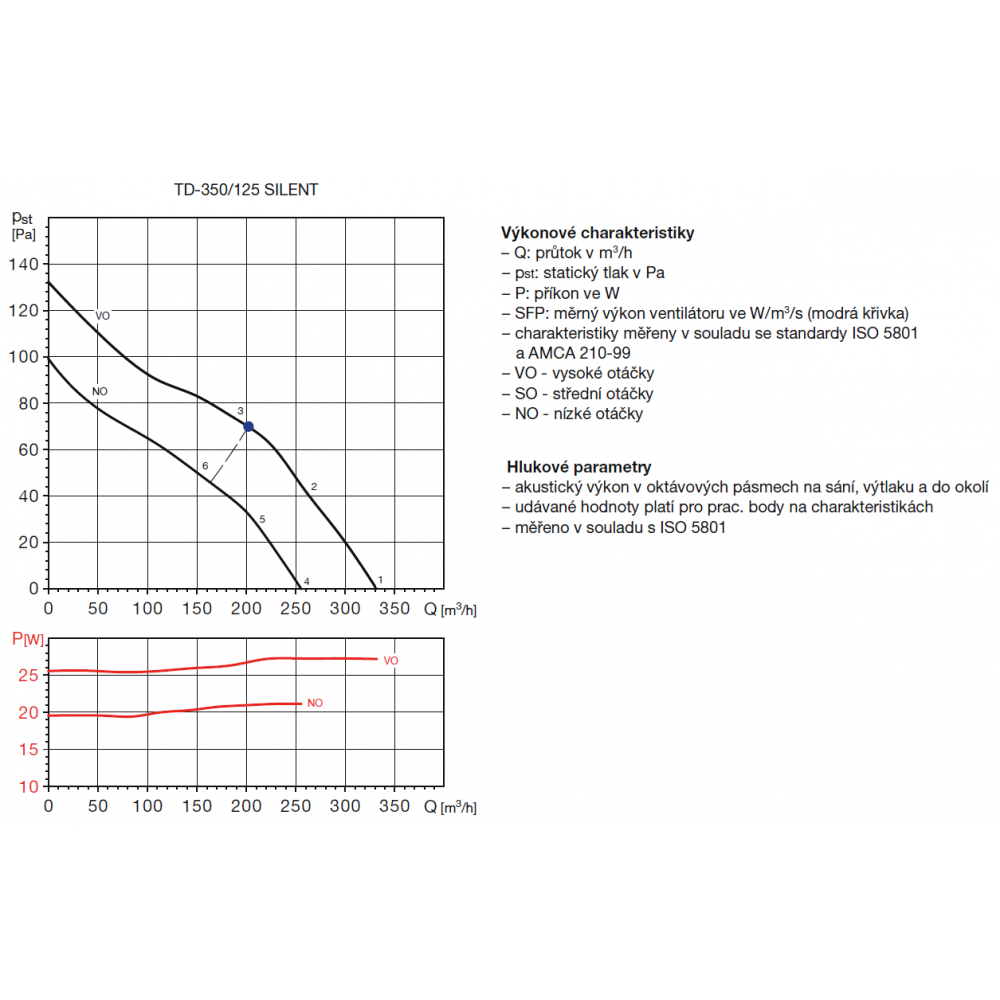

| Základní údaje | |
|---|---|
| Fan type | diagonal |
| Mounting | Pipeline |
| Weight [kg] | 5,00 kg |
| Připojení | |
| Diameter of inlet connection pipe [mm] | 125 mm |
| Diameter of the connection pipe at the discharge [mm] | 125 mm |
| Elektrické parametry | |
| Power supply [V] | 230 V |
| Ingress Protection | IP44 |
| Engine type | AC |
| Maximum power input [W] | 27 W |
| Maximum current [A] | 0,12 A |
| Vybavení | |
| Ball bearings | Yes |
| Check valve | No |
| Delayed run-down | No |
| Adjustable coasting | No |
| Hygrostat | No |
| Motion sensor | No |
| Adjustability | Yes |
| Adjustability | No |
| Particle filter | No |
| More intake ports | No |
| Sound insulation | No |
| Další | |
| Max. air temperature [°C] | 40 °C |
| Maximum speed [min⁻¹] | 2 100 min⁻¹ |
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
