Cabinet
is made of galvanized steel sheet and is powder coated in grey-white combination. The internal construction is made of high quality EPP. On the top of the unit there are 4 throats with diameters according to the power of the unit. The SABIK unit also has a fresh air outlet on the underside of the cabinet. The right or left version is obtained by switching the switch on the control electronics of the unit (after removing the front cover).
Fans
There are radial fans with backward curved blades on the discharge and intake.
Motors
Single phase EC motors 230 V/50 Hz.
Recuperator

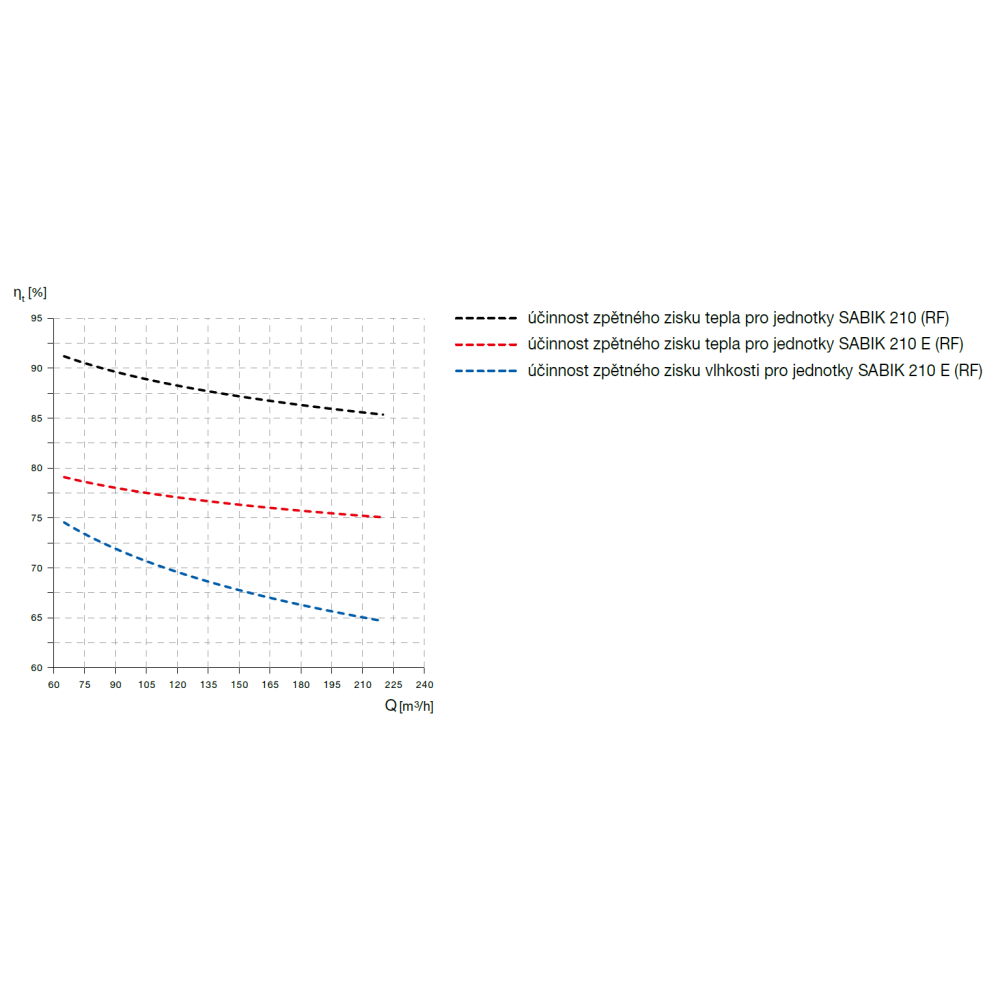

The SABIK unit is equipped with a countercurrent heat exchanger with a heat recovery efficiency of up to 94%. The E variant is equipped with a countercurrent enthalpy heat exchanger with a heat recovery efficiency of up to 86% and a humidity recovery efficiency of up to 82%. The exchanger is accessible by opening the front panel. For summer operation, the unit is equipped with a bypass.
Filters
For fresh and exhaust air intake, G4 plate filters (ISO coarse 65%) are standard. F7 filter (ISO ePM1 50%) can be supplied as an accessory for fresh air intake.
Additional filters:
- AFR-SABIK 210 G4/G4, set of 2
- AFR-SABIK 210 F7/G4, set of 2
- AFR-SABIK 350 G4/G4, set of 2
- AFR-SABIK 350 F7/G4, set of 2
- AFR-SABIK 500/600 G4/G4, set of 2
- AFR-SABIK 500/600 F7/G4, set of 2
Regulation
The unit is equipped with a fully automatic control system, which, in combination with four temperature and relative humidity sensors, ensures continuous speed regulation according to the current requirement, without the need for any further intervention in the control of the unit. In the performance characteristics, curves for individual speeds are indicated (see operating instructions for details). The designer wired controller allows manual fan speed switching, by-pass control, activation of the intensive ventilation function (boost), activation of automatic operation, night cooling and filter clogging indication. In the RF version, the unit is equipped with a radio frequency remote control that allows manual switching of fan speed and activation of automatic operation. Further unit settings are made via DIP switches and potentiometers on the unit's control electronics (after removing the front cover). The unit has four pre-set weekly programs, one of which allows automatic operation from a humidity sensor, built-in VOC sensor (optional accessory), or a 0-10V analogue override signal. SABIK units can be supplemented with a built-in module providing constant airflow control SABIK-NEMBUS-SF. Access to the ConnectAir platform (cloud S&P) is possible using an external SPCM module.
Electrical connection
The unit is designed for direct connection via mains plug into a wall socket. The power supply is single-phase 230 V / 50 Hz.
Mounting
The unit is designed for vertical mounting indoors with a minimum temperature of 12 °C, wall mounting (wall mounting brackets included). An optional SABIK-WMC mounting bracket is available to provide greater clearance from the wall. The unit must be mounted in such a way as to provide sufficient space for opening the unit lid, changing filters, connecting the condensate drain (DN20) to the waste with a siphon odour stopper and for carrying out periodic wiring inspections.
Noise

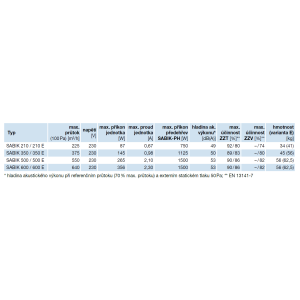

The tables show the sound pressure measured in the free acoustic field at a distance of 1.5 m.
Air handling system
- ED Flex® System circular ducting
- AIRSENS room sensors
- SABIK-WMC mounting bracket
- SABIK-PH built-in preheater
- SABIK-VOC built-in VOC sensor
- SABIK-NEMBUS-SF module for constant air flow
- SPCM communication module
- SONOULTRA flexible silencer
- SF-P 138 siphon with cap
Instructions
The unit can be equipped with a built-in SABIK-PH preheater. If required, MBE and MBW duct heaters with corresponding control elements can be used to preheat the supply air.
Information
A ventilation unit designed for residential construction or family houses. It is characterized by simple installation, minimal control and maintenance requirements and very economical operation. Easy to switch between left and right-hand versions. All units are "Passive House" certified.
Highlights
The SABIK 210 recuperation unit is part of the New Green Savings Programme under the code SVT30867.
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
