Product description

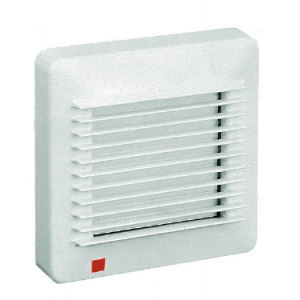

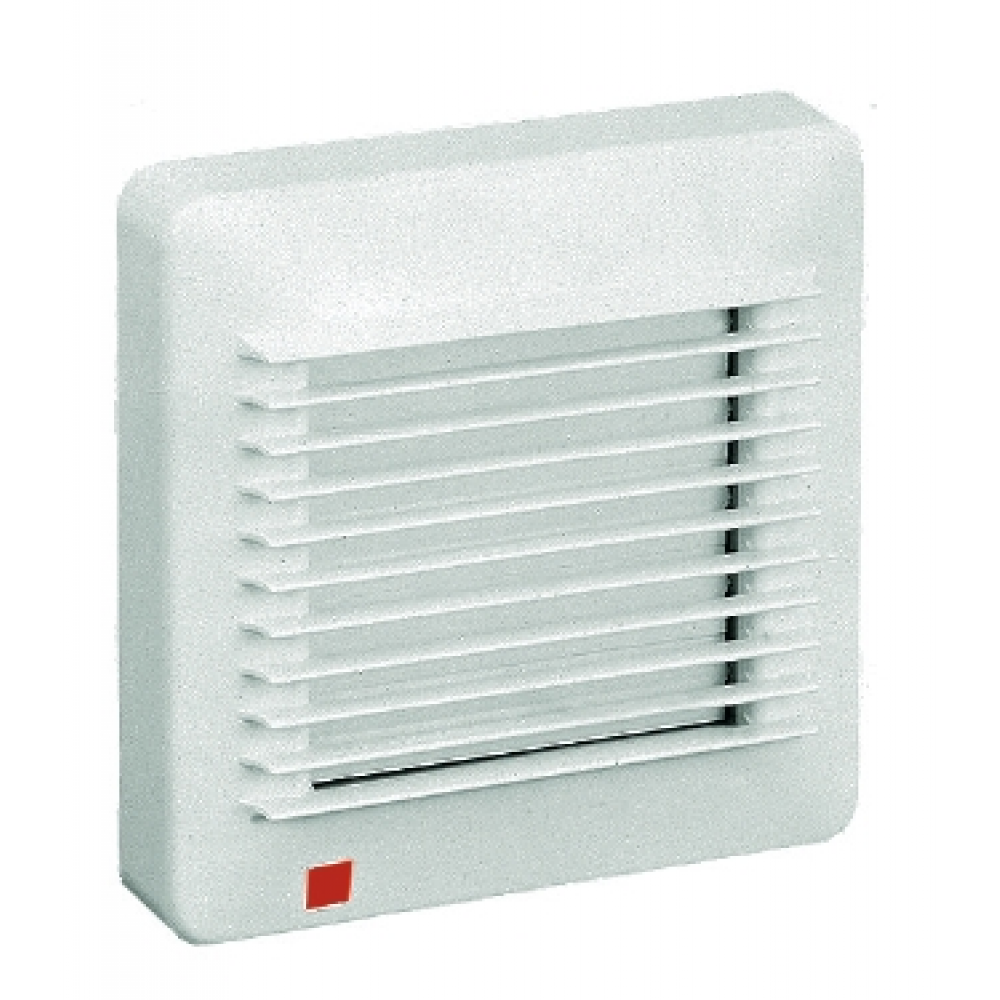

Cabinet
The cabinet is made of high quality impact resistant plastic, the color is white. The cabinet for wall mounting.
Running wheel
The impeller is axial made of high quality impact resistant plastic. It has nine aerodynamically and performance optimised blades. It is secured on the shaft by an anti-slip steel spring.
Motor
The motor is asynchronous with shorted armature and shielded pole, for continuous operation. The maximum operating ambient temperature is 40 °C. The winding is protected against condensation by an additional cover. The motor has overload protection and double insulation. Protection rating IP44, version H IP40, version 12 V IP57.
Square box
The terminal box is accessible by removing the front grille of the fan. Connection is by cable under plaster or after plastering. The terminal block includes a relief clip to prevent the cable from being pulled out.
Speed control
Speed control by changing the voltage with special regulators.
Noise
The noise emitted by the fan is measured at a distance of 1.5 m in the axis of the fan on the suction side.
Variants
S - basic version
Z - ball bearings
C - version with automatic electric return damper (delayed by approx. 45 s)
T - delayed time approx. 4-8 minutes
R - adjustable time 2-20 minutes
E - built-in light-responsive sensor
H - adjustable hygrostat
VM - window version with pull switch
12V - IP57 safe voltage version
Mounting
Mounted horizontally and vertically, preferably with the motor axis in horizontal position with regard to bearing life. Unrestricted "Z" version. Fixing with four screws under the fan grille. Screws and dowels included.
Instructions
The fans are suitable for short ducts with very low pressure drop or for ventilation through a wall. The fans can be used in conjunction with a HIG 2 hygrostat or a hygrostat combined with a thermostat for ventilation of wet areas. Variants R and T can be activated by push button.
Parametry
| Základní údaje | |
|---|---|
| Fan type | Axial |
| Mounting | Wall and ceiling |
| Weight [kg] | 0,48 kg |
| Připojení | |
| Connection pipe diameter [mm] | 100 mm |
| Elektrické parametry | |
| Power supply [V] | 230 V |
| Ingress Protection | IP44 |
| Engine type | AC |
| Maximum power [W] | 13 W |
| Vybavení | |
| Ball bearings | Yes |
| Check valve | No |
| Delayed run-down | No |
| Adjustable coasting | Yes |
| Hygrostat | No |
| Motion sensor | No |
| Adjustability | Yes |
| Adjustability | No |
| Particle filter | No |
| More intake ports | No |
| Sound insulation | No |
| Další | |
| Max. air temperature [°C] | 40 °C |
| Maximum speed [min⁻¹] | 2 450 min⁻¹ |
Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:
• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.
