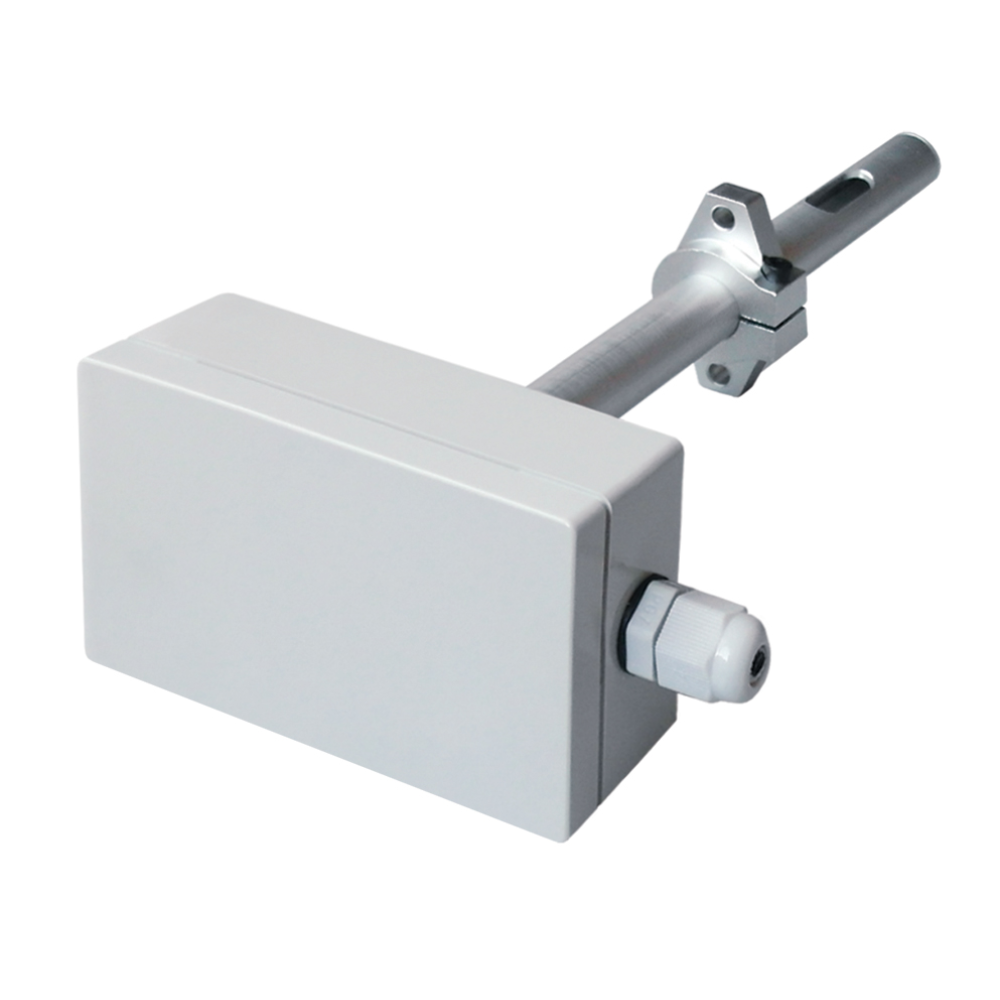

EDF-CO2-GD2 channel sensor CO2

Duct sensors for measuring CO₂ concentration, temperature and/or relative humidity
Read more
B2B clients will see their prices after logging in
7 228,00 CZK excl. VAT
8 745,88 CZK incl. VAT
Availability: In stock [15.5.2024, 16:10] Update

Add to project
Share

Add to project
Share
Product code: PX102100055
Product description

It is used to measure the concentration of CO2 in the air duct. Suitable for air quality control systems, ventilation and heat recovery systems in restaurants, shops, offices, apartments, etc.

- Voltage 12-35 V DC, 12-24 V AC
- Power consumption 1.5 W
- Measuring range 400-1000 ppm, ±40 ppm + ±4% of the value
- Measuring range 400-2000 ppm, ±40 ppm + ±4% of the value
- Measuring range 400-5000 ppm, ± 60 ppm + ±4 % of value
- NDIR principle optical sensor

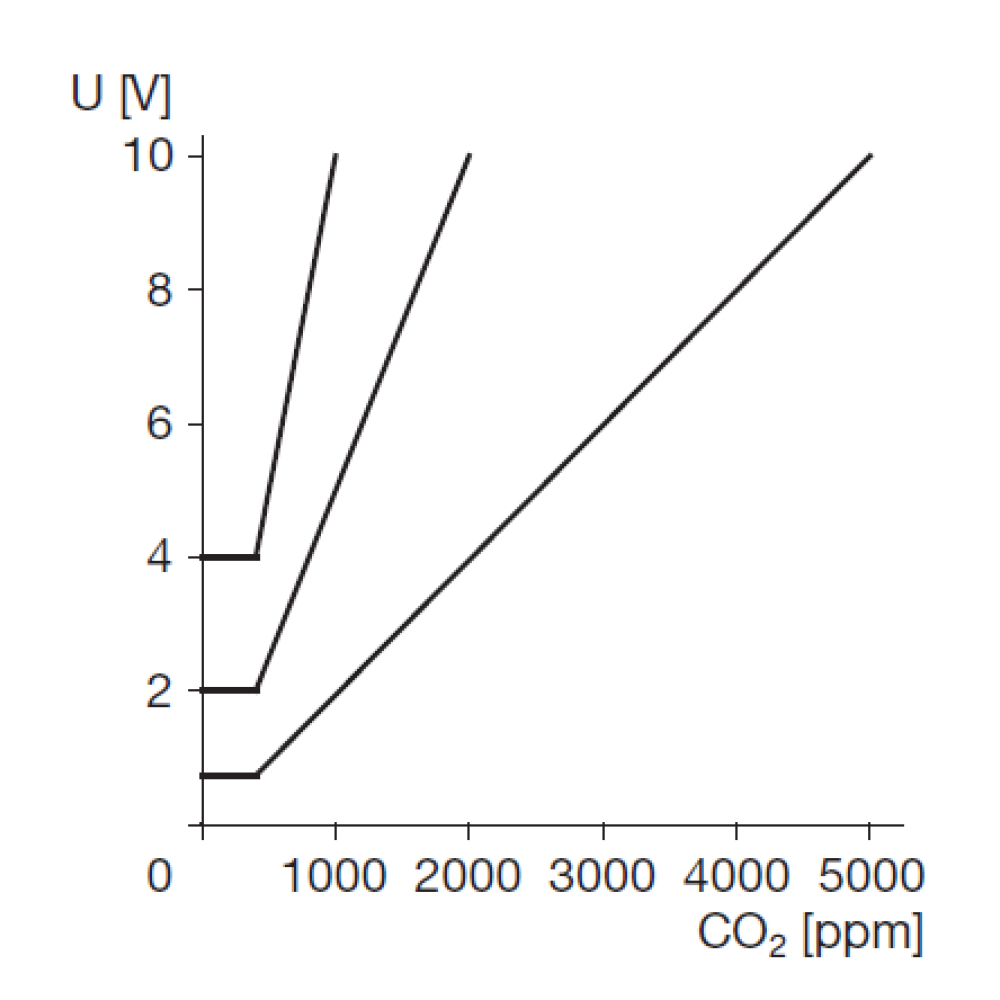

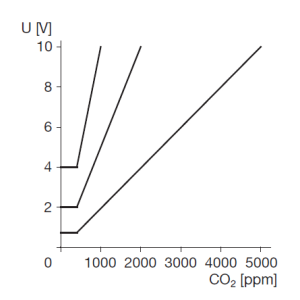

- 0-10 V analog output
- easy mounting on air duct
- factory calibration, long service life
- operating temperature 0-50 °C
- dimensions 252 x 120 x 80 mm (W x H x D)
- on request, the sensor can be supplied in RH or iVOC measuring versions
- output relay - switching contact

Full description
Downloads
Technical sheets, manuals and declarations
Catalogue sheet .pdf (463.17 kB)
