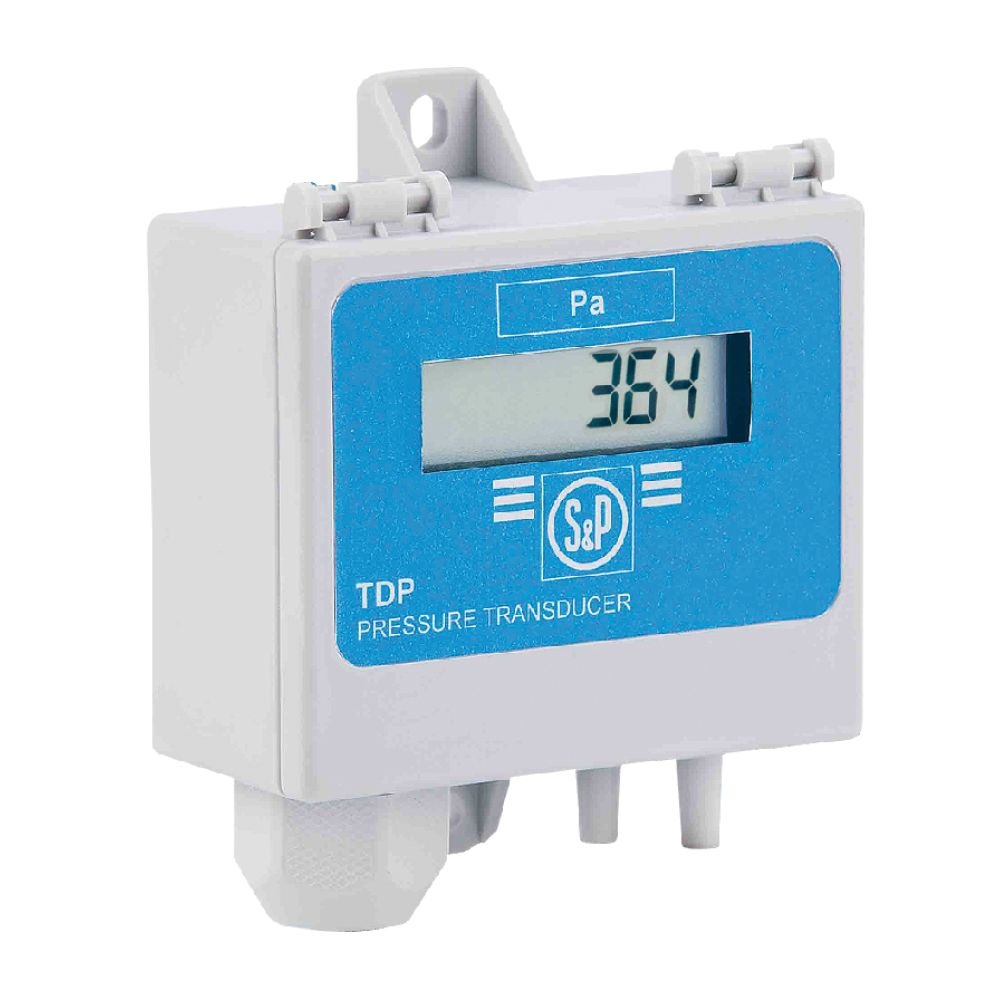

TDP-D air pressure sensor

Pressure sensors
Read more
B2B clients will see their prices after logging in
9 736,00 CZK excl. VAT
11 780,56 CZK incl. VAT
Availability: on request [28.4.2024, 04:10] Update

Add to project
Share

Add to project
Share
Product code: SP600100199
EAN: 8413893270474
Product description
Information

- TDP-S differential pressure sensor, which is suitable e.g. for indicating clogging of air filters etc.
- TDP-D differential pressure sensor with display, which is suitable e.g. for indicating clogging of air filters etc.
- TDP-PI differential pressure transmitter with display and integrated PI control for setting the desired operating point, which allows direct control by a 0-10 V output signal (suitable for Ecowatt fans or VFTM and VFVN frequency converters)
- 2 m hose with Ø 7 mm included

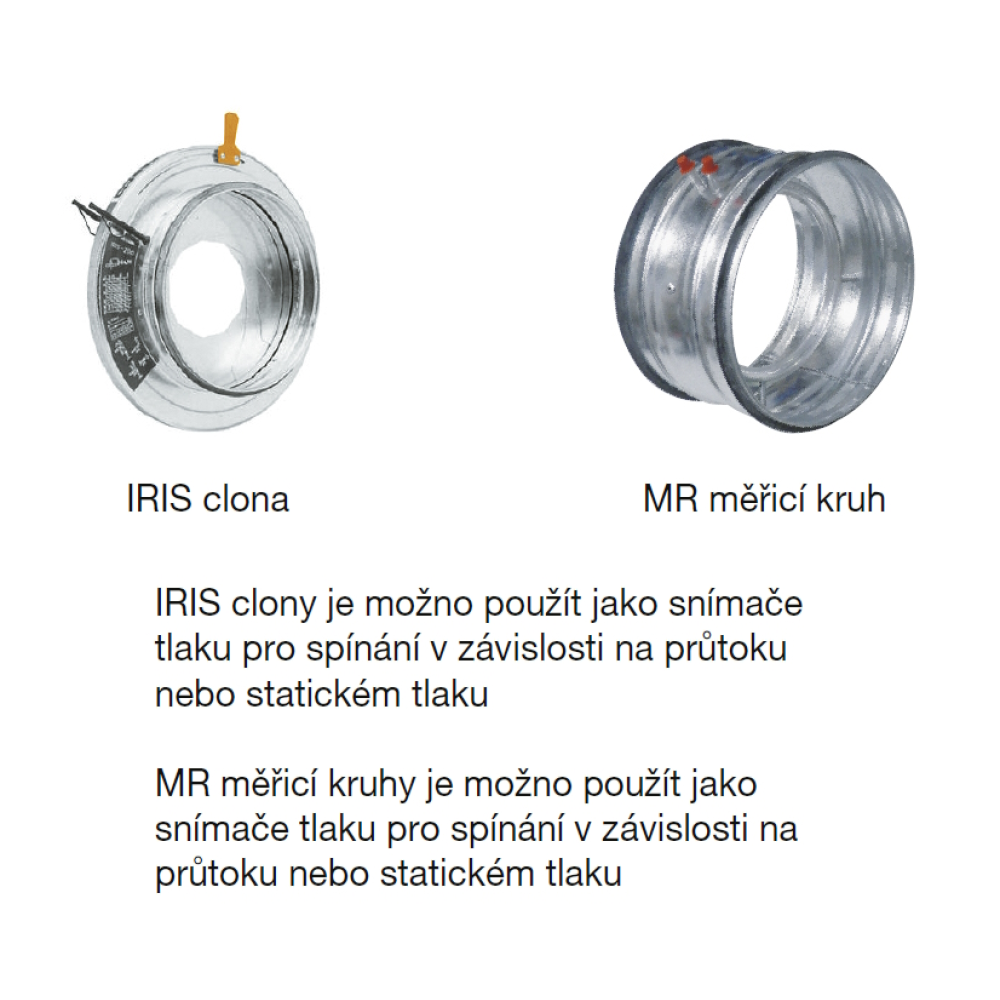

IRIS orifices can be used as pressure sensors for flow or pressure measurement.
MR measuring rings can be used as pressure sensors for flow or pressure measurement.

Full description
Downloads
Technical sheets, manuals and declarations
Datasheet .pdf (92.66 kB)
Declaration of conformity .pdf (348.00 kB)
