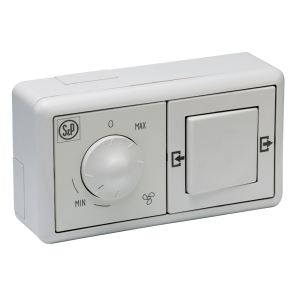

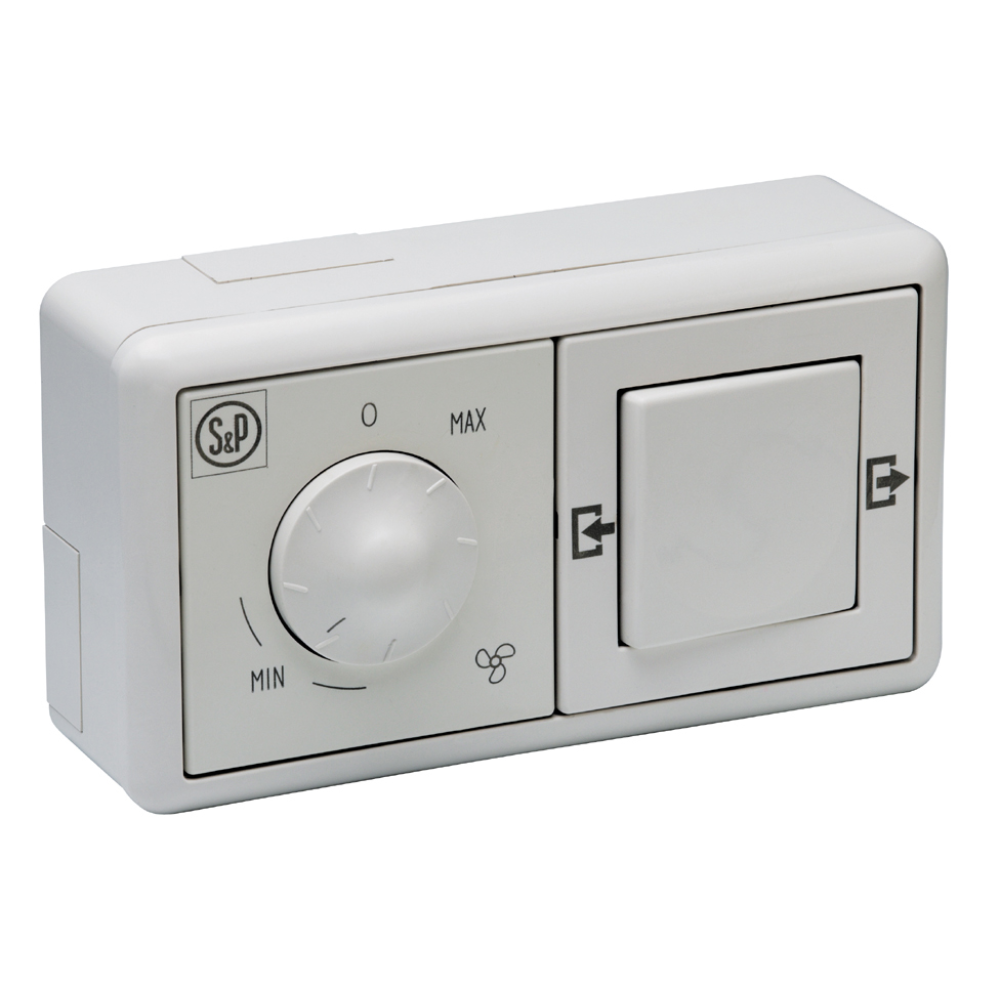

REB 1 R speed controller

Electronic speed controllers
Read more
B2B clients will see their prices after logging in
4 642,00 CZK excl. VAT
5 616,82 CZK incl. VAT
Availability: In stock [29.4.2024, 04:10] Update

Add to project
Share

Add to project
Share
Product code: SP600101010
EAN: 8413893140371
Product description
Information

- for HV 230AE and HV 300AE fans for switching the direction of rotation, switching on or off and speed control
- voltage - 230 V/50 Hz
- current - 1 A
- protection IP40
- double insulation
- dimensions 160×88×58 mm (W×H×D)

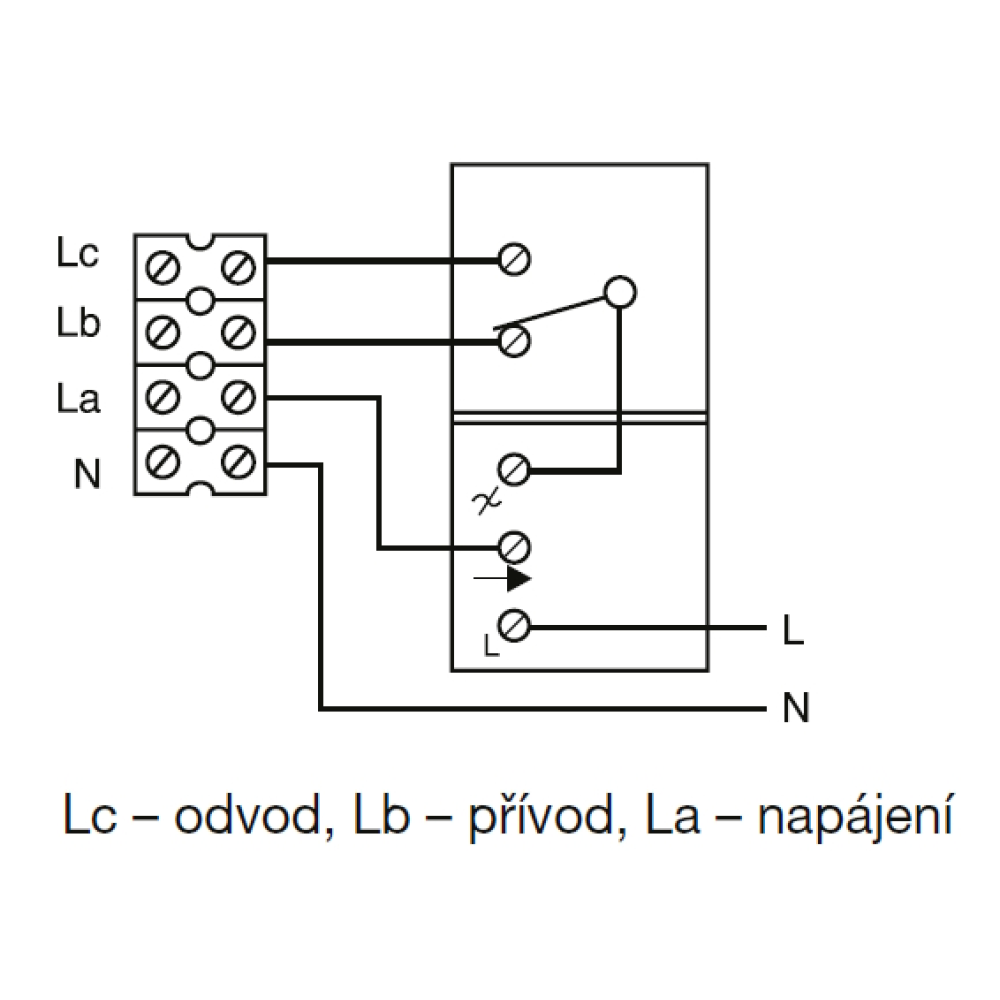

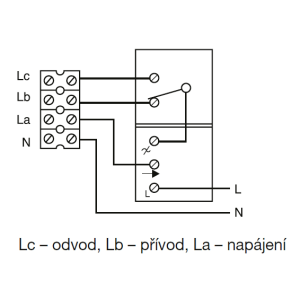

For wiring details, please refer to the HV fan user manual.

Full description
Downloads
Technical sheets, manuals and declarations
Datasheet .pdf (105.73 kB)
Operating Instructions .pdf (143.52 kB)
