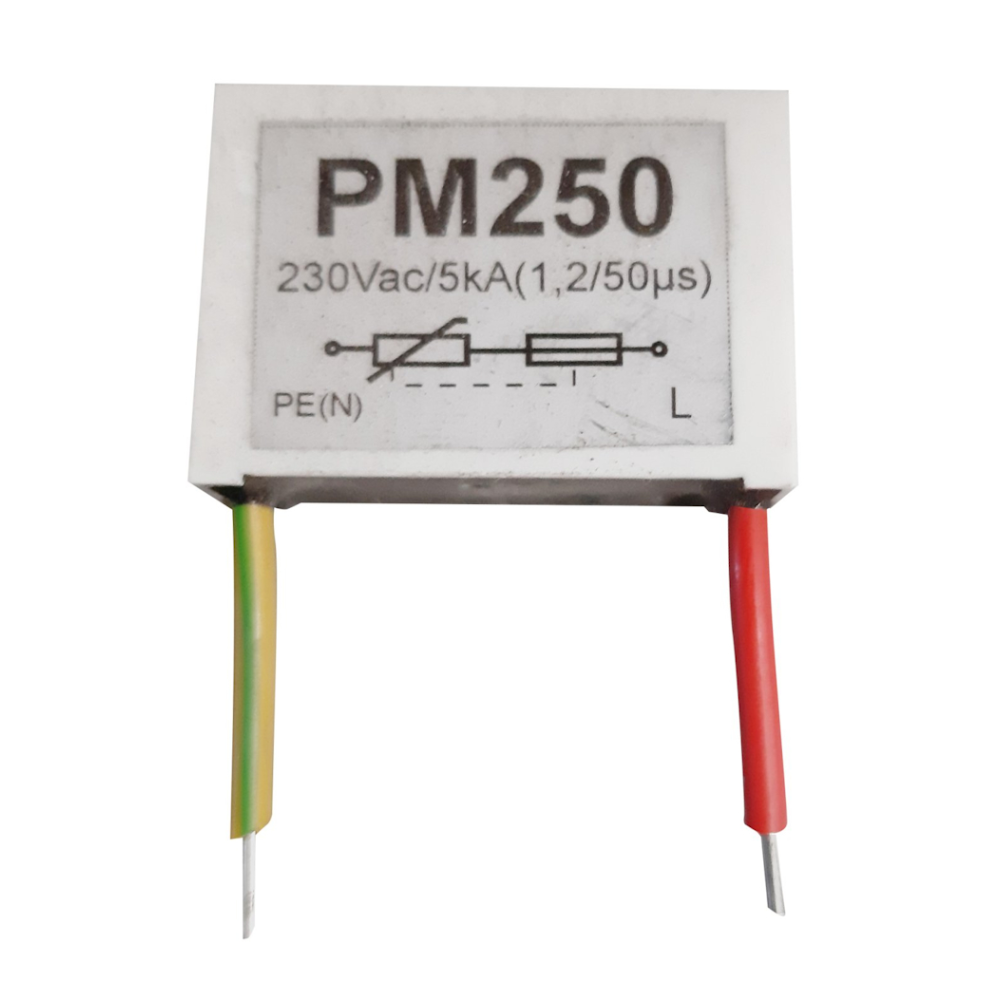

PM 250 over-voltage relay

Surge protectors
Read more
B2B clients will see their prices after logging in
193,00 CZK excl. VAT
233,53 CZK incl. VAT
Availability: In stock [4.5.2024, 04:10] Update

Add to project
Share

Add to project
Share
Product code: ED203100080
Product description
Information

- overvoltage protection for fans containing a delayed damper opening or a time switch with PTC element
- rated voltage 230 V/50 Hz
- ambient temperature 0-50 ˚C
- is built in a plastic housing that can be placed under the switch
- has a non-reversible overload fuse
- IP40 protection

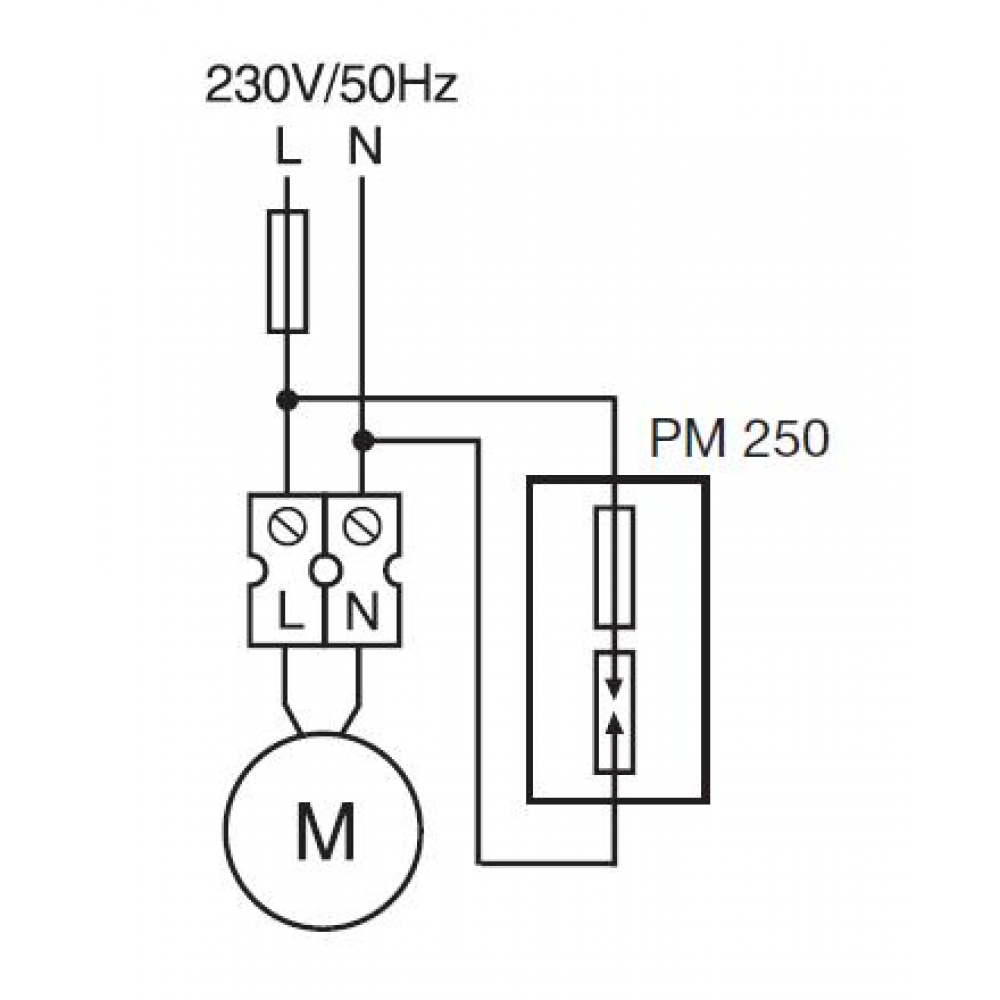

Used when fans are connected together with fluorescent lamps without compensation capacitors, which produce high overvoltages in the installation. These overvoltages of 2-6 kV will normally destroy the built-in PTC members of the fan. It is mounted between zero and the control phase.

Full description
Downloads
Technical sheets, manuals and declarations
Datasheet .pdf (78.58 kB)
