Cabinet
The cabinet is made of steel sheet powder-coated in white (RAL 9003), the connecting elements are additionally electroplated.
Fans
Special quiet tangential fans are used in the door screens.
Motor
The motor is asynchronous with short armature.
Heater
The boat is without heater.
Electric connection
The electrical connection is made to the internal terminal block in the door screen housing. Models with an electric heater are equipped with thermal protection as standard.
Regulation

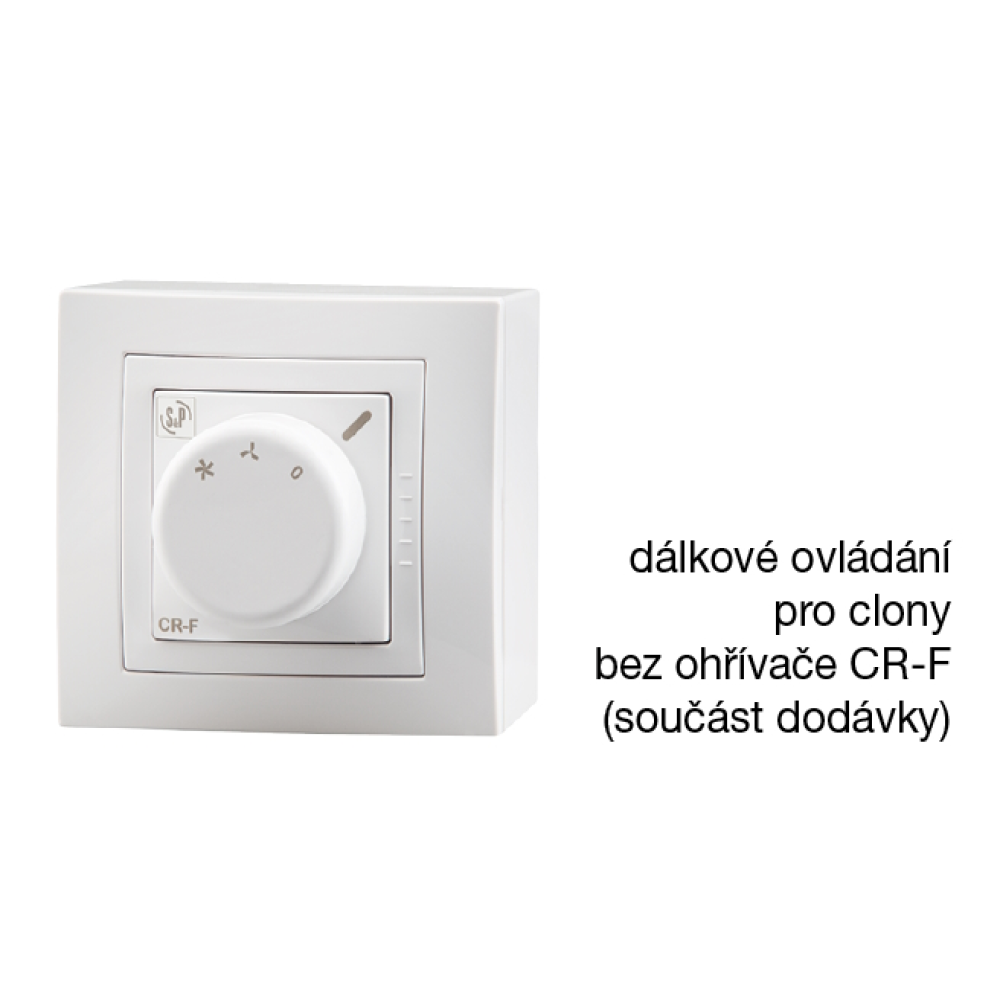

Regulation of screens without a heater is carried out with the wall-mounted CR-F controller, which is included with the screen. The regulator can be used to switch the speed in two stages. In the case of multiple apertures side by side, up to 5 identical apertures can be connected to one controller.
Noise
All models feature low noise levels due to the balanced impeller.
Variants
- COR-F-1000 N - without heater
- COR-F-1500 N - without heater
- COR-F-2000 N - without heater
- COR-3,5-1000 N - with el. 3,5 kW heater
- COR-6-1000 N - with el. 6 kW heater
- COR-9-1000 N - with el. 9 kW heater
- COR-9-1500 N - with el. 9 kW heater
- COR-12-1500 N - with el. 12 kW heater
- COR-18-2000 N - with el. 18 kW
- COR-1000 NW 9 - with water heater 9 kW
- COR-1500 NW 15 - with water heater 15 kW
- COR-2000 NW 24 - with water heater 24 kW
Mounting
Clones can be mounted directly on the wall or suspended from the ceiling with M8 threaded rods. The minimum height should be 1.8 m and the maximum 3 m above the floor. The minimum distance from the ceiling or walls must be 100 mm.
Information
An air door screen in a compact design with easy installation suitable for small commercial premises. Multiple screens can be arranged side by side if required.
