Enter any pipe size at the inlet or discharge.

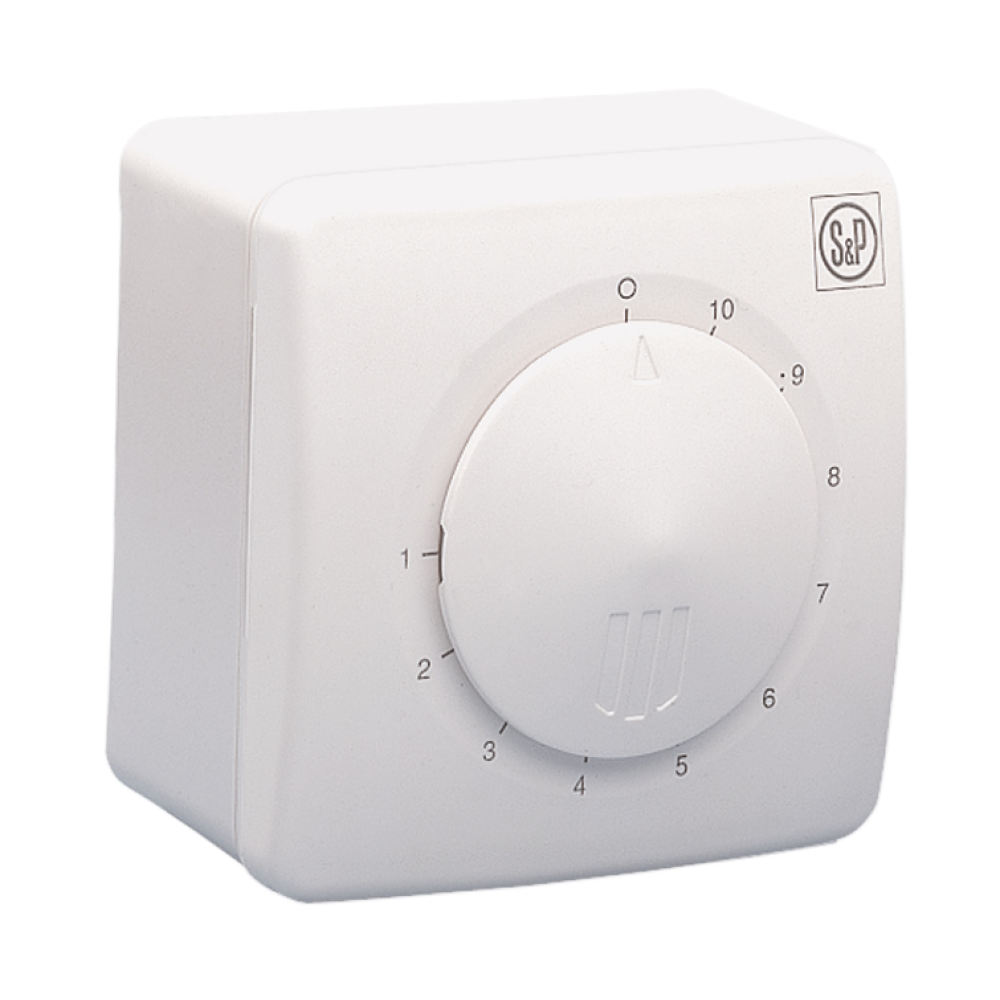

REB 1 N speed controller

Electronic speed controllers
Read more
B2B clients will see their prices after logging in
3 051,00 CZK excl. VAT
3 691,71 CZK incl. VAT
Availability: In stock [2.8.2025, 04:10] Update

Add to project
Share

Add to project
Share
Product code: SP600100090
EAN: 8413893076793
Manufacturer: S&P SISTEMAS DE VENTILACIÓN, S.L.U.   Read moreRead less

S&P SISTEMAS DE VENTILACIÓN, S.L.U.
Llevant, 4
Polígono Industrial Llevant
08150 Parets del Vallès
Barcelona – Spain
consultas[zav]solerpalau[teč]com
www.solerpalau.com/en-en/home

Product description

Speed regulators in 230 V / 50 Hz according to type 1-2.5 A

Plastered version:
- REB 1 N
- REB 2.5 N
- Dimensions 80 × 80 × 68 mm (W × H × D)

Plastered version:
- REB 1 NE
- REB 2.5 NE
- dimensions 80 × 80 × 22 mm (W × H × D)

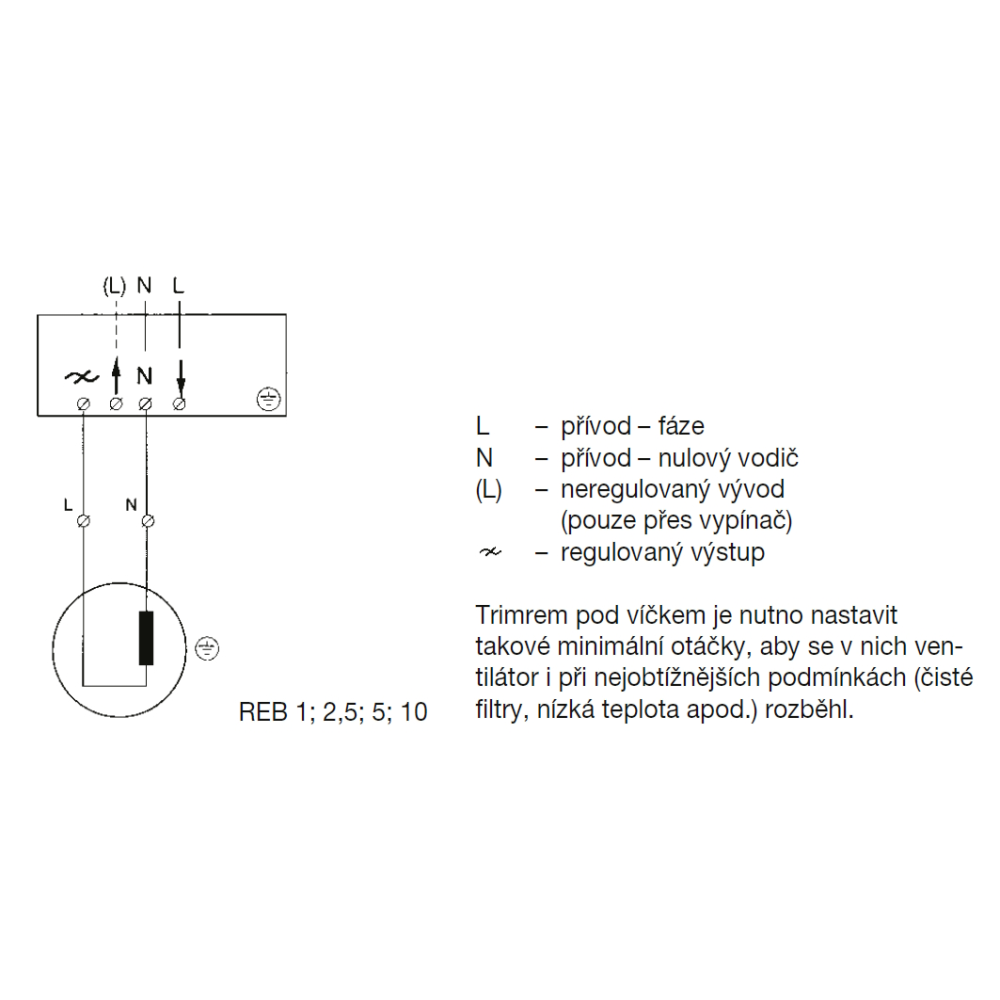

The single-phase triac controller is used for continuous fan speed control and as a switch. The minimum fan speed can be adjusted by turning the control element after removing the cover. Protection IP44, operating temperature 0-40 ºC.

WARNING

The regulator can cause intense parasitic motor noise, especially at low speeds. Then a transformer regulator must be used.

Installation

REB 1 NE, REB 2.5 NE can be installed in a standard 68 mm diameter round wall box.

Full description
Safety regulations

Adherence to these instructions should not pose any safety, health or environmental risks in accordance with EC directives (CE marked). The same applies to other products used in the device or during installation. Consider the following warnings:

• Observe the safety instructions to prevent damage to the device or personal injury.
• The technical information in this manual must not be changed.
• It is forbidden to interfere with the motor of the device.
• In order for the device to comply with EC directives, the device must be connected to the mains in accordance with the applicable regulations.
• The device must be installed in such a way that under normal operating conditions it cannot come into contact with any moving part and / or live part.
• The device complies with the applicable regulations for the operation of electrical equipment.
• Always disconnect the device from the power supply before carrying out any work on it.
• Appropriate tools must be used when handling or maintaining the device.
• The device must only be used for the purposes for which it is intended.
• This appliance is not intended for use by children under 8 years of age and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person. The user must ensure that children do not play with the device. Cleaning and maintenance of the appliance must not be carried out by children without supervision.

Downloads
Technical sheets, manuals and declarations
Datasheet .pdf (58.47 kB)
Instructions .pdf (143.52 kB)
Declaration of conformity .pdf (350.42 kB)
